CX400 M4 Disassembly and Recycling Instructions 15
Disassembly and recycling
Removing the midplane cover 2

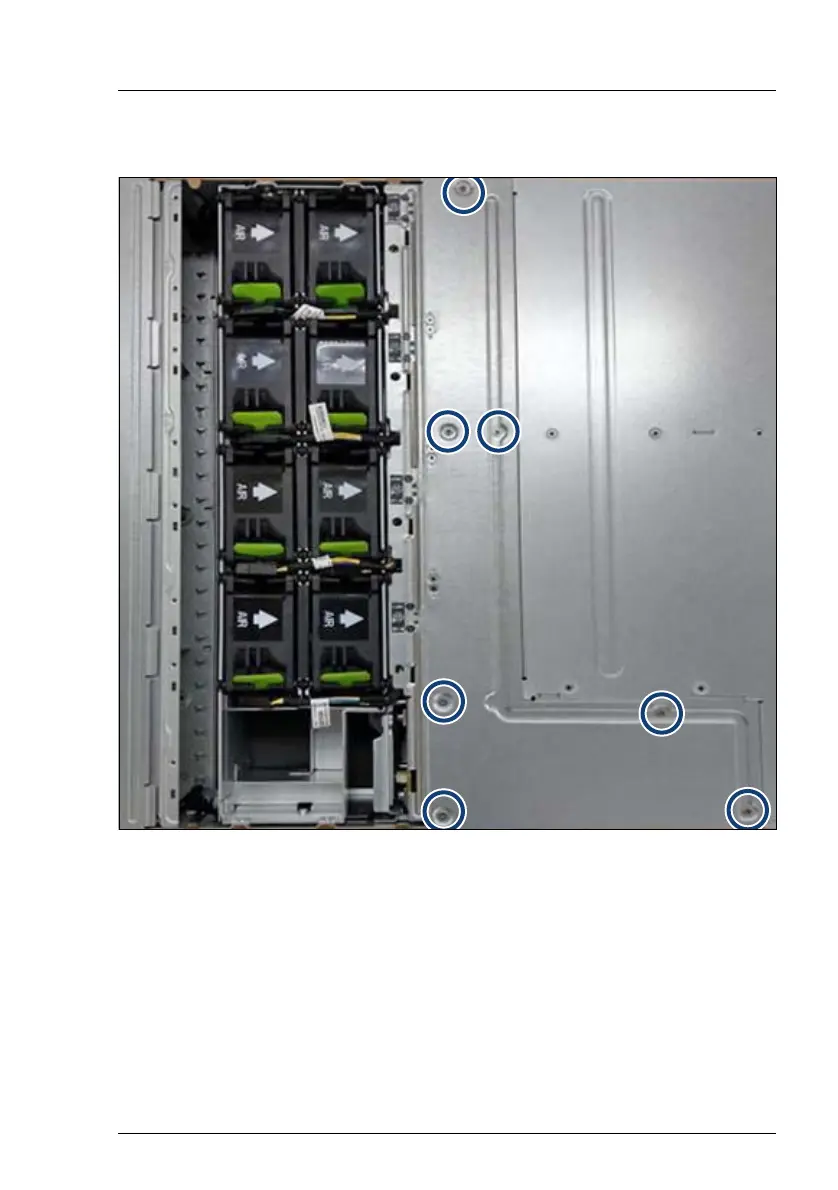

Figure 8: Removing the midplane cover 2 from the chassis
Ê Remove seven screws from the midplane cover 2 (see circles)
Ê Remove the midplane cover.
