FulTyme RV 1300 - Diagram and Parts List; Product Diagram; Part List

8

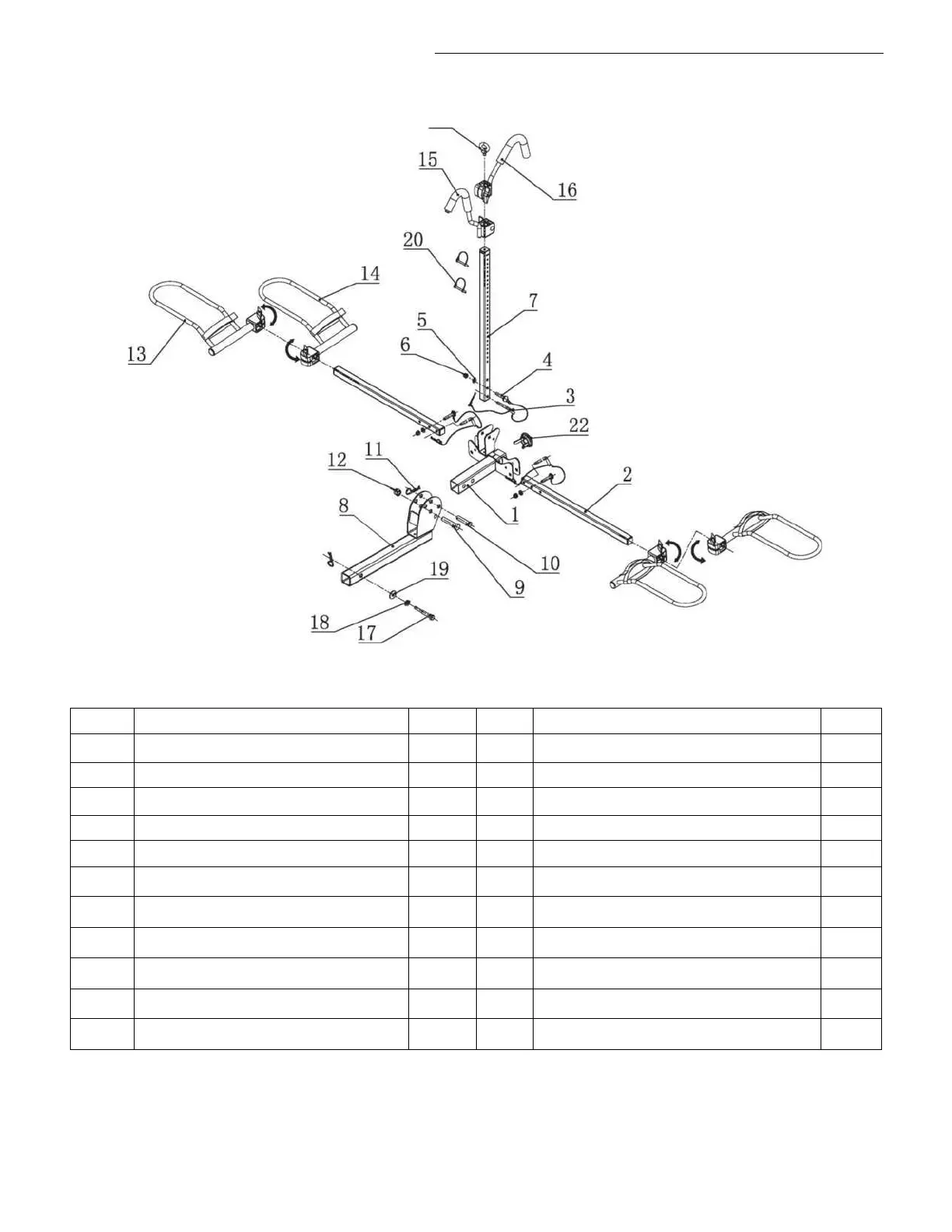

Diagram
21
Part List
Part#
Description
Q'ty
Part#
Description
Q'ty
1
Support Base assembly
1
12
M16 LOCKNUT
1
2
Horizontal arm
2
13
Left cradle assembly
2
3
L Pin
3
14
Right cradle assembly
2
4
M10 CARRIAGE BOLT
3
15
Long J-hook assembly
1
5
M10 flat washer
3
16
Short J-hook assembly
1
6
M10 LOCKNUT
3
17
Stabilizing Pin
1
7
Vertical arm
1
18
1/2" Spring Washer
1
8
Folding Shank
1
19
VT Flat Washer
1
9
M16 BOLT
1
20
Snap pin
2
10
5/8 “ pin
1
21
Eye bolt
1
11
Clip
2
22
Reflector
1
