10

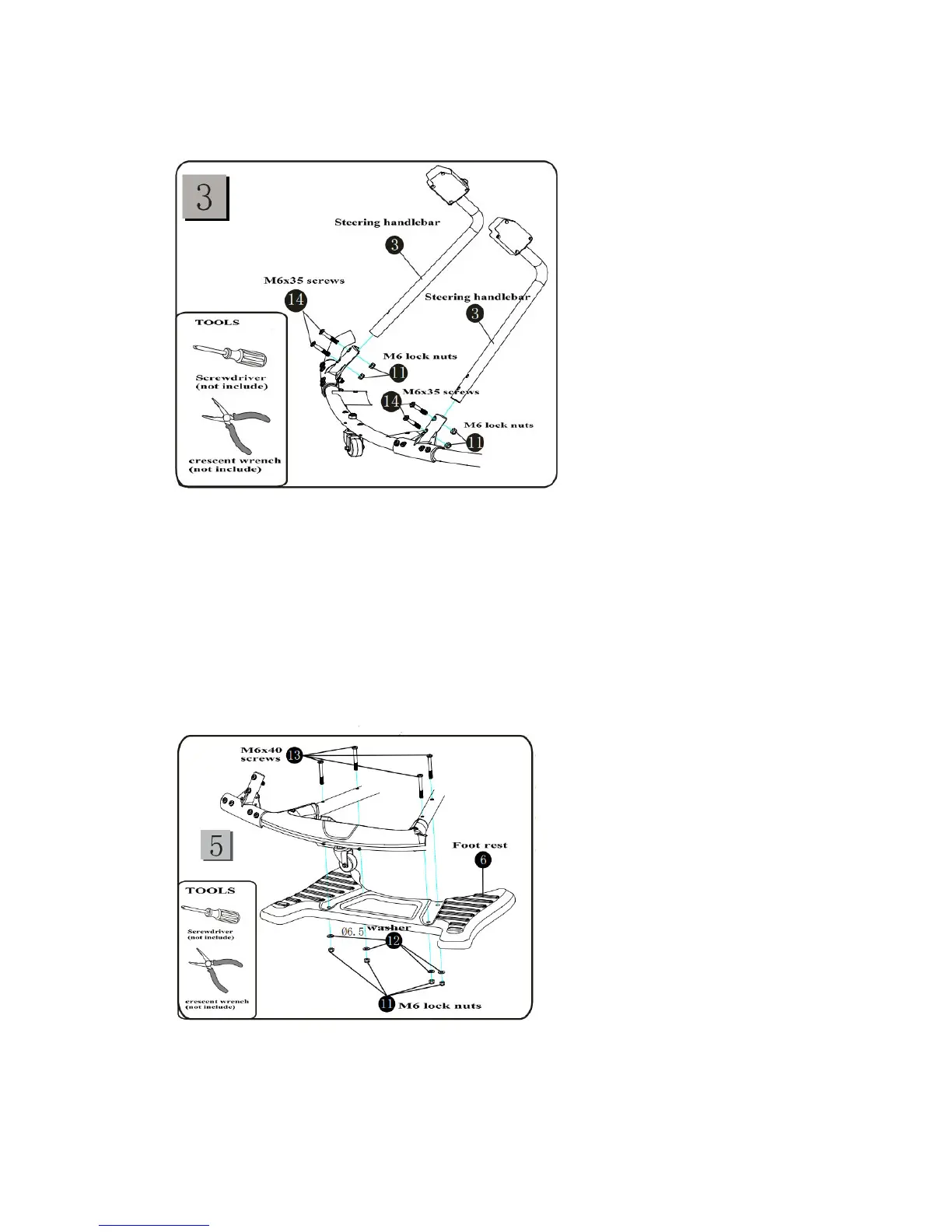

ASSEMBLE THE HANDLEBAR
● Remove the M6x35 screws on the three direct links
● Fit the steering handlebar onto the three direct links, lock them with M6x35 and
M6 lock nut
● Fix the M6 lock nut with crescent wrench, tighten the M6x35 screws with
screwdriver.
ASSEMBLE THE FOOT REST
● Remove all the screws, lock nuts and washers on the foot rest
● Through the screws from seat support to the foot rest
