FUNAI DPVR-2600 - Page 15

1-6-4 H9300DC
[10] Main CBA
[12] AFV CBA
[11] Function CBA
(S-10)
[9] Deck
Assembly
FE Head
Cylinder Assembly
AC Head
Assembly
LD-SW
Pin
Hole
Hole
Shaft
Cam Gear
[10] Main CBA
[9] Deck Assembly
[10] Main CBA
SW507
LD-SW
Pin
Desolder
Desolder
Desolder
Desolder
Desolder
BOTTOM VIEW
From
FE Head
From
Cylinder
Assembly
From
AC Head
Assembly
Lead with
blue stripe
Lead with
blue stripe
From
Capstan
Motor
Assembly

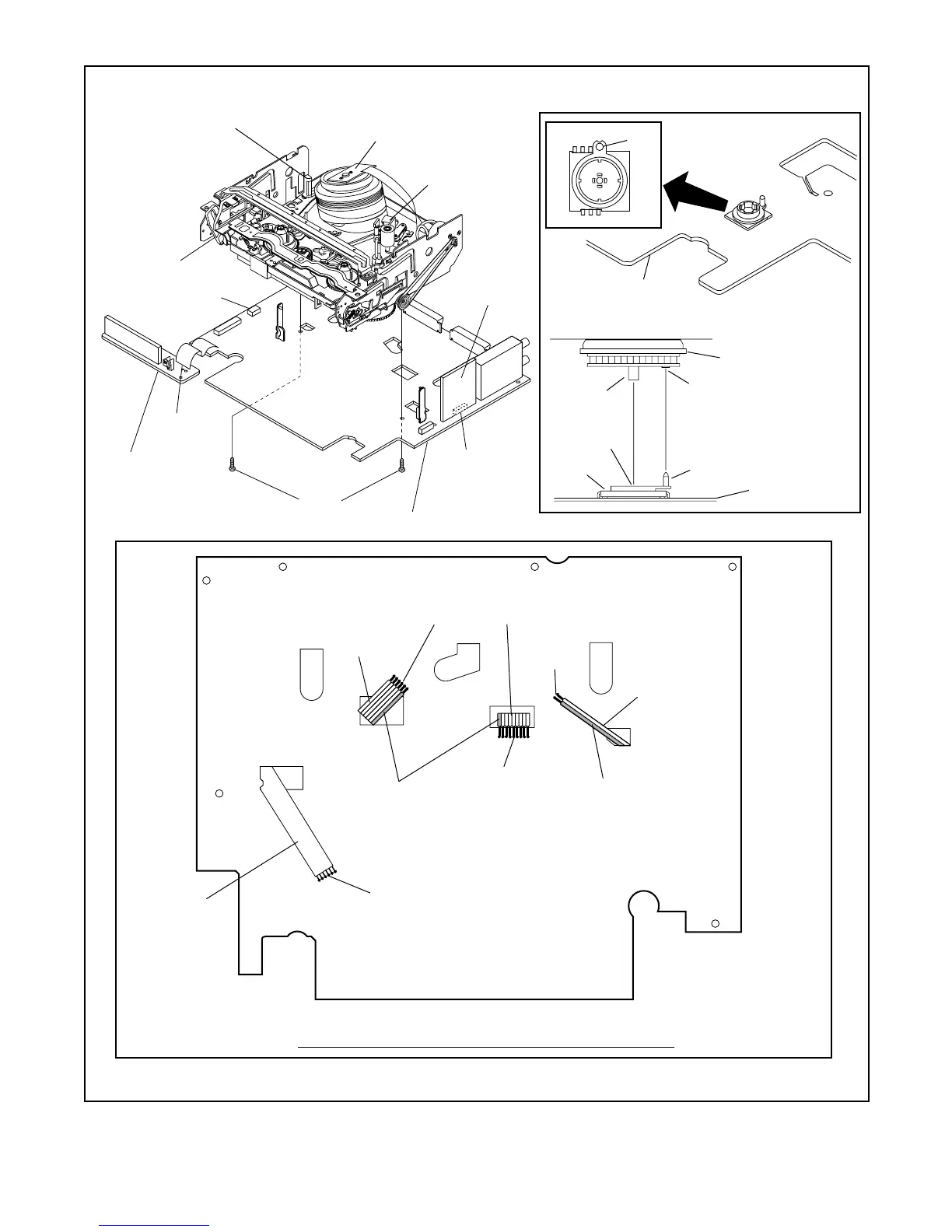

Lead connections of Deck Assembly and Main CBA
CN2002
Desolder
from bottom
Fig. D8
