FUNAI DPVR-2600 - Waveforms

1-11-1 H9300WFP
WF1
V-OUT E-E
10usec 50mV x 10

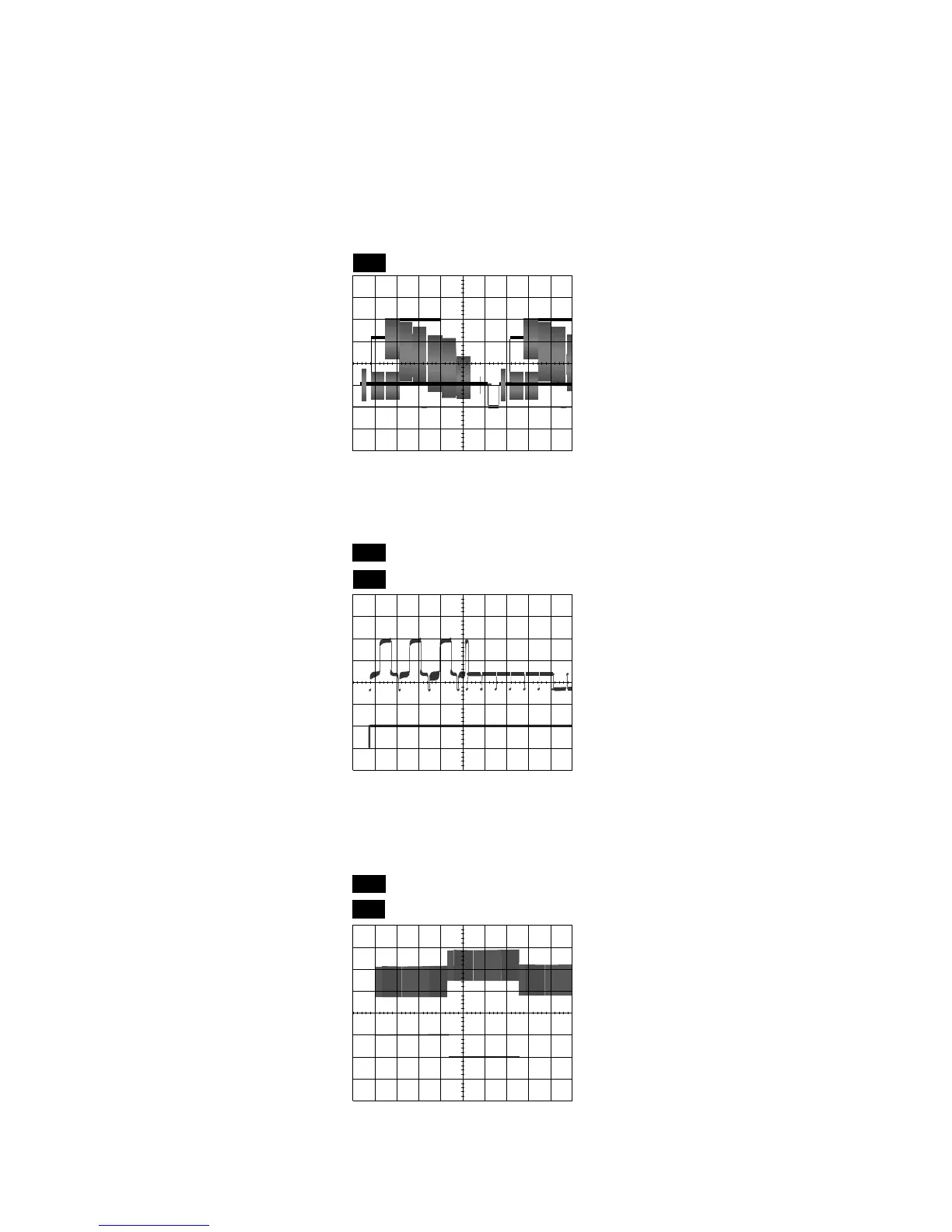

WAVEFORMS
(TP751 of Main CBA)
WF1
UPPER
WF2
LOWER
V-OUT 0.1V x 10
RF-SW 0.5V x 10
50usec
(TP751 of Main CBA)
(TP302 of Main CBA)
WF5
C-PB 10mV x 10
RF-SW 0.5V x 10
5msec
UPPER
LOWER
WF2
(TP302 of Main CBA)
(TP301 of Main CBA)
