FUNAI DPVR-2600 - Page 31

1-10-3 1-10-4
1-10-5
H9300SCM1

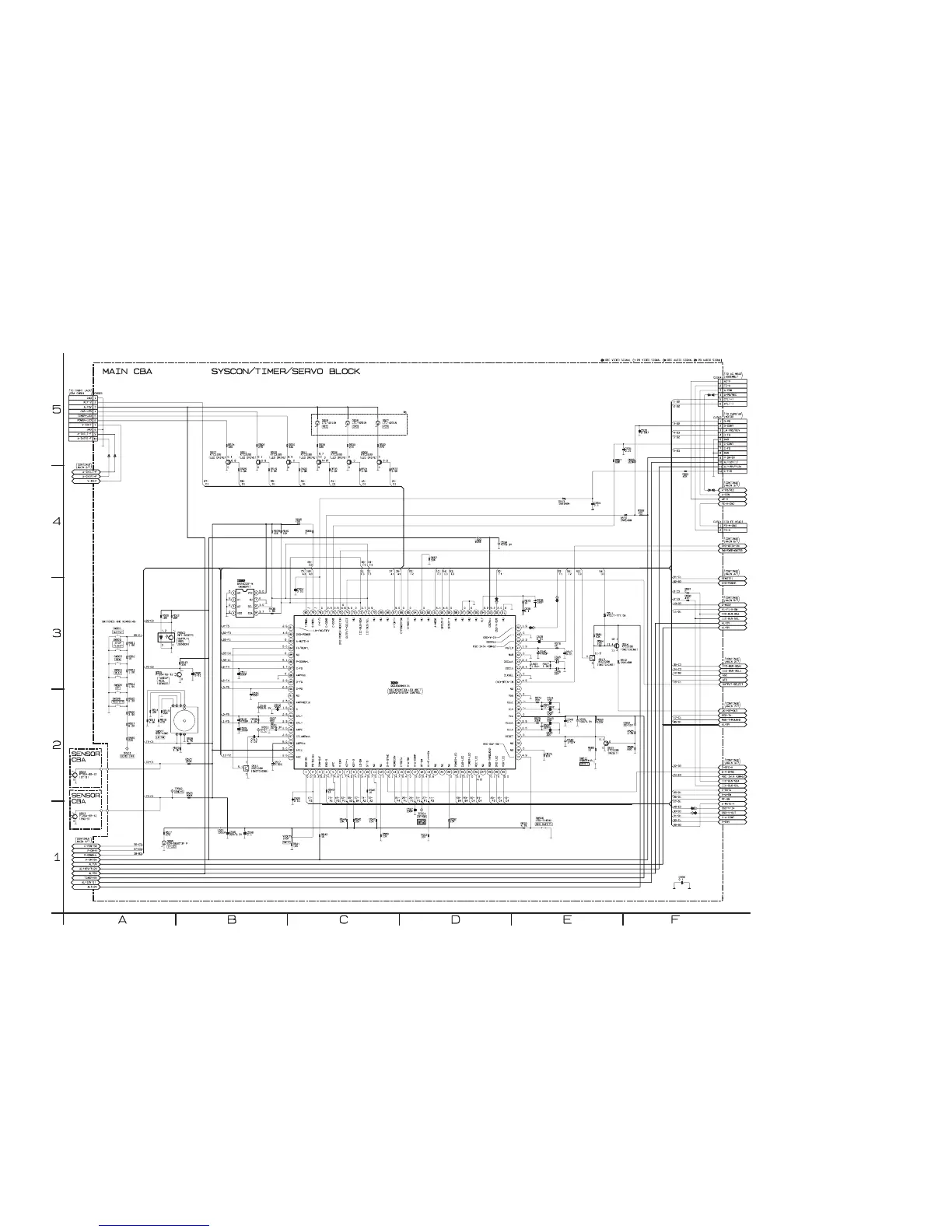

Main 1/7 Schematic Diagram < VCR Section >
Note:
When it is necessary to replace one or more of the following Diodes,
all three should be replaced: D506, D507, D508.
*
