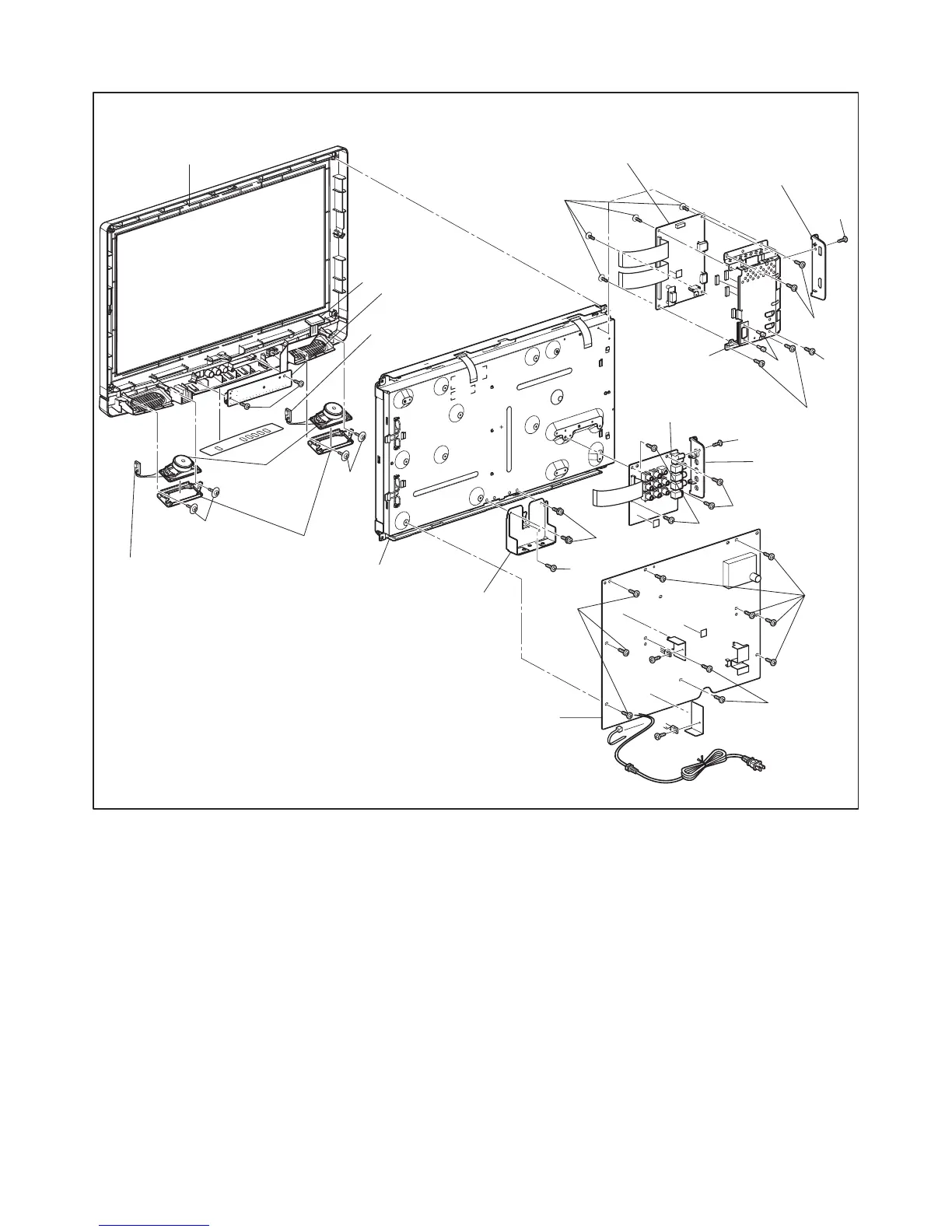

FUNAI LC195SLX - Page 15

4-3 A91N3DC
(S-5)
(S-11)
(S-9)
(S-10)
(S-10)
[6] Jack CBA
[4] Digital Main
CBA Unit
[8] Stand Holder
[7] Main CBA
[9] LCD Module Assembly
[14] Junction-A
CBA
[12] Junction-C
CBA
[13] Junction-B
CBA
[15] Function CBA
[16] Front Cabinet
[10] Speaker Holder(s)
[11] Speaker(s)
[3] Jack Holder(D)
[5] Jack
Holder(A)
(S-11)
(S-13)
(S-14)
(S-14)
(S-12)
Shield Box
(S-6)
(S-6)
(S-7)
(H-1)
(S-11)
(S-8)
(S-15)
Fig. D2
