Furious FPV Fortini F4 OSD REV.3 User Manual

2
Features
 Built-in OSD
 Built-in Camera OSD Control for FPV camera
 Built-in capacitor 100nF for FOXEER camera
 Add TX3 for F.Port protocol
 Dual camera control and LED Strip port
 Silicone damper for better anti-vibration
 Fortini F4 OSD modifies camera settings by transmitter
 6 UARTs for USB, SBUS, SPORT, TBS Receiver or GPS,Bluetooth,Telemetry VTX
 Separate power supply for gyro with LDO low noise and high accuracy
 Built-in driver inverter for S-Bus and Smart-Port connection directly to FC
 Inrush voltage protection input and output by transient voltage suppressor
 Invensense 20602 gyro for high speed 32khz, lowest noise floor and highest
sensitivity

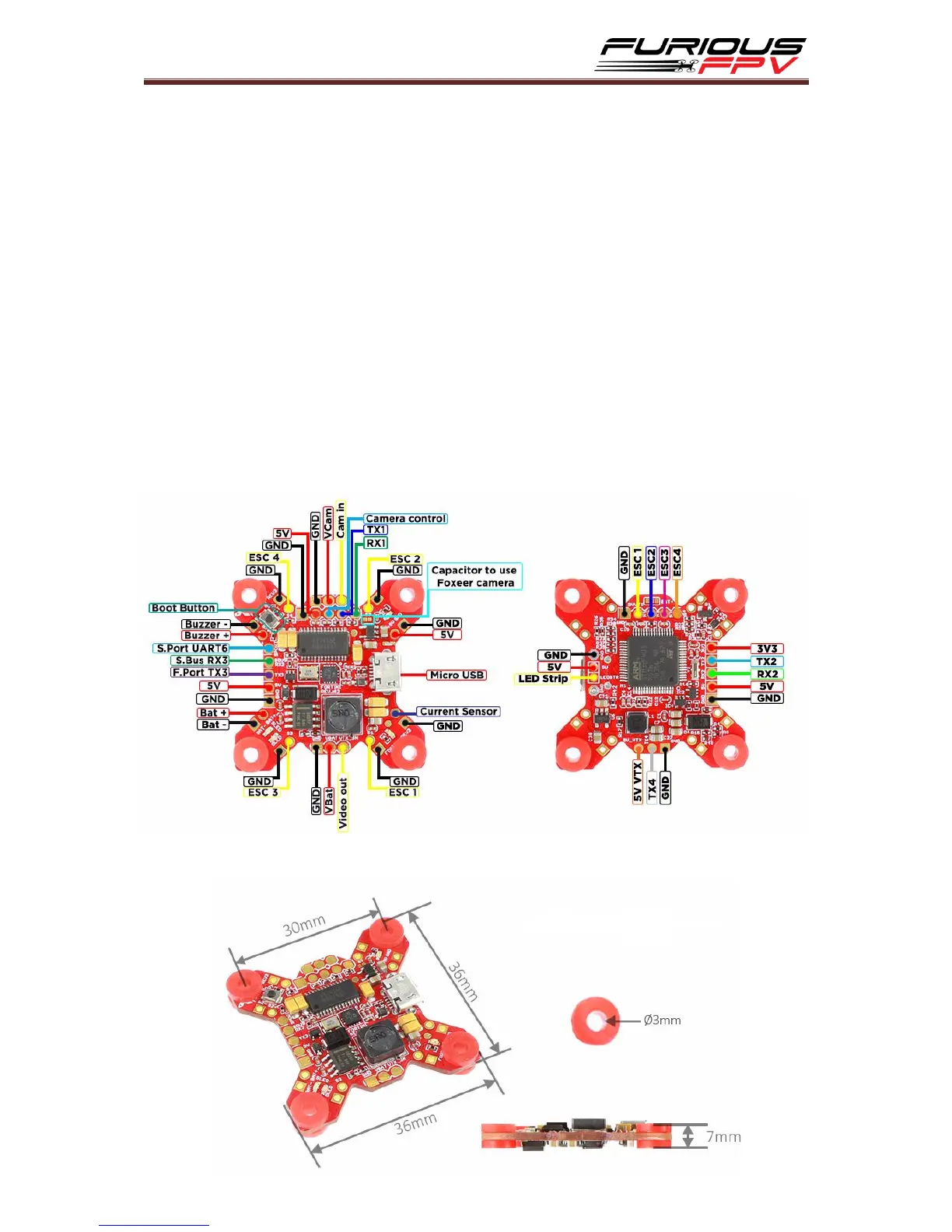

Pinouts
Dimensions

Furious FPV Fortini F4 OSD REV.3 Specifications

General

Brand	Furious FPV
Model	Fortini F4 OSD REV.3
Category	Controller
Language	English
