Furman SPB-8 - Example 5: Mono Pedals, Mono Rack Effects, One Amp

RACK EFFECTS
INPUT OUTPUT
L R
REMOTE MONO EFFECTS
INPUT
AMPLIFIER
LEFT / MONO
RIGHT
FROM GUITAR
TO PEDAL
(INPUT)
AMPLIFIER
RETURN SEND
FROM
(TO AMPLIFIER INPUT)
PEDALS
RACK / EXTERNAL
EFFECTS
SPB-8 STEREO PATCH BAY
PATCH EXAMPLE - 5
INSTRUMENT
OUTPUT
EFFECTS
BOX
OUTPUT INPUT
EFFECTS
BOX
OUTPUT INPUT
AMPLIFIER HEAD WITH
EFFECTS LOOP
SEND RETURN
OUTPUT
INPUT
AMPLIFIER
SEND RETURN
FRONT VIEW
AMPLIFIER REAR VIEW

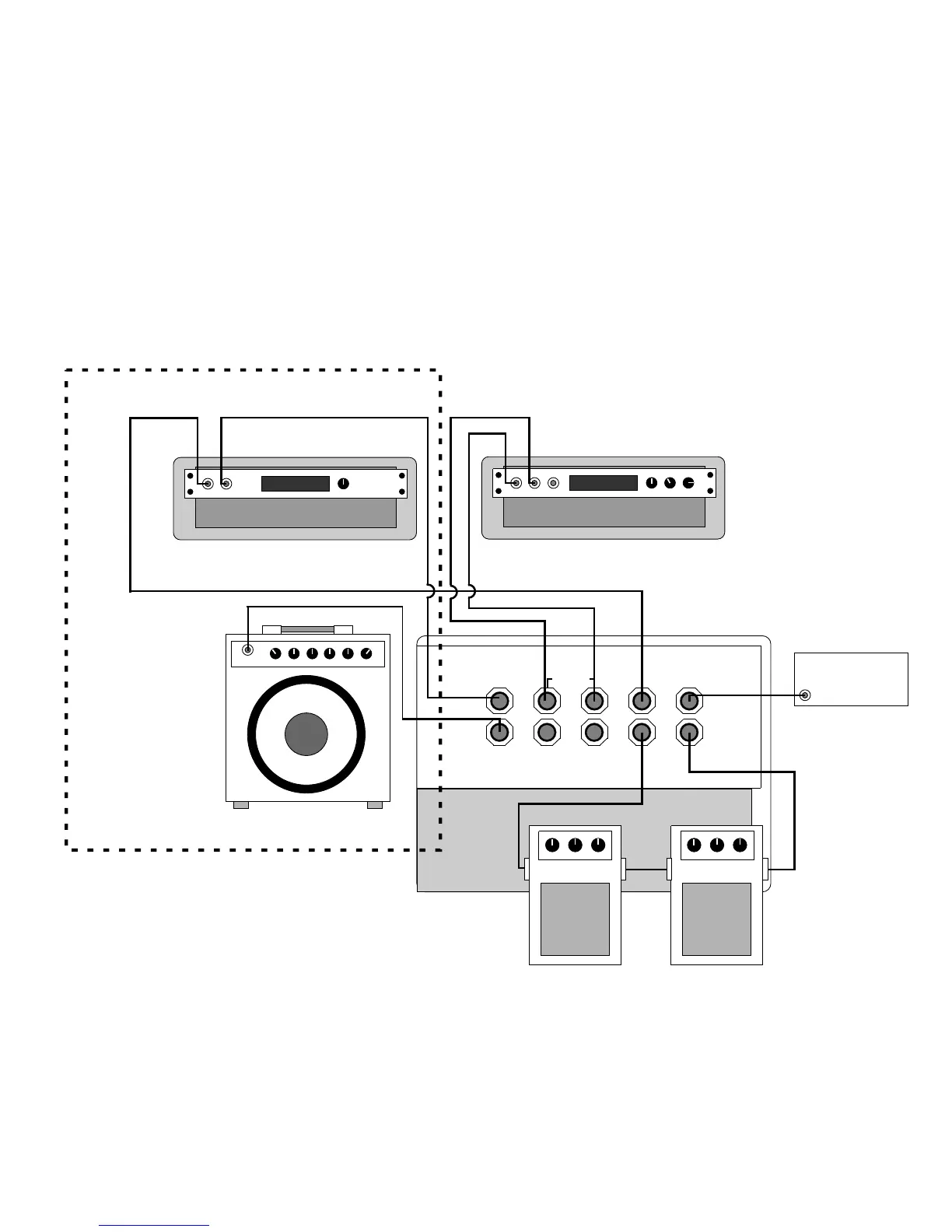

Example 5: Mono Pedals, Mono Rack Effects, One Amp
In this example, you have both pedals connected to the input of your amplier while using remote
mono effects (which can be pedals or racked effects) connected to your amplier's effects loop. You can
only connect one amplier to the patchbay with this conguration.
