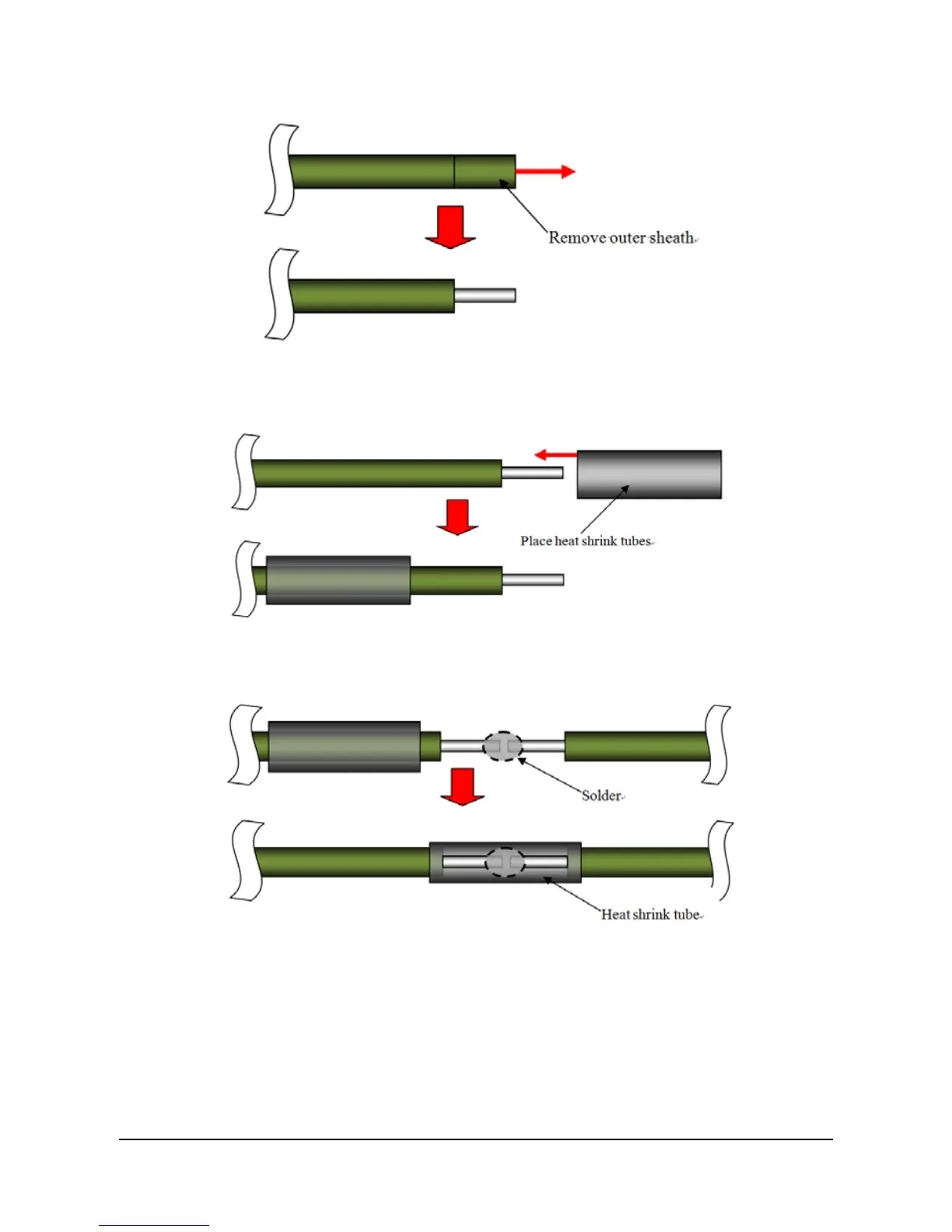

105
Step
2
Referring to t
he figur
e below
, place heat
shrink tube
s on the w
ires, and
then solder the
conn
ection
poi
nt.
Step
3
M
ove the heat
shrink tu
bes to the s
oldered
con
nection
,
an
d then
a
pply
heat to th
e tubes.
Step
4
S
ecure the cab
le with e
lectrica
l
tape.
112
114
Table of Contents
Default Chapter
5
Table of Contents
5
Foreword
9
System Configuration
10
1 Getting Started
11
Emergency Call (CH16)
11
How to Call Another Channel (CH16 or CH9)
11
Channels 13 and 67 (USA Channel Group Only)
12
2 Controls
13
Radio
13
Microphone
14
Handset
16
3 Home Screen
18
4 Digital Selective Calling
20
General
20
Maritime Mobile Service Identity
20
What Is an MMSI
20
How to Enter Your MMSI Number
20
DSC Distress Call
21
How to Initiate a DSC Distress Call
21
How to Receive a DSC Distress Call
25
Individual Call
25
How to Initiate an Individual Call
26
How to Receive an Individual Call
29
Group Call
32
How to Initiate a Group Call
32
How to Receive a Group Call
36
All Ships Call
37
How to Initiate an All Ships Call
38
How to Receive an All Ships Call
39
Position Request Call
40
How to Initiate a Position Request Call
40
How to Receive a Position Request Call
45
Auto Position Polling
46
How to Enable the Auto Position Polling
46
Calls
47
How to Select Vessels to Which the Radio Sends Auto Position Request Calls
47
How to Monitor Position
48
DSC Log
49
DSC Test
50
5 Channel Watch
55
Dual Channel
55
Triple Channel
55
6 Scan
57
Scan All
57
Scan All + 16
57
Memory Scan
57
Memory Scan + 16
58
Editing Memory Channel List
58
7 Weather Mode
61
8 Fog Horn/Hailer/Intercom
63
Fog Horn
63
Hailer
67
Intercom
68
Edit Handset Name
69
9 Setting Mmsi
71
10 General Setup
72
Display Setup
72
Adjusting the Backlight
72
Adjusting the Contrast
72
Units
73
Time Format
73
Time Offset
73
Speed
74
Bearing
75
Key Beep
76
GNSS Setup
76
Entering the "GNSS SETUP" Interface
76
Internal GNSS
76
COG/SOG Display
77
Manual Position
77
I/O Port Setup
78
Entering the "I/O PORT SETUP" Interface
78
Selecting Output Port
78
Gnss Output
79
Dsc Output
79
Ais Output
80
System Information
80
Entering the "SYSTEM INFO" Interface
80
Software Version
81
Diagnostic Test
82
Factory Reset
83
Fog Horn Frequency
83
Service Menu
84
11 Channel Function Setup
85
Channel Group
85
Second Priority Channel
85
Edit Channel Name
86
Private Channel
87
12 Dsc Setup
88
Individual Directory
88
Adding an Entry
88
Editing an Entry
89
Deleting an Entry
90
Group Directory
91
Adding an Entry
91
Editing an Entry
92
Deleting an Entry
93
Channel Change Mode
93
Individual Acknowledgement
94
Position Acknowledgement
94
Test Acknowledgement
95
Auto Position Interval
95
Timeout
96
13 Atis Setup
97
How to Enter the ATIS ID
97
How to Enable/Disable the ATIS Feature
97
14 Maintenance and Troubleshooting
99
General Maintenance
99
Troubleshooting
100
15 Installation
102
Equipment Lists
102
Mounting
104
How to Install the Radio
104
How to Install the Microphone
106
How to Install the Handset (Optional)
106
How to Install the Speaker (Optional)
107
Soft Cover
109
Wiring
109
Overview
109
Antenna
110
Ground Cable
112
Power Cable
112
NMEA2000 Connector (CAN Bus Connector)
114
Extension Cable (Optional)
114
Channel Assignments
116
Menu Tree
124
Specifications
127
Packing List
129
Outline Drawings
133
Interconnection
140
Tools
141
