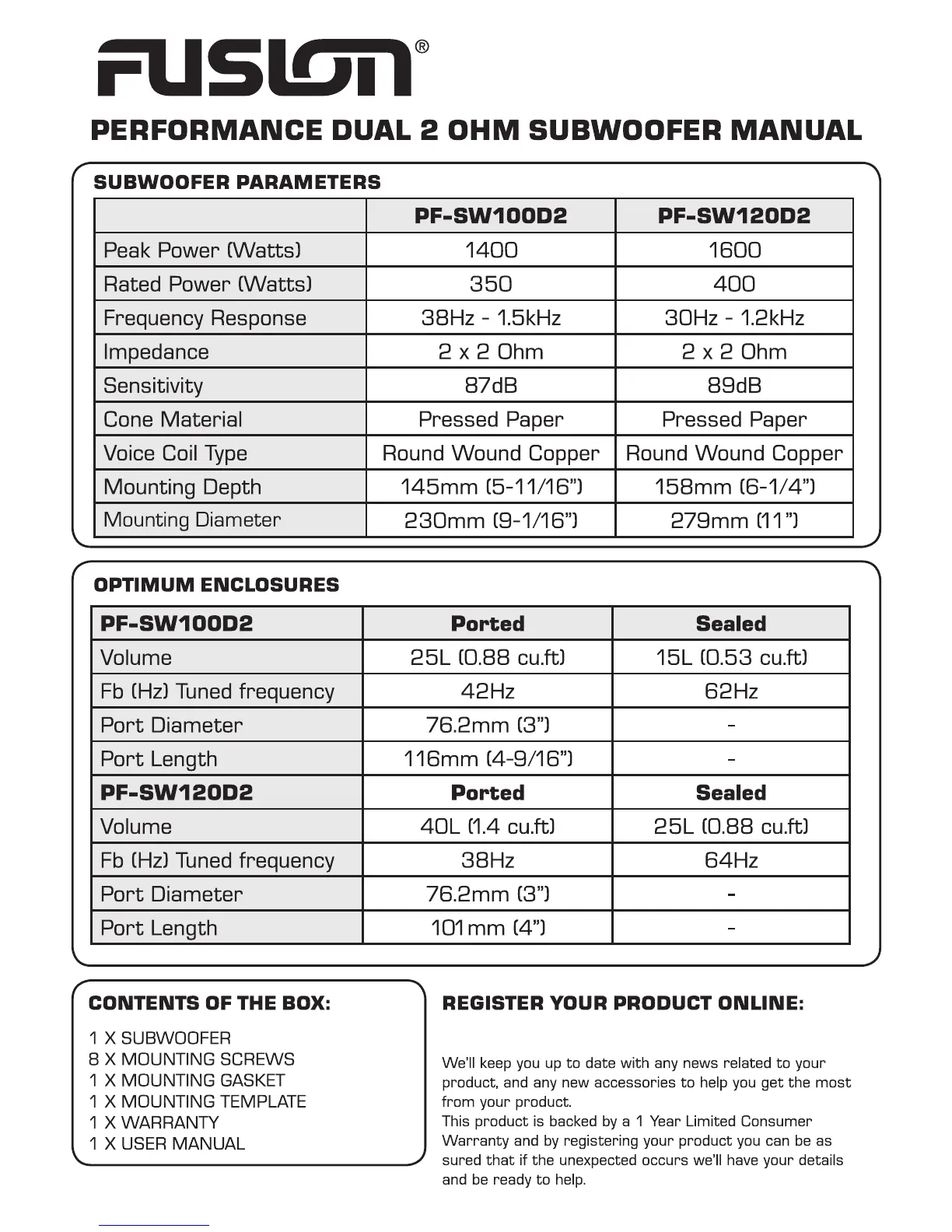

Fusion Performance Series User Manual

PF-SW100D2 PF-SW120D2
Peak Power (Watts) 1400 1600
Rated Power (Watts) 350 400
Frequency Response 38Hz - 1.5kHz 30Hz - 1.2kHz
Impedance 2 x 2 Ohm 2 x 2 Ohm
Sensitivity 87dB 89dB
Cone Material Pressed Paper Pressed Paper
Voice Coil Type Round Wound Copper Round Wound Copper
Mounting Depth 145mm (5-11/16”) 158mm (6-1/4”)
Mounting Diameter
230mm (9-1/16”) 279mm (11”)
PF-SW100D2 Ported Sealed
Volume 25L (0.88 cu.ft) 15L (0.53 cu.ft)
Fb (Hz) Tuned frequency 42Hz 62Hz
Port Diameter 76.2mm (3”) -
Port Length 116mm (4-9/16”) -
PF-SW120D2 Ported Sealed
Volume 40L (1.4 cu.ft) 25L (0.88 cu.ft)
Fb (Hz) Tuned frequency 38Hz 64Hz
Port Diameter 76.2mm (3”) -
Port Length 101mm (4”) -

Fusion Performance Series Specifications

General

Impedance	4 Ohms
Voice Coil Diameter	2.5 inches
Size	12 inches
Configuration	Single
Enclosure Type	Sealed or Ported
