SAFETy prECAUTIOnS

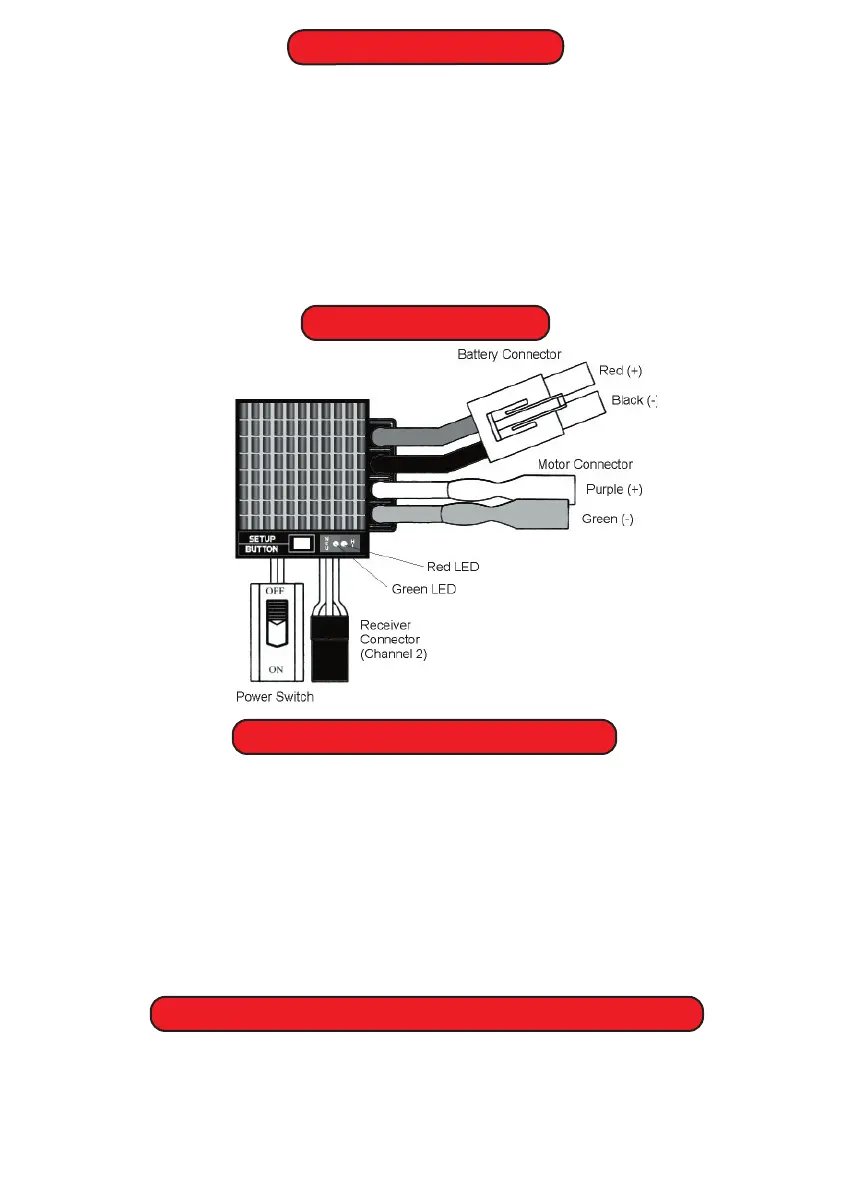

COnnECTIOnS
mOUnT ThE SpEED COnTrOLLEr
SpEciFicAtions
Input power NiCd & NiMH 6-7cells (7.2-8.4V)
Input power LiPo 2 cells
Operating frequency 1.0 kHz
B.E.C. Constant current 5.0V
B.E.C Output Voltage 1.0A
On-Resistance 0.002 ohms
Cutoff voltage NiCd / NiMH (4.0V) & LiPo (5.5V)
Motor Turns Limit 8 turns
Acceleration time delays 0.09, 0.16, 0.27 sec.
Weight with wires 63g
Case size 35 x 27 x 17 mm
• Please read instructions carefully before using !
• Do not run the car in or around water. Never allow water, moisture, or other foreign materials
to enter the ESC.
• Only use 6 - 7 cells for NiCd / NiMH and 2 cells for LiPo.
• Always disconnect the battery pack from the speed controller when not in use.
• Always turn on the ESC after plugging it into the receiver and switching on the transmitter.
• Always check the battery polarity is correct – reverse polarity will damage the speed controller.
• Do not touch the transistors when they get hot !
• Be careful to avoid short-circuits between the various cables.
• Install the speed controller in such a way that it cannot come into contact with grease,
water, or oil.
• It is very important to determine the best location that allows efficient airflow
through the transistors for the ESC installation.
• Mount the ESC to the chassis using double-sided tape
.
