FUTABA GPB-1 - Page 11

11
Config
Config
Neutral position setting for each servo.

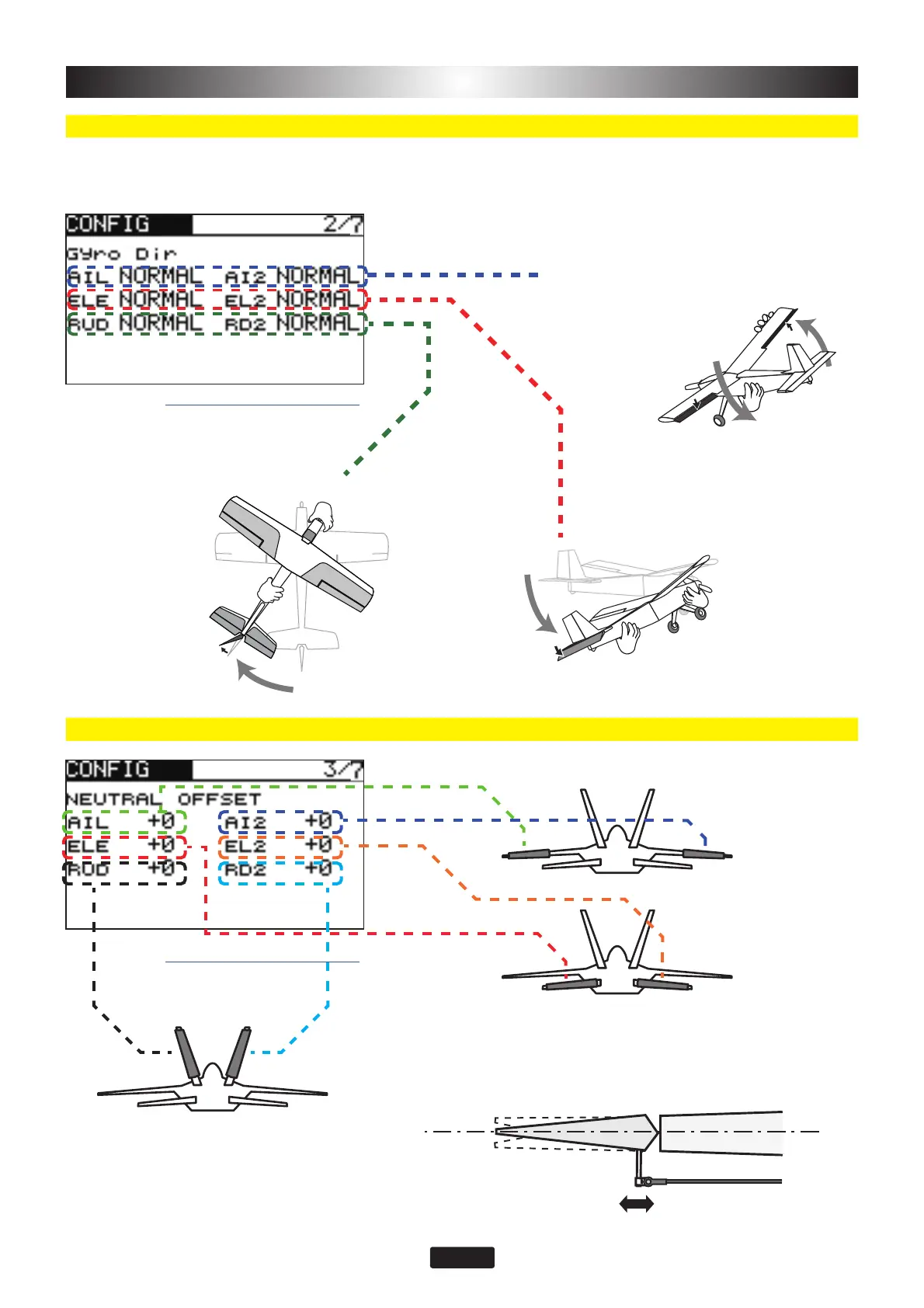

Config 2/7Gyrodirection
Config 3/7 Neutraloffset
It is the direction setting of the gyro. Be careful as it will crash
if the direction is reversed.
For dual aileron, dual elevator, and dual rudder aircraft, check
the operating direction of each second aileron/elevator/rudder.
Turntheairplanetotherighton
thegroundandcheckthatthe
rudderoperatestotheleft.
Tilttheairplanetotheleftonthe
groundandcheckthattheailerons
operatetotheright.
Raisetheairplanewithitsnose
upwardandcheckthatthe
elevatoroperatesdownward.
Keyoperation →
Howtooperateeachmenuscreen
Howtooperateeachmenuscreen
Keyoperation →
Howtooperateeachmenuscreen
Howtooperateeachmenuscreen
Thiswillmovetheneutraltothedesiredposition.
