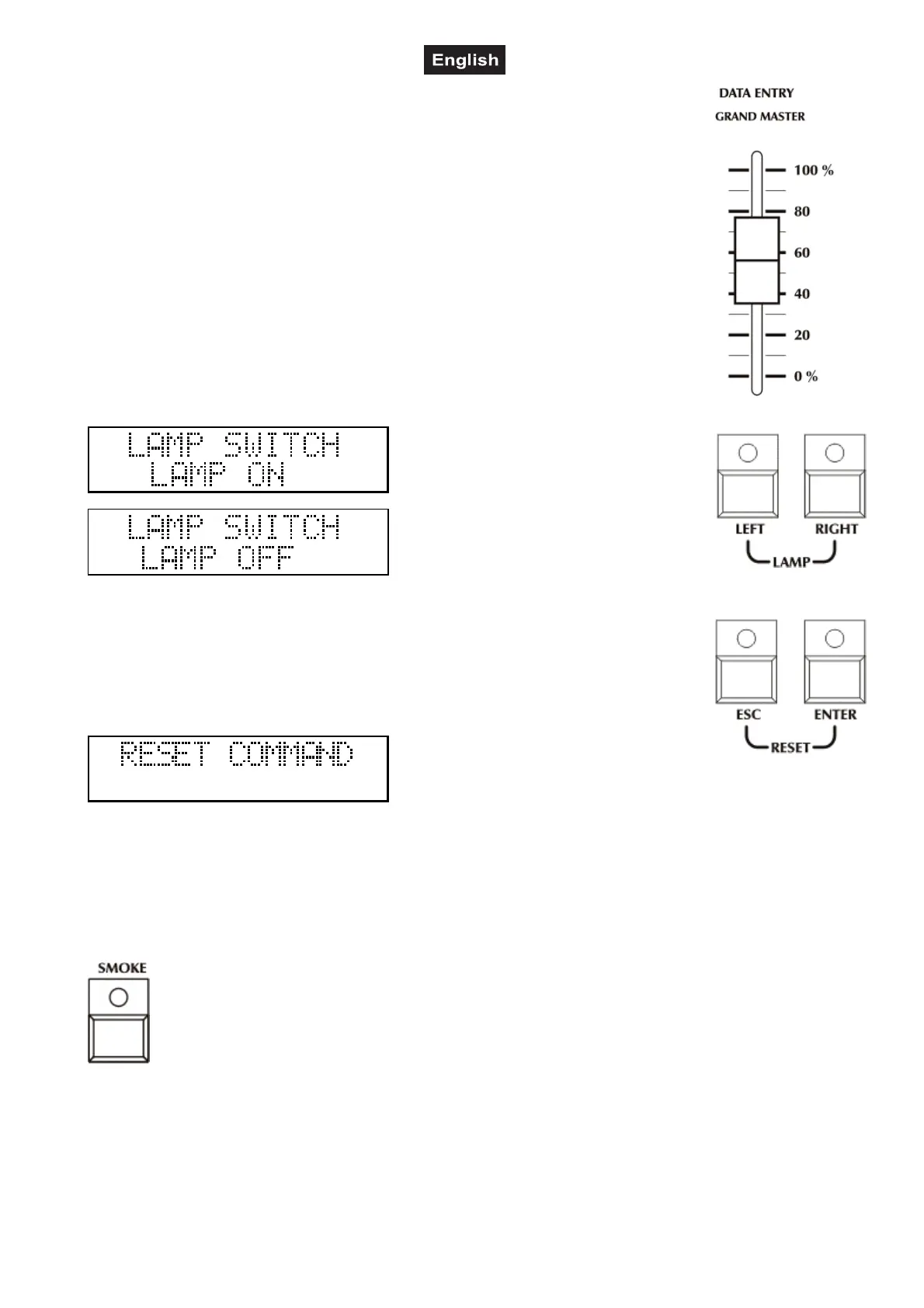

GRAND MASTER function
The GRAND MASTER (DATA ENTRY) potentiometer sets the intensity of the
potentiometers – if they have a channel that controls the intensity exclusively (usually the
dimmer channel), and if the channel was marked as a special dimmer. Set the intensity
either in automatic or in manual mode. In the lower line of the display the current
intensity value appears in percent.
LAMP function
The controller is able to simply switch the
glow-lamp of the controlled units on and off
– only if the unit has such a function and a
special lamp function was set at the
installation! By keeping the LEFT/RIGHT
buttons pressed simultaneously the
controller switches to lamp mode. At that
time switching-on and switching-out values can be forwarded to the units with buttons 1-16. If you press the
UP button, the LED starts flashing, signaling that the glow-lamps can now be turned on with buttons 1-16.
The controller sends switching-on values to the units while you keep that button pressed!
If you press the DOWN button, its LED starts flashing, signaling that glow-lamp
switching-out commands can be sent to the units with buttons 1-16.
You can log off from the setup by pressing the LEFT or RIGHT button.
RESET function
The controller is able to reset the controlled units if the unit has such a function and a special reset function
was set during the installation! In case you keep the ESC-ENTER buttons pressed simultaneously the
controller switches to reset mode. Then the reset command can be forwarded to the units with buttons 1-16.
The controller sends the reset command to the units until the button is kept pressed!
You can log off from the setup pressing the ESC or ENTER button.
SMOKE-MACHINE control
The controller can control a dmx smoke-machine with a maximum 8 channels. How the
configuration can be made on the controller was described in the setup menu. In automatic and
manual modes active values can be forwarded to the 8 smoke-machine channels when the
SMOKE button is pressed.
If you keep the SMOKE button pressed the active values can be changed with potentiometers 1-
8. The controller remembers them after releasing the SMOKE button and loads them when
pressing the button next time. The SMOKE active caption appears in the lower line on the display when the
button is pressed.
