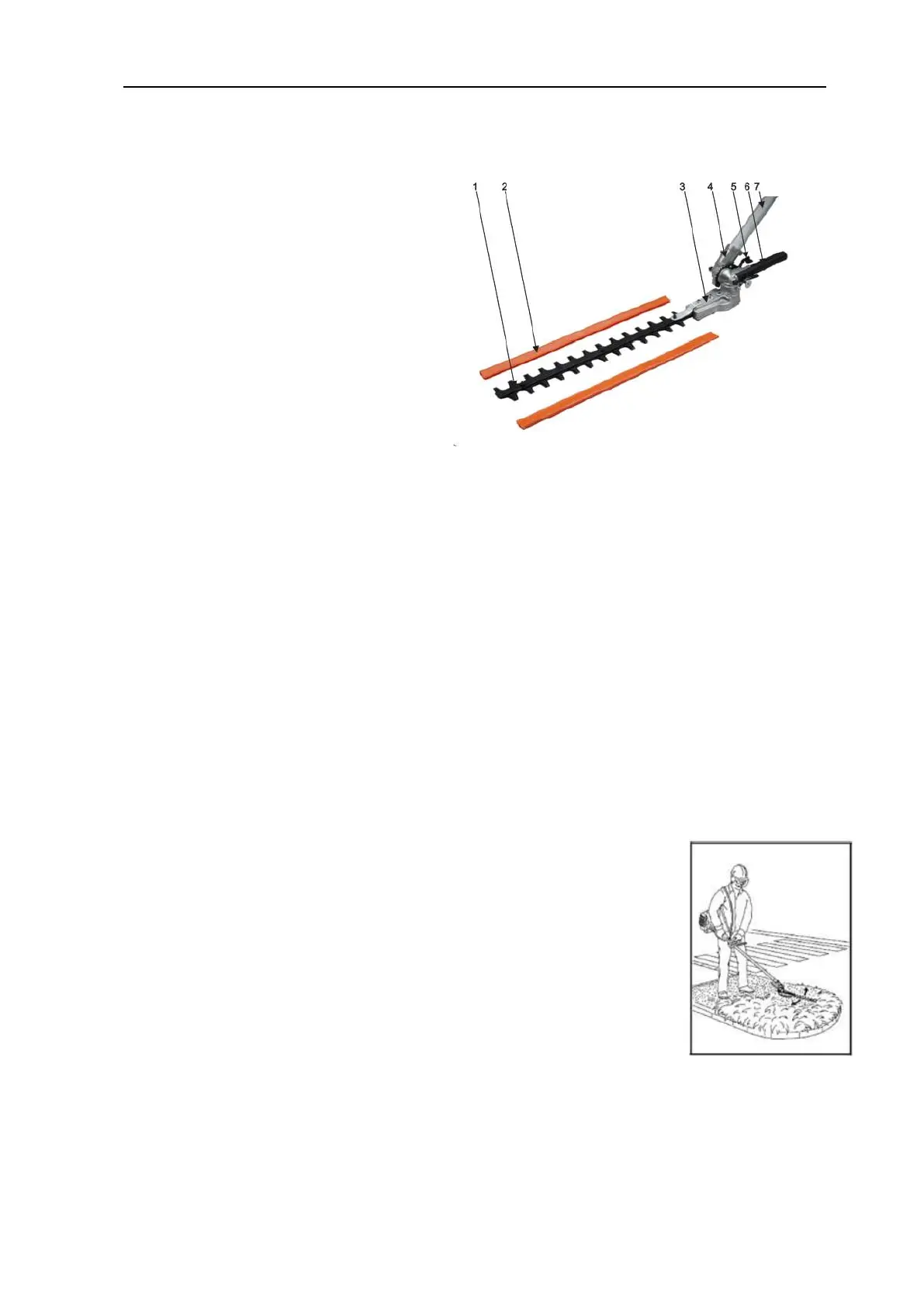

1 Cutting blades
2 Blade protection
3 Blade gear
4 Lockout
5 Angle drive
6 Setting lever
7 Drive axle tube
Explanation
1. Cutting blades
Steel blades for cutting hedges and undergrowth
2. Blade protection
Protects the cutting bar when the tool is not in use
3. Blade gear
Converts the rotation of the angular drive into the reciprocating movements of the
cutting blades
4. Block
Holds the cutting bar in the desired position
5. Angle drive
Transfers the rotary motion of the drive axle to the blade drive
6. Setting lever
Adjusts the cutting bar to the desired angle
7. Drive axle tube (tree)
Surrounds and protects the drive axle between the coupling sleeve and the gearbox.
General
Besides the intended use for cutting hedges at height, the hedge
trimmer can also be used on the ground. Because its blades work like
a mower, it is ideal for cutting undergrowth, thicket, reeds, wild
growth, and more durable grass. The hedge trimmer is particularly
suitable for busy places such as traffic islands or parks, as the
cuttings are not thrown around by the blades.
Preparation
Always wear the carrying strap.
Do not throw the clippings in the waste bin. It can be composted.
Cutting technique
