STEP | 01 LAYOUT AND INSTALL PREP
1.1 Identify Van Configuration: There could be any number
of accessories mounted to your van that may inform the way
you approach the install of your Side Ladder (Roof Racks, Side

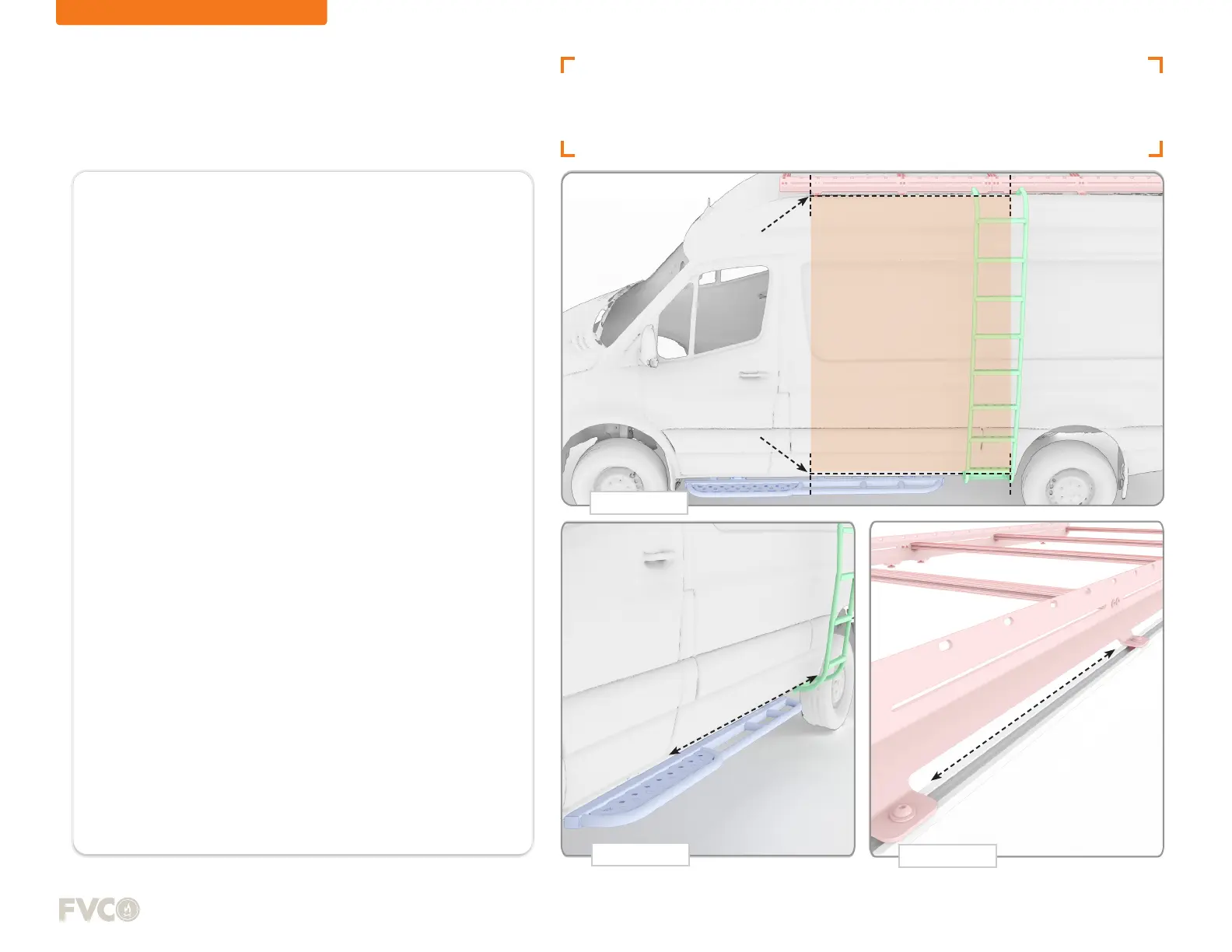

Steps, Water Tanks, etc.) See FIG 1 for key areas that will need
accessed.
NOTE - The van pictured is a 144” High Roof Sprinter, but the
same principles apply to the 170”
NOTE - You may need to loosen or temporarily remove mounted
accessories to gain sufficient access to the Roof Rail and Pinch
Seam of your van.
INSTALL
FIG 1
FIG 2
FIG 3
PINCH SEAM
ROOF RAIL
