TOOLS REQUIRED FOR THIS STEP:
STEP | 02 SIDE LADDER ASSEMBLY

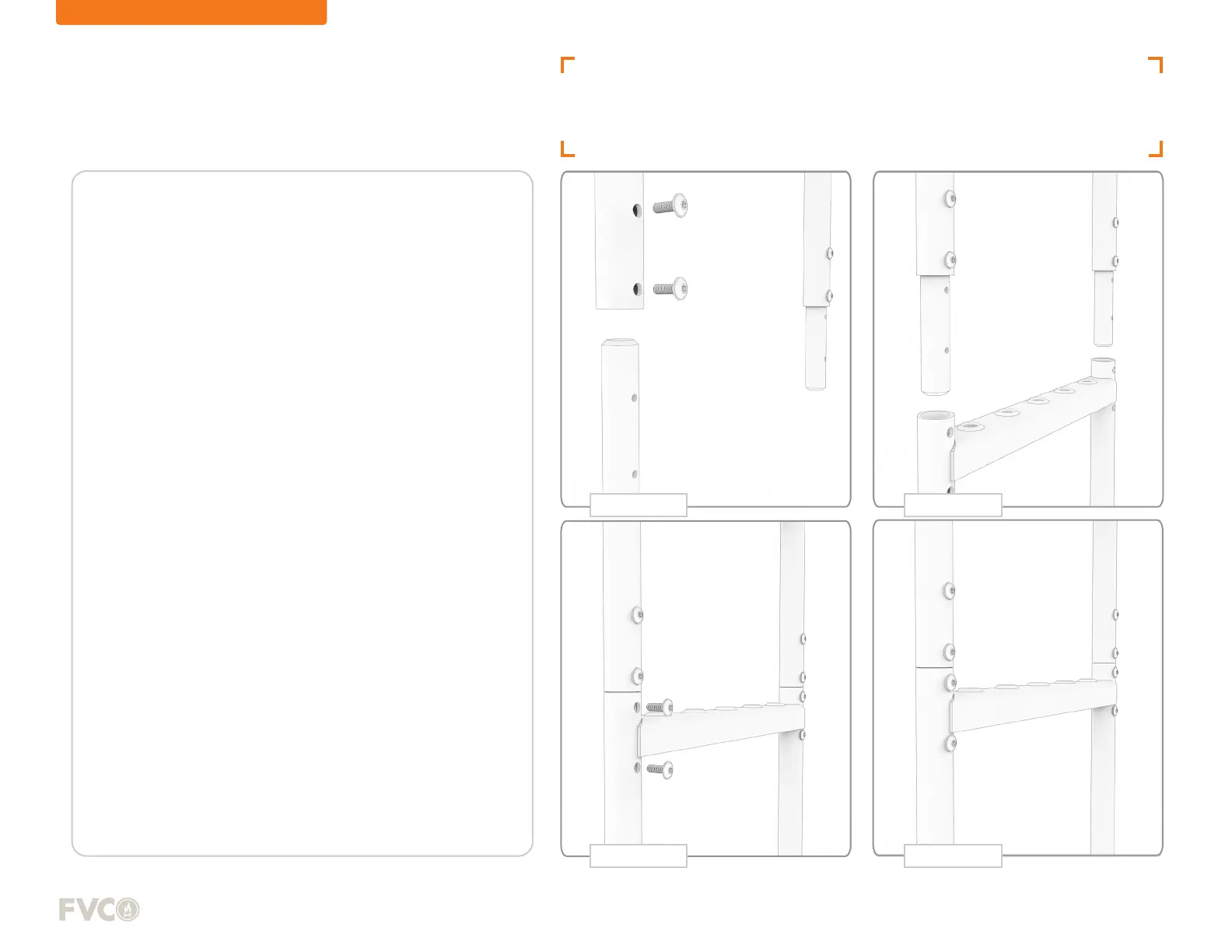

2.1 Install Bayonets to Top Ladder Half: Find the Top Half of
the Side Ladder and insert Bayonets as shown in FIG 4. Secure
using (2ea) 1/4-20 x 0.75 Flanged Button Head Hex Drive
Screws and Loctite.
2.2 Attach Bottom Ladder Half: Find the Bottom Half of the
Side Ladder and attach to protruding Bayonets using (2ea)
1/4-20 x 0.75 Flanged Button Head Hex Drive Screws and
Loctite as shown in FIG 5-7.
FIG 4
FIG 5
FIG 6
FIG 7
+ 5/32” ALLEN WRENCH
To Next Page
