TOOLS REQUIRED FOR THIS STEP:

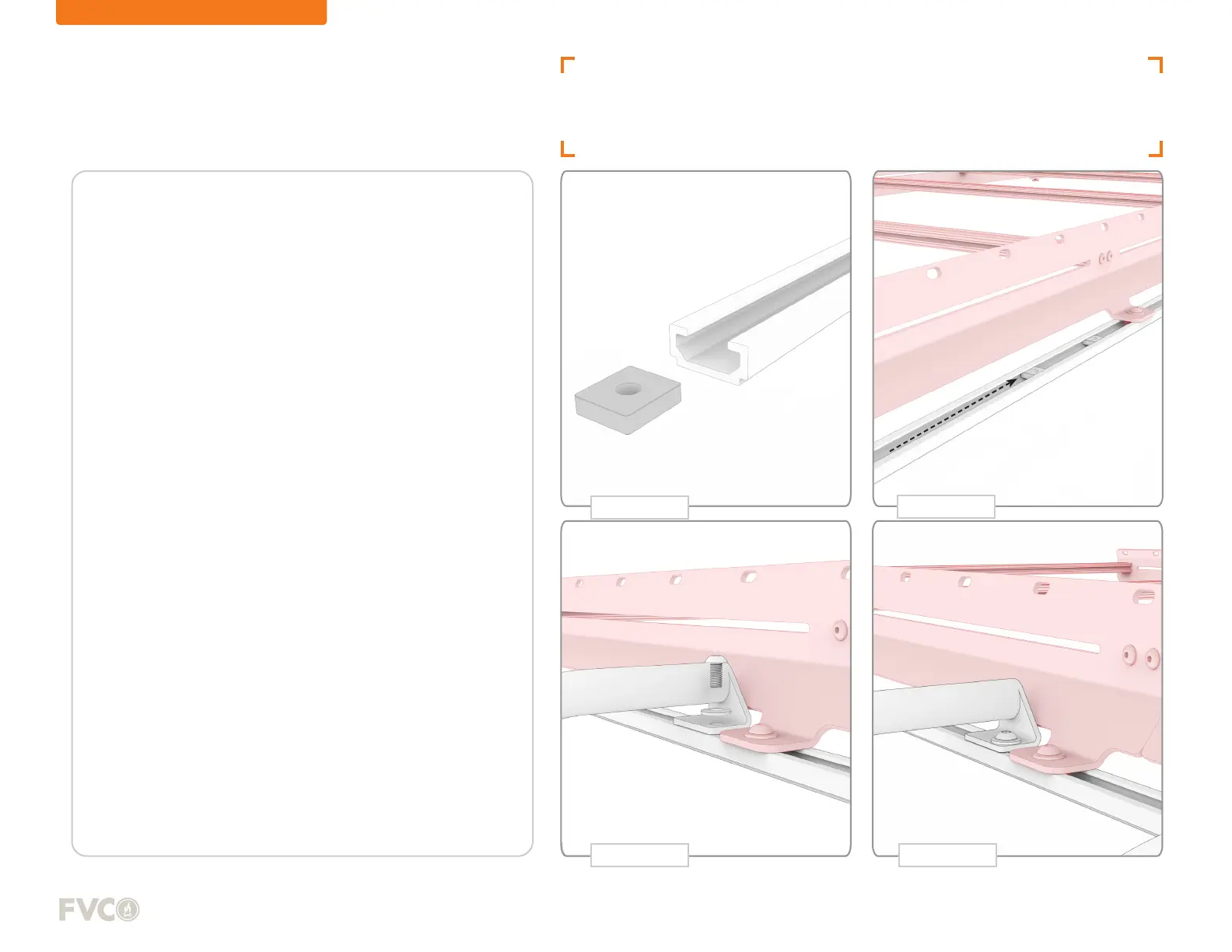

STEP | 03 SIDE LADDER FITTING
3.1 Roof Rail Nuts: Slide in Rail Nuts to location of install along
the Roof Rail (FIG 8+9). In this case, directly above the Rear
Wheel Well.
NOTE - If you already have a Roof Rack installed, this can be a
somewhat lengthy process.
3.2 Attach Side Ladder: Loosely secure Side Ladder to Rail
Nuts using (2) 3/8-16 x 0.5” Button Head Hex Screws and
Lock Washers (FIG 10+11).
FIG 8
FIG 9
+ 7/32” ALLEN WRENCH
FIG 10 FIG 11
To Next Page
