08FLATLINE VAN CO • SUPPORT@FLATLINEVANCO.COM • 888-667-5576
TOOLS REQUIRED FOR THIS STEP:

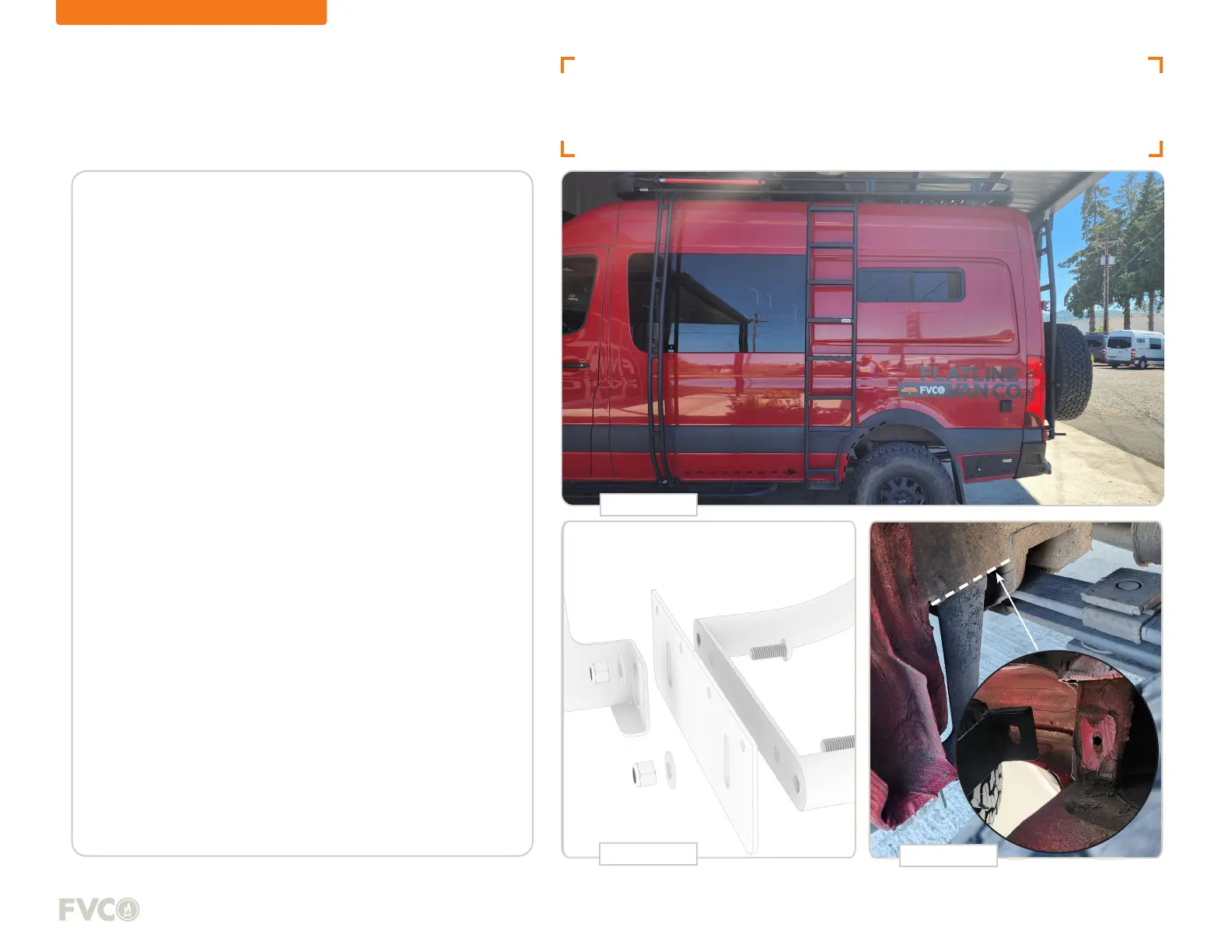

STEP | 04 SIDE LADDER ALIGNMENT
4.1 Align Side Ladder to Wheel Well: Align the contour of the
Side Ladder to that of the Rear Wheel Well (FIG 12).
NOTE- We like to place the ladder as close to the rear wheel well
as we can.
4.2 Attach Mounting Brackets: Take the Mount Plate and the
Support Bracket and loosely attach them to the bottom of the
ladder using the 3/8-16 X 1” Screws, 3/8 Flat Washers, and
3/8-16 Nylock Nuts (FIG 13).
4.3 Drill for Support Bracket: Locate where the support bracket
lands on the chassis beam shown in FIG 14 and use it to mark
the thru hole to be drilled. Once marked, swing the bracket out
of the way so you can access with power drill. Drill through
using a 1/2” Drill Bit.
NOTE - Leave this support bracket loose as you fit everything in
place, or you’ll likely need to loosen it again.
NOTE - Make sure that the ladder is straight up and down
FIG 12
FIG 13
+ 7/32” ALLEN WRENCH
+ 9/16” WRENCH OR SOCKET
+ POWER DRILL
+ 1/2” DRILL BIT
FIG 14
DRILL HERE
CHASSIS BEAMCHASSIS BEAM
