The parameters can be saved in non-volatile memory so they remain after power is removed.
If the engine is running at the time the SAVE button is pressed, the page will display “Save
Pending…” meaning it must wait for the engine to be shut down before it reprograms the
memory. It cannot reprogram memory during run mode, it must be in the standby mode. The
new values will be used after they are changed.

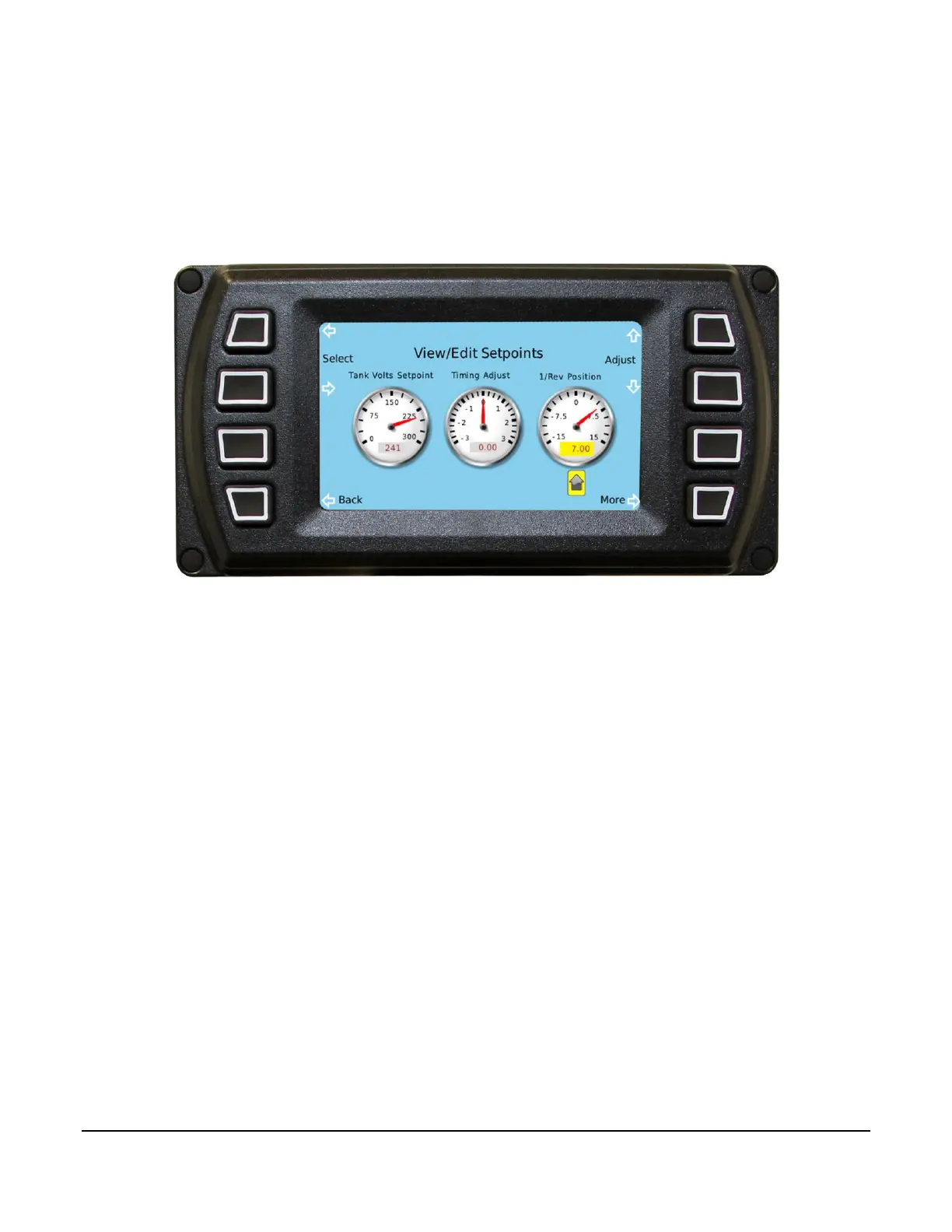

Figure 11.0 Editing the 1/REV Position
Figure 11.0 shows the page the user will see after the correct passcode has been entered and
the 1/REV Position parameter has been selected for editing. The Select arrows cause the
gauge select pointer to scroll from gauge to gauge. In the example, the user has stopped it
under the 1/REV Position gauge. The small digital gauge within the dial will show the same
value as the analog gauge. The user would press the up or down arrow buttons adjacent to
“Adjust” to increase or decrease the value. After the changes have been made, the user would
press the Back button and then press the Save button on the home page to make them
permanent. The user can also elect to just make the changes without saving to see the effect
the changes have. All three parameters can be changed and saved as a group.
