Section 40 00-02-0893
2014-07-18 - 16 -
or alarm bell. The alarm will remain posted until the source of it is fixed and the user presses
the Clear Alarm button.

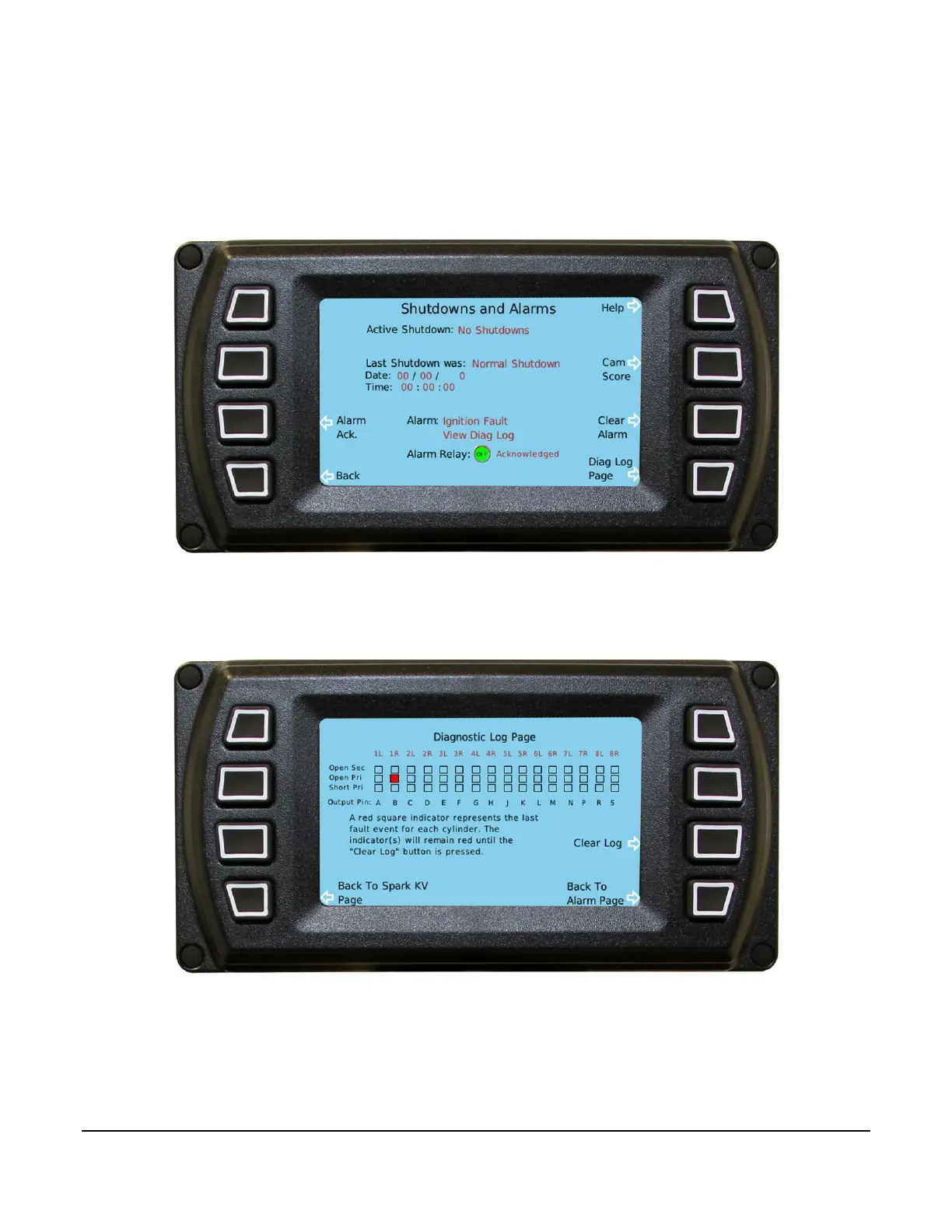

Figure 14.0 Ignition Fault shows the screen after the user pressed the Alarm Ack. Button.
Figure 14.0 Ignition Fault screen view
In the above example, the user is asked to view the Diagnostic Log Page. Figure 15.0 shows
the Diagnostic Log page for this example.
Figure 15.0 Example of an Ignition fault
The Shutdowns and Alarm page provide a button to take the user to the Cam Score page if
one of the Camless methods is being used.
