5.Hang the two tension springs on the cutter deck.

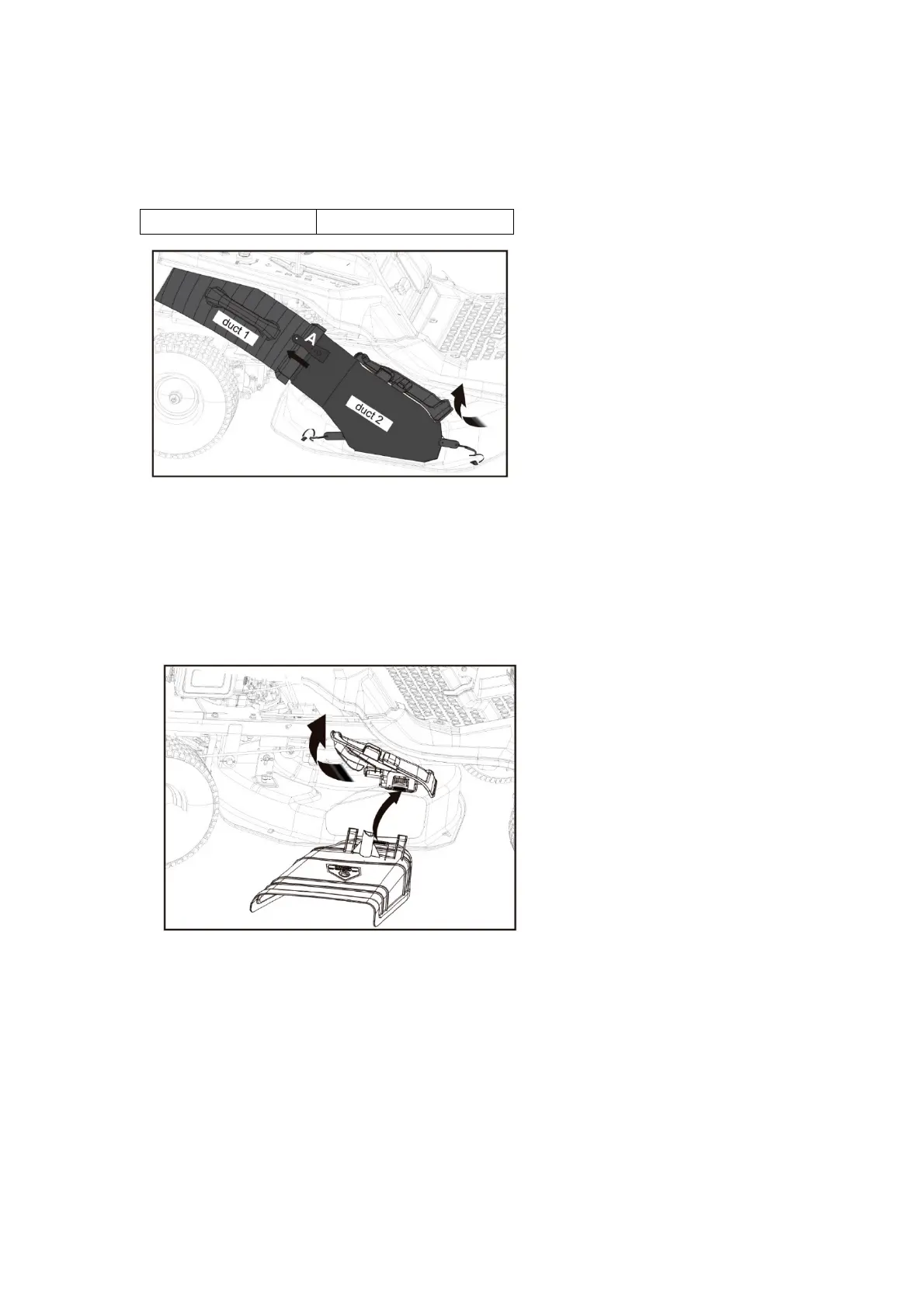

6.Connect duct 1 to duct 2 and hang rubber A on side discharge chute.
7.Release the side discharge cover to secure the duct in position
Notice: The machine must be stopped during installation
Assembling the side discharge chute
1.Adjust cutter (7)to lowest gear.
2.Hold the side cover switch and flip the side cover up.
3.place side discharge chute to bayonet.
4.Release the side discharge cover to secure the duct in position
Notice: The machine must be stopped during installation.
Installation of tire
1.Park the lawnmower on the hard, level surface.
2.Let mower shut off completely , start the parking brake（16） to avoid machine moving
during installation .
3.Install the tire as shown in the picture below and tighten the front wheel with flange
nuts; Rear wheels are fixed with washers and flange bolts. (Recommended torque is
22N.M)
4.When removing or installing tires, use a hard object under the front and rear Bridges
of the lawn mower to avoid the toppling of the lawn mower during the replacement
To Next Page
