Coupling Alignment Gage Operation Manual
Copyright © 2016 Gagemaker. All rights reserved
4

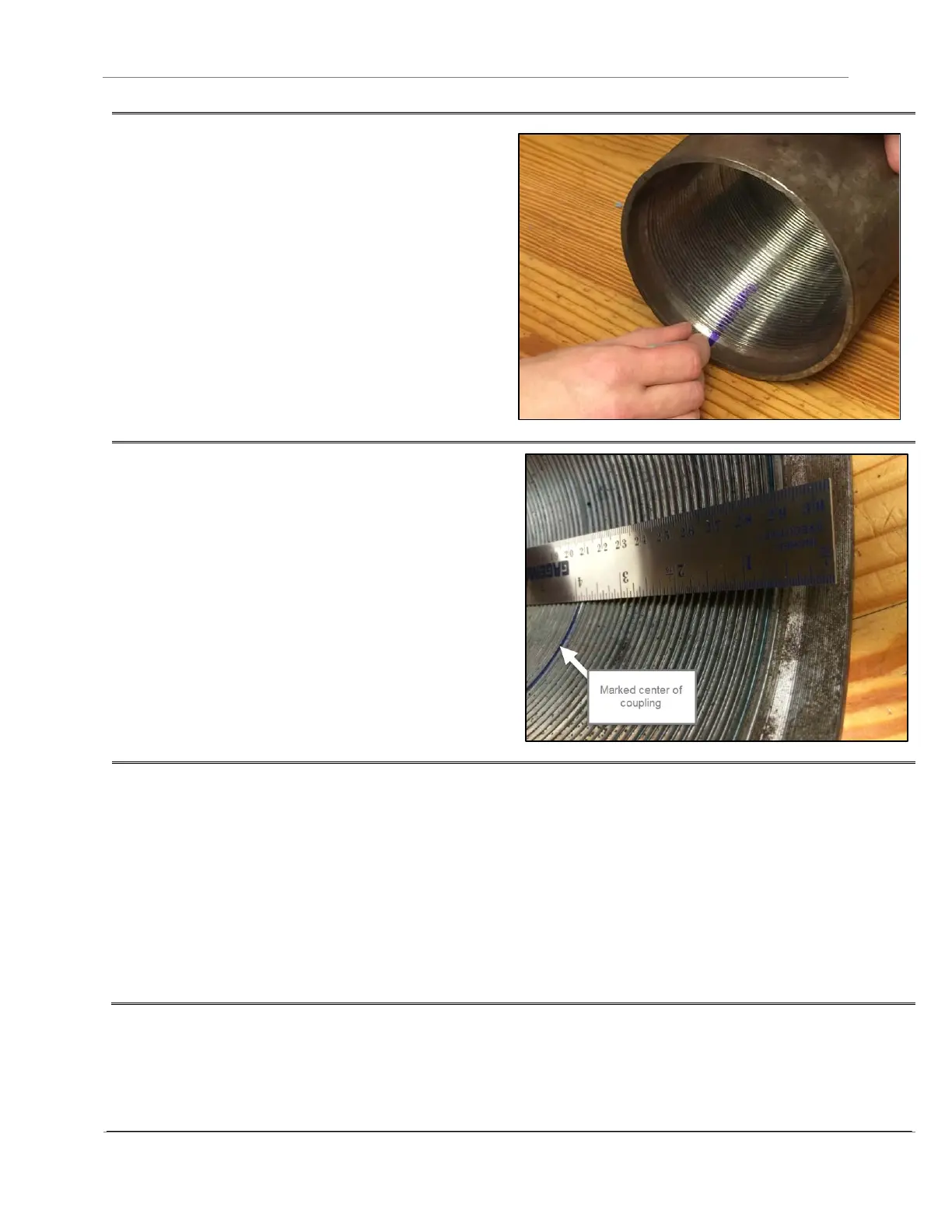

3. Use a marker to draw a line inside of the
coupling.
NOTE: This line will be used as a timing mark.
4. Use a marker to mark the center of the
coupling.
5. Mark the thread that is 1.500 in. from the
center of the coupling.
IMPORTANT: This mark will be used to properly
position the center of the coupling between the
contact points of the CA-9001 as mandated by
API Specification 5B Section 5.1.35.
