Lead Gage Operation Manual
Model LG-5003
Copyright © 2014 Gagemaker. All rights reserved
5
Parts List

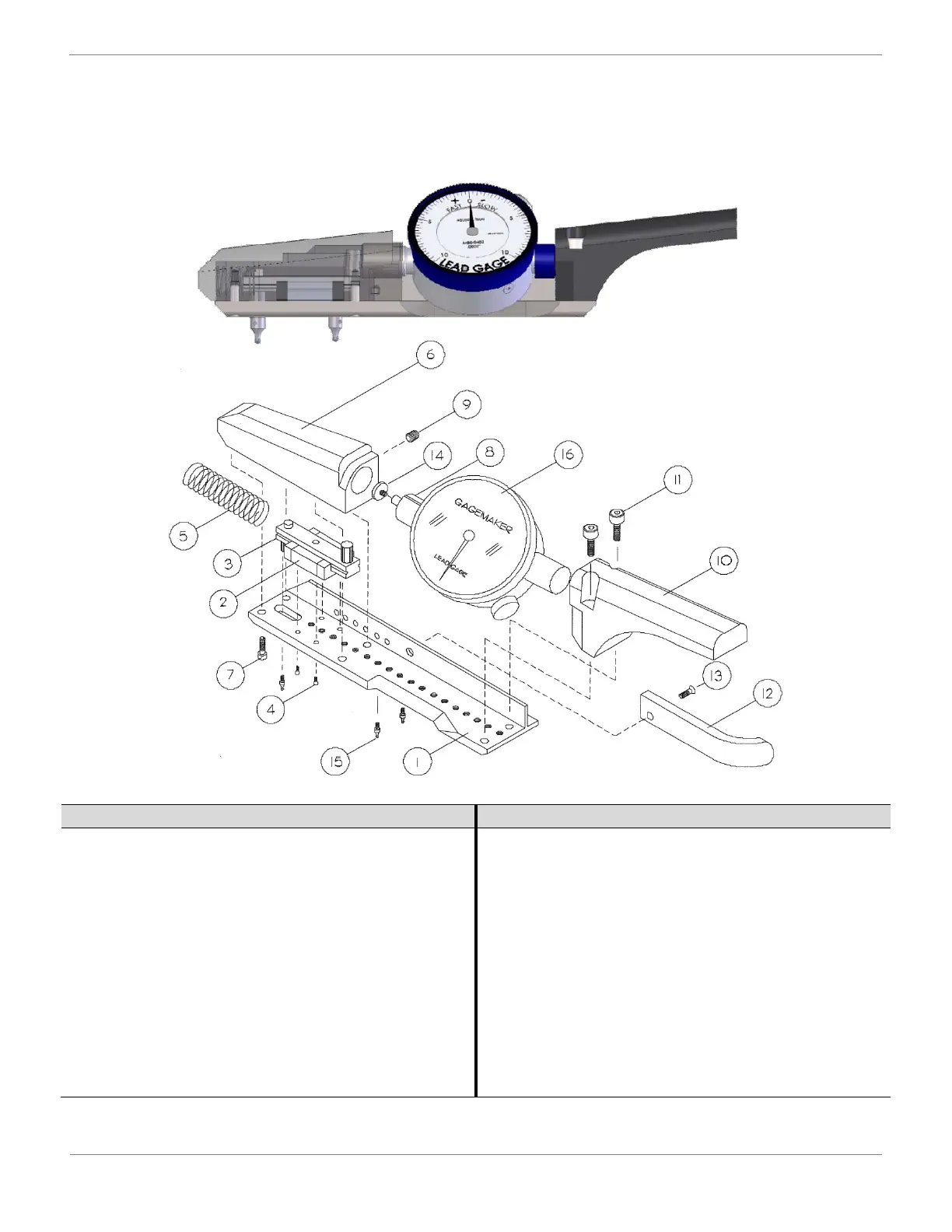

Take some time to become familiar with all the parts that make up the lead gage by reviewing the
labeled diagram below. The part names are important for understanding the operating
instructions.
Item Description Part Number Qty Item Description Part Number Qty
1 Base plate LG-5003-A1 1 9 Indicator set screw LG-5003-A9 1
2 Bearing assembly LG-5003-A2 1 10 Handle LG-5003-A10 1
3 Bearing alone LG-5003-A3 1 11 Handle cap screw LG-5003-A11 2
4 Bearing cap screw LG-5003-A4 4 12 Trigger LG-5003-A12 1
5 Spring LG-5003-A5 1 13 Trigger cap screw LG-5003-A13 1
6 Nose cover LG-5003-A6 1 14 Flat contact point P-500 1
7 Nose cap screw LG-5003-A7 4 15 Contact point* T072* 3
8 Split bushing LG-5003-A8 1 16 Indicator** 80-0403** 1
* T072 contact points are shipped standard, but other contact points are available.
**A higher resolution indicator is available.
