WARNING - RISK OF ELECTRIC SHOCK
Appliance grounded to neutral conductor through a link. Grounding
through the neutral conductor is prohibited for (1) new branch-circuit
instal-lations, (2) mobile homes, (3) recreational vehicles, and (4) areas
where local codes prohibit grounding through the neutral conductor.
For installations where grounding through the neutral conductor is
prohibited, the 3-conductor cord or cable assembly must be replaced
by a 4-conductor cord or cable assembly. See manufacturer's
instructions.

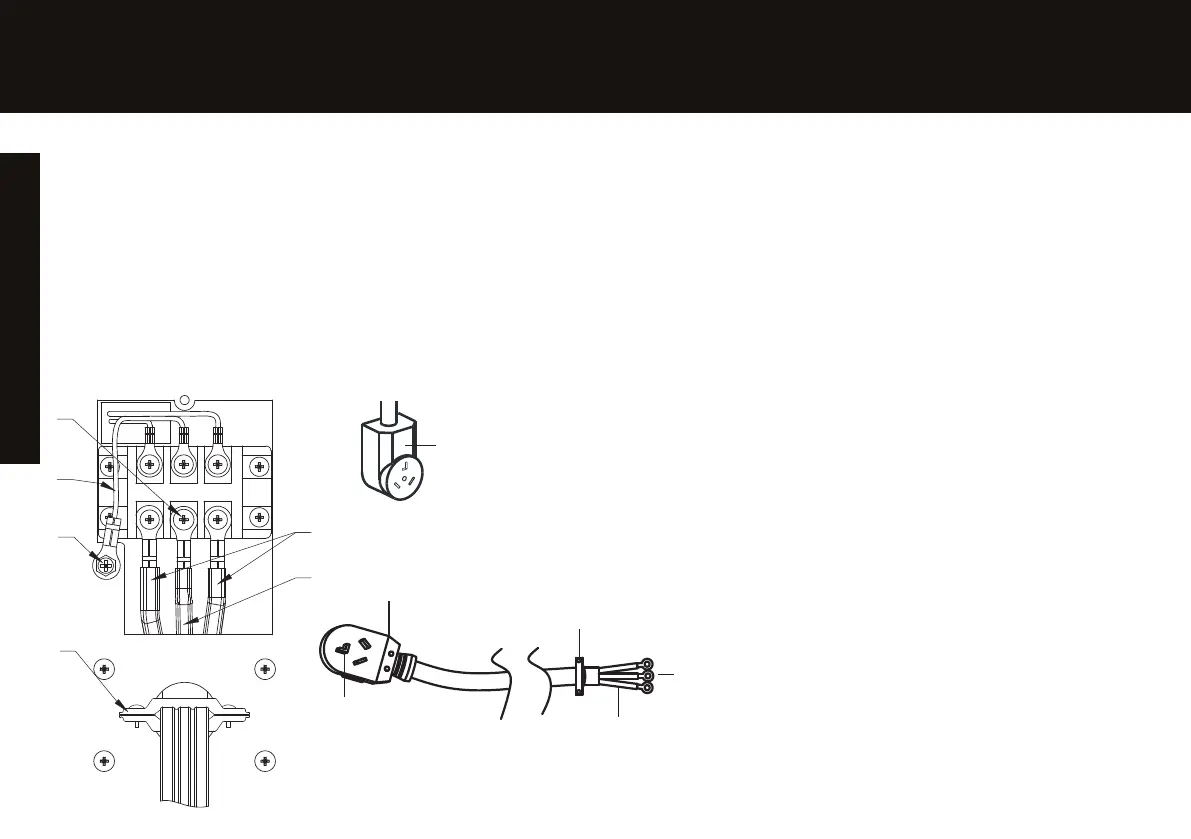

the 3-conductor cord
A
E
F
D
C
B
3-wire receptacle
(NEMA type 10-30R)
3-wire plug
3/4in.(1.9cm)
approved Strain
relief
UL
Neutral prong
Neutral (white
or center wire)
Ring terminals
A. Neutral line (zero line) (white or center line);
B. Firewire (red or black);
C. External ground screw;
D. Neutral ground (white);
E. UL certified stress relief
F. Central screw of terminal plate;
Wiring Steps
1. Loosen or remove the central screw of the terminal
board.
2. Fix the neutral wire on the terminal board with screws.
Tighten the screw.
3. Connect other wires to the terminal board. Tighten
the screw.
4. Tighten the stress relief screw.
5. Cover the junction box and tighten it with screws.
Warning:
1) The 4-conductor cord is converted to the 3-conductor
cord. Please connect the ground wire to the terminal box
bracket for grounding the clothes dryer housing to the
neutral conductor.
2) Ring terminals are recommended. If open terminals are
used, please ensure that the screws are tightened.
