POSITION
Full Clockwise
2nd
3rd
4th
5th
6th
7th
IMPEDANCE
16 ohms
23 ohms
33 ohms
46 ohms
64 ohms
90 ohms
130 ohms
dB REDUCTION
0
-3
-6
-9
-12
-15
-18

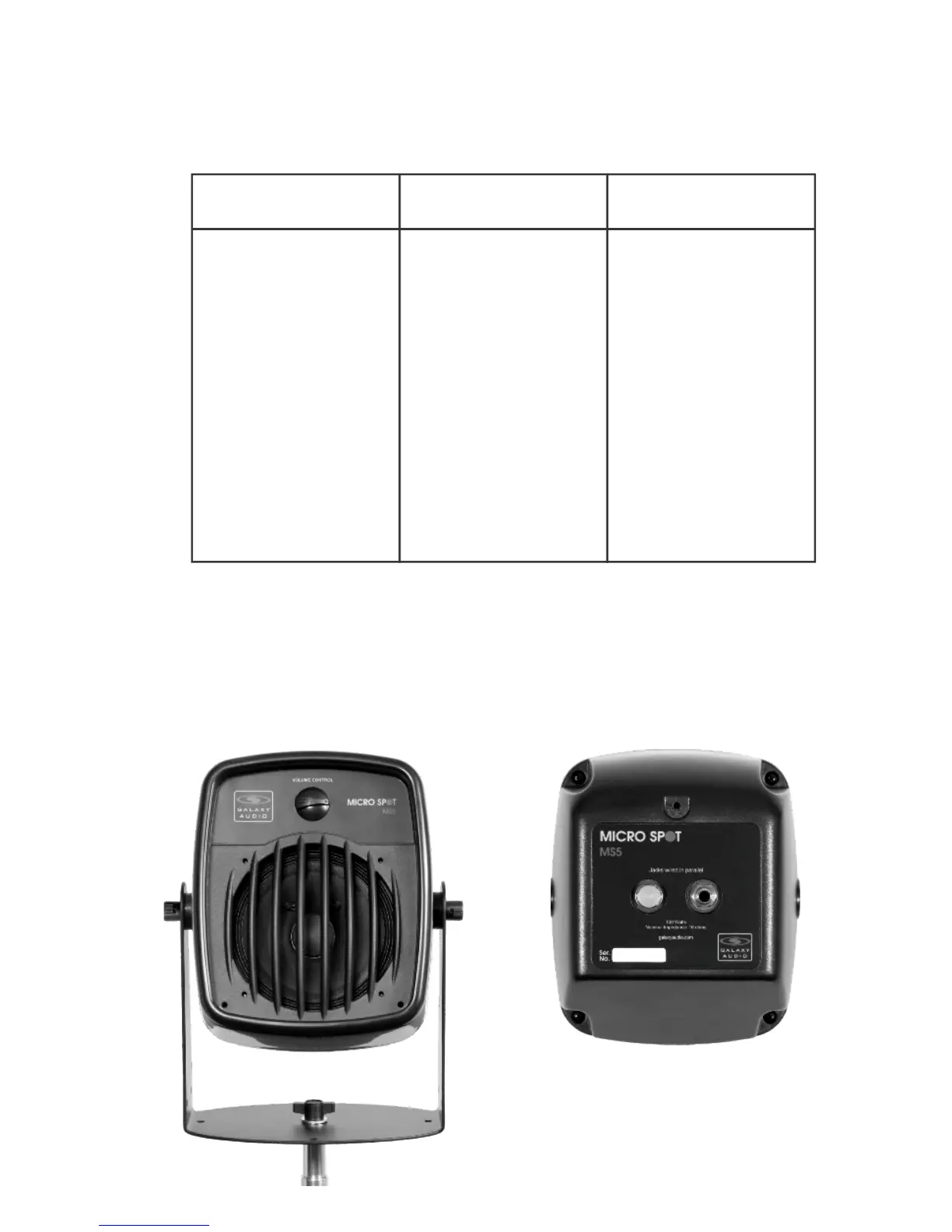

The HOT SPOT 7 (HS7) and MICRO SPOT (MS5)
The impedance of the HOT SPOT 7 (HS7) and MICRO SPOT (MS5) is
determined by the position of its volume control. Use the table below to
determine the actual impedance.
7
[T.1]
Note: Each Hot Spot 7 (HS7) comes equipped with two twistlock 1/4" Combo
speaker jacks, each Micro Spot (MS5) come equipped with two 1/4" speaker
Jacks all of which are wired in parallel to allow easy "daisy chaining' of multiple
Hot Spots.
* There is not an off setting, fully counter clockwise is an 18dB reduction in level.
