Galaxy 1M2S - Overlimit Switch Wiring and Setup

NOTE: The following wiring examples are not affected by whether the lift is wired for 240V or 120V
Overlimit Set Up

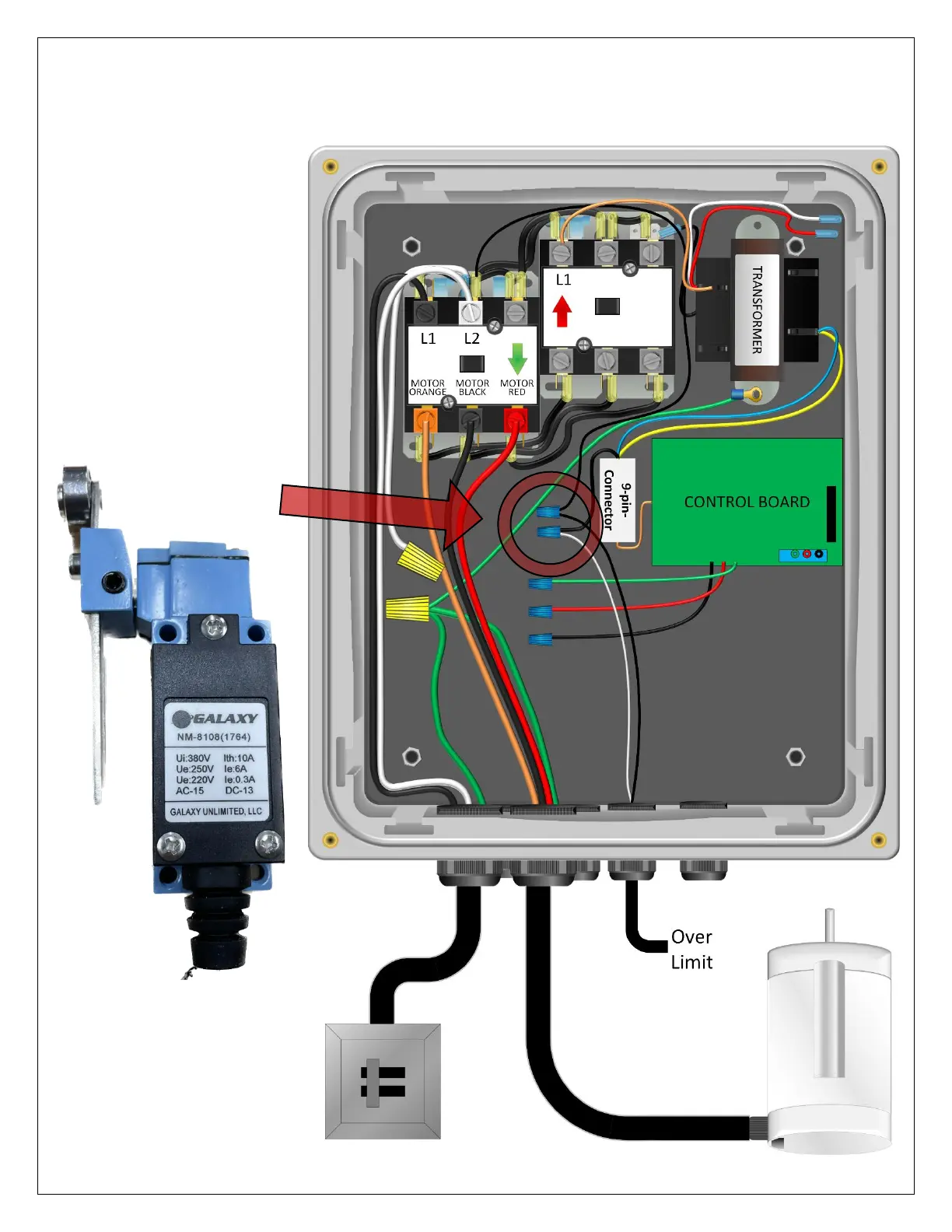

1. Connect the black wire
from the Overlimit cable
to the black wire coming
from the 9 Pin Molex
connecter.
2. Connect the white wire
from the Overlimit cable
to the black wire coming
from the back of the
contactor.
3. Use wire nuts to secure
connections.
