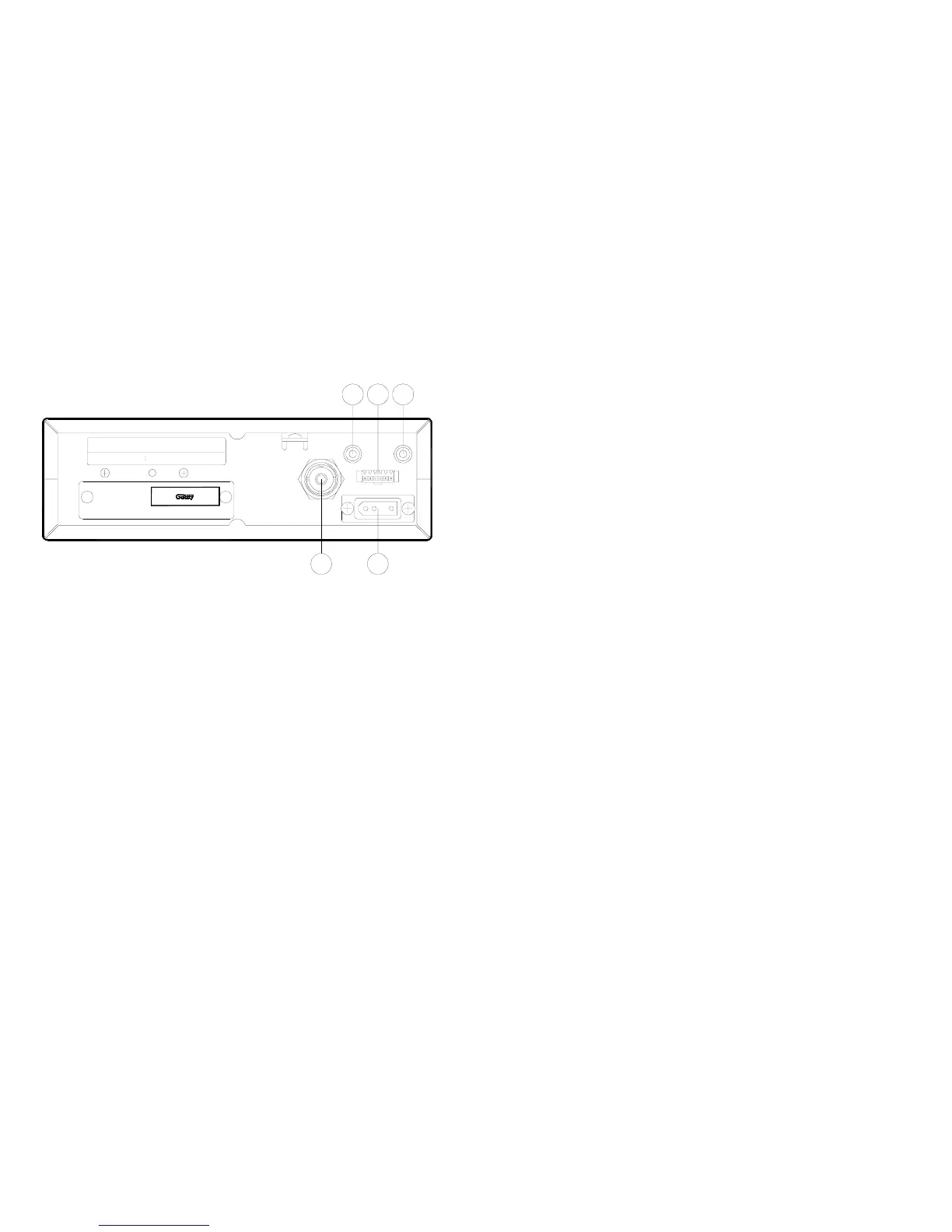

REAR PANEL
1. ANTENNA: This jack accepts a 50 ohm coaxial cable with a PL-259 type plug.
2. DC POWER: This jack accepts the 13.8V DC power cable with built-in fuse.
The power cord provided with the radio has a black and red wire. The black goes
to negative and red goes to positive.
3. PA SP: This jack is for PA operation. Before operating, you must first connect a
PA speaker (8 ohms, 4W) to this jack.
4. EXT. SP:
This jack accepts a 4 to 8 ohm, 5 watt external speaker. When the
external speaker is connected to this jack, the built-in speaker will be disabled.
5. F.C
.: This jack is used to connect the optional Galaxy FC347 six-digit frequency
counter. All connections, including DC power, are provided to the FC347 through
this jack.
- 6 -
MODEL NO. : DX 979
CB TRANSCEIVER
AM/SSB 40 CH
DATE OF MFG.:
FCC ID : MEE − DX − 979
SERIAL NO. :
1
ANT
2
- DC 13.8V +
EXT SP.
F.C.
PA SP.
3 45
This de vice comp lies with part 15 of the FCC Rules. Operation is subject
to the condition that this devicedoes not cause har mful interference.
Service M anual at www.GalaxyRadios.com
- 9 -
FREQUENCY CHART
Channel Channel Frequency Channel Channel Frequency
1 26.965 MHz 21 27.215 MHz
2 26.975 MHz 22 27.225 MHz
3 26.985 MHz 23 27.255 MHz
4 27.005 MHz 24 27.235 MHz
5 27.015 MHz 25 27.245 MHz
6 27.025 MHz 26 27.265 MHz
7 27.035 MHz 27 27.275 MHz
8 27.055 MHz 28 27.285 MHz
9 27.065 MHz 29 27.295 MHz
10 27.075 MHz 30 27.305 MHz
11 27.085 MHz 31 27.315 MHz
12 27.105 MHz 32 27.325 MHz
13 27.115 MHz 33 27.335 MHz
14 27.125 MHz 34 27.345 MHz
15 27.135 MHz 35 27.355 MHz
16 27.155 MHz 36 27.365 MHz
17 27.165 MHz 37 27.375 MHz
18 27.175 MHz 38 27.385 MHz
19 27.185 MHz 39 27.395 MHz
20 27.205 MHz 40 27.405 MHz
