MODEL:
G8 AND G12, 230CE
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
SK1316 Rev B
11/04/2005
1
3
4
6
7
8
9
2
LOWER
HEATER
KETTLE
HEATER
HEAT
LAMP
AGITATOR
MOTOR
KETTLE
H/L THERMOSTAT
FLEXIBLE
CONDUIT
RECEPTACLE
PLUG
FRAME GROUND
WHITE
TERMINAL
BLOCK
BLACK
10
19
11
12
11
WHITE
BLACK
BLACK
WHITE
BLACK
THERMOSTAT
THERMOSTAT

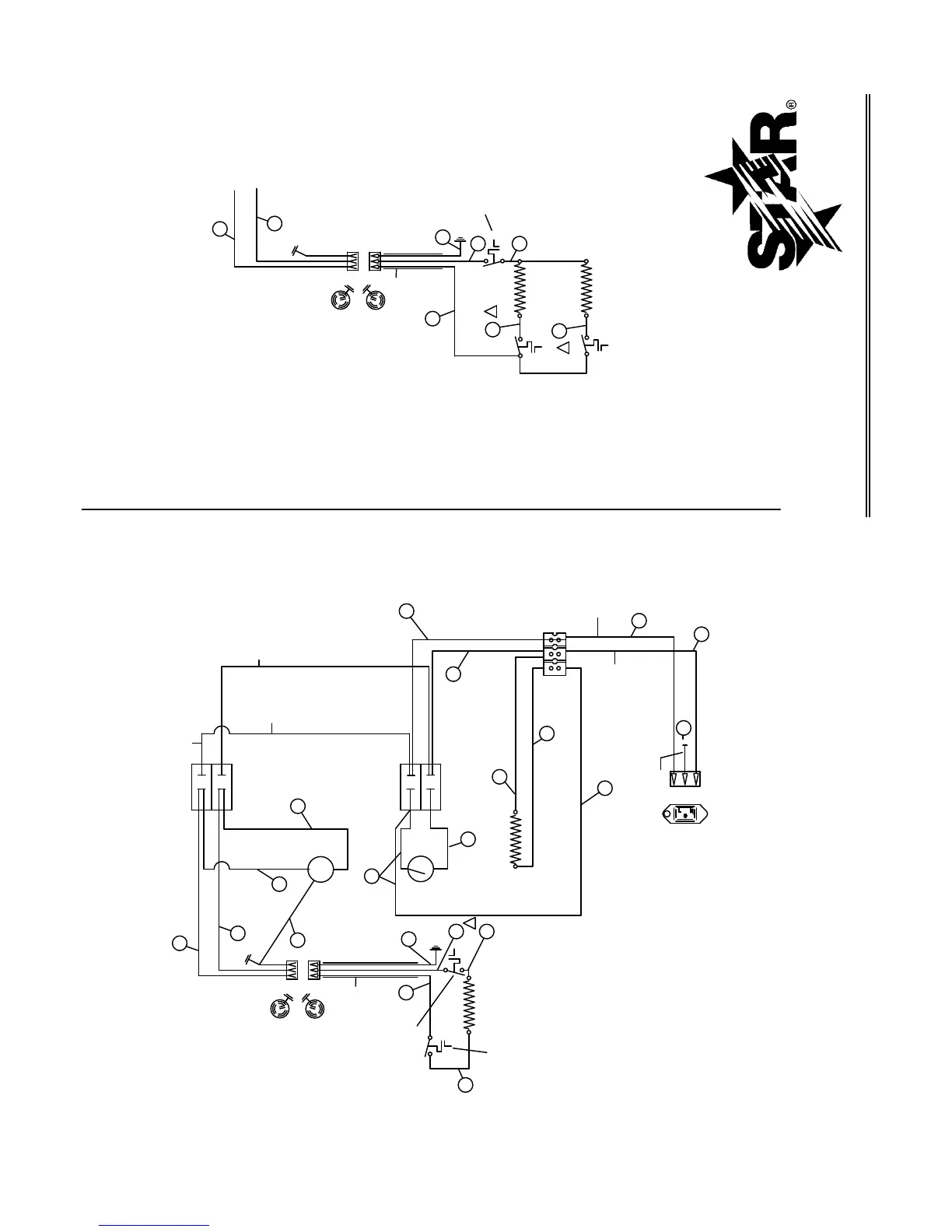

NOTE:
USE THIS DIAGRAM FOR WIRING
KETTLE WIRING OF
G8 240VE MODEL
OF MODEL G12 240VE KETTLE ONLY
ALL OTHER WIRING IS THE SAME AS SHOWN FOR MODEL
G8
13
SWITCH
BLACK
BLACK
7
WHITE
WHITE
BLACK
WHITE
BLACK
BLACK
WHITE
KETTLE
SWITCH
LAMP
NOTE:
SWITCHES ARE VIEWED FROM TERMINAL SIDE AS MOUNTED ON THE MACHINE
SWITCH LIGHT TO FUNTION PROPERLY
WIRES #1 AND #2 MUST BE CONNECTED TO SWITCH TERMINALS AS SHOWN FOR
KETTLE
HEATER
HEATER
KETTLE
RECEPTACLE
PLUG
FLEXIBLE
CONDUIT
3
BLACK
WHITE
4
G
N
L
INLET
GREEN
14
15
16
17
18
HIGH LIMIT THERMOSTAT
THERMOSTAT
17
18
17
17
17
A
A
A
5
