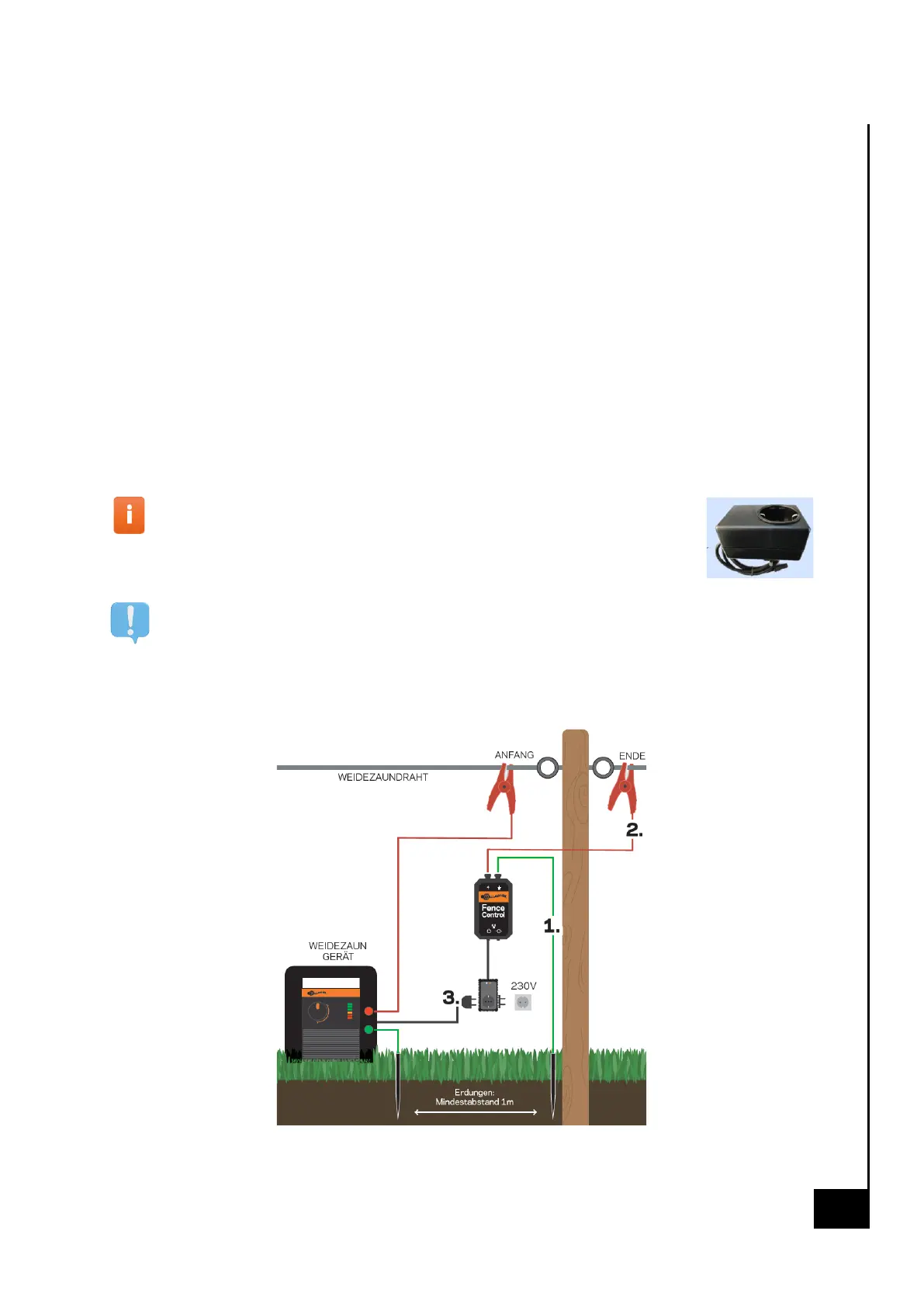

Use with a 230V energizer
1. Earthing wire - earthing pin
Connect to the earth terminal of the Fence Control (B).
Insert the earthing pin rmly into the ground at least one metre away from the earthing of
the energizer. Make sure the ground is suciently moist.
(Ground pin not included)
5. Connecon cable with crocodile clip
Connect to the measurement terminal (A) of the Fence Control.
Clamp the heart clip onto the fence wire.
2. 230V mains switch power supply unit (art. no. 090501)
Connect to the power connector of the Fence Control (C).
Insert the connecng cable of the 230V energizer into the mains switch and plug it into a
230V socket.
(230V power supply not included)
If you have the 230V mains switch, connect the power supply of your
energizer to the Schuko plug of the mains switch. This allows you to easily
switch your energizer on and o via an "on" or "o" SMS command.
Ensure soil moisture
If the earth into which the earthing pins are inserted is too dry, the fence voltage cannot build
up and the Fence Control cannot measure the fence voltage correctly.
