5-Step Installa on Guide
Step 2. Install the earth system
Buildings and gates for example, can become electrifi ed with fence voltages if the
energizer is improperly earthed.
Follow earthing instruc ons carefully.
HobbyMaster
M50

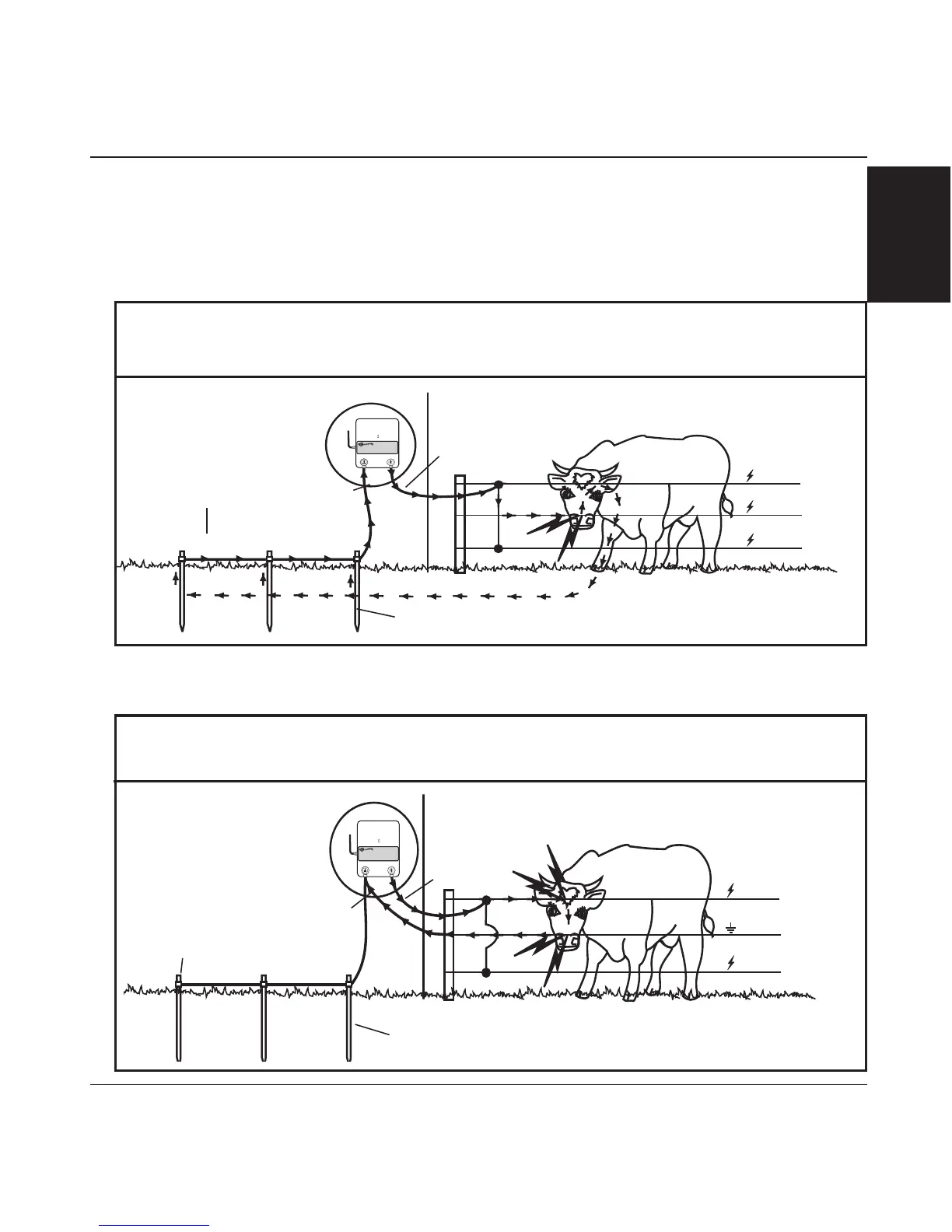

An earth wire return system
(for areas with poor earthing systems)
The animal must touch both a live wire and
the earth wire to feel an eff ec ve shock
Earth
Live
Live
Earth Clamp
(G8760)
GREEN
RED
Earth Stake (G8790)
b
The most eff ec ve place for an earth system is in con nuously damp soil, see
illustra on a. For dry areas with poor earthing condi ons, see illustra on b.
HobbyMaster
M50
Earth Clamp
(G8760)
All live wire system
(for areas with good earthing systems)
The animal must touch the wire and
the ground to feel a shock
Live
GREEN
RED
Earth Stake (G8790)
Live
Live
a
