Assembly Instructions

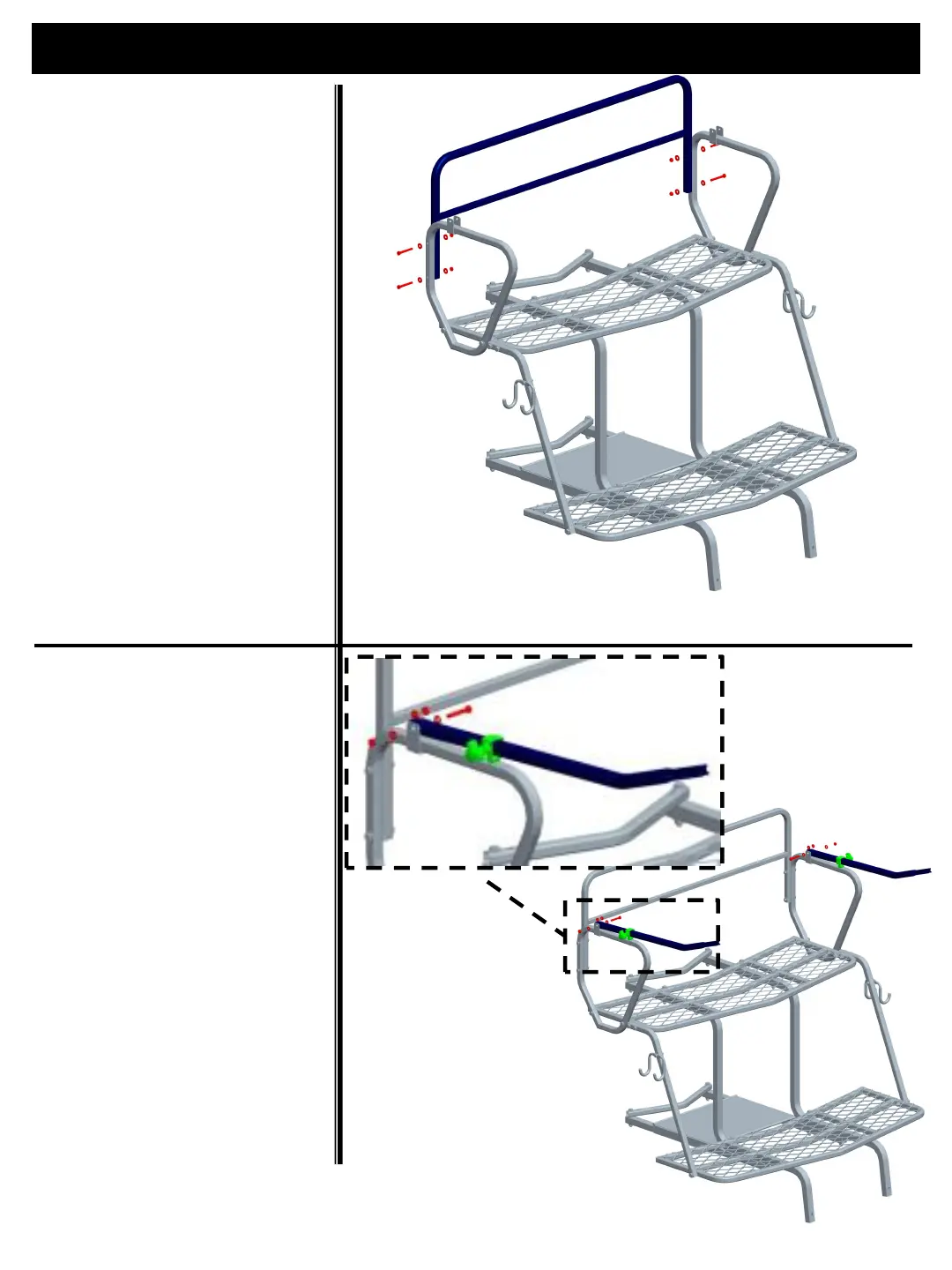

Step 7:
Locate Back Rest Frame (#5).
Install the Back Rest Frame
(#5) onto the Arm Rest (#3)
using four (4) M6x50 Bolts,
eight (8) Steel Washers and
four (4) Locknuts as shown in
Figure 7.
19
Figure 7
Install Back Rest Frame
Locate two Shooting Rail
Support Bars (#11). Slip two (2)
Steel Bushings with M8x25
Handwheel Bolts into the
Shooting Rail Support Bars
(#11). Install the Shooting Rail
Support Bars (#11) onto the
two brackets of Arm Rests (#3)
using two (2) M6x40 Bolts, four
(4) Nylon Washers, four (4)
thick Nylon Washers and two
(2) Locknuts as shown in
Figure 8.
Note: Please place two (2)
Thick Nylon Washers
between the Arm Rest
Bracket and the Shooting
Rail Support Bar.
Step 8:
Figure 8
Install Shooting Rail
Support Bars
To Next Page
