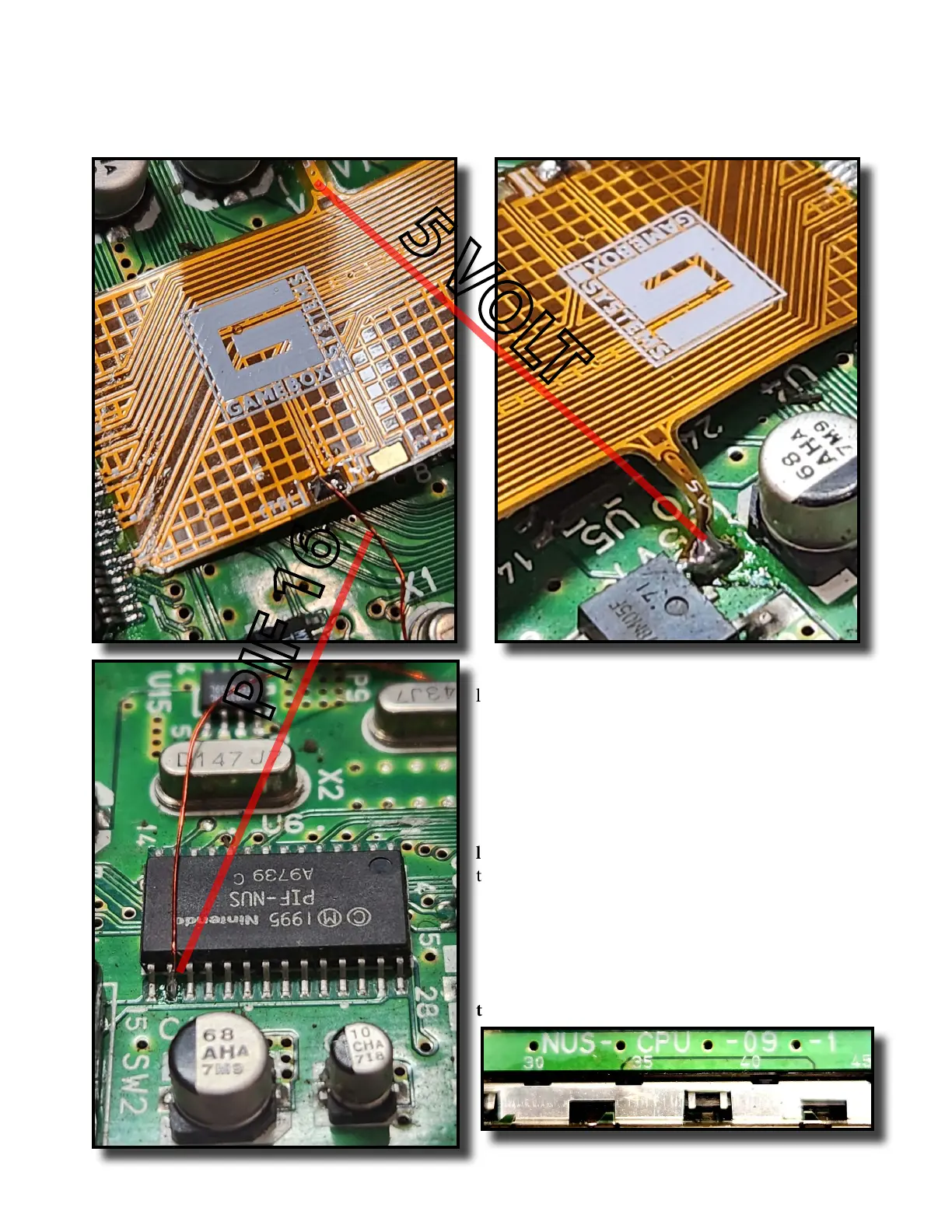

Solder the ex contact to the N64 motherboard
location marked “5v” in silkscreen (shown above).
FAILURE TO MAKE THIS CONNECTION
PROPERLY WILL RESULT IN THE 64HD PCB FAILING
TO BOOT WHEN THE CONSOLE POWERS ON.
For N64 motherboard revisions 01-05 (shown
le). Use a small amount of 30 gauge wire to connect
the CTRL breakout pad on the RCP ex cable to PIN 16
on the PIF. e Reset pad isn’t populated.
For motherboard revisions 06-09 please see the next page.
e motherboard revision can be found near
the cartridge slot (shown below).
Page 5
RCP Flex Cable Additional Connections
STEP 2
5 VOLT
PIF 16
To Next Page
