Gamko FLEXBAR X/2 Series - Fitting Storage Racks; Removing Drawers

34
Remove drawer
1 Open the drawer
2 Where lighting is used, disconnect the lighting plug
on the (righthand) inner face of the stile (A).
3 Take hold of the front and rear
4 Raise the front
5 Slide the drawer forwards
6 Remove the drawer from the rails
Install drawer
1 Place the rear with the openings over the pins (B)
2 Place the front with the openings over the pins (C)
3 Where lighting is used, connect the lighting plug
located on the (righthand) inner face of the stile (A).
B
C
A

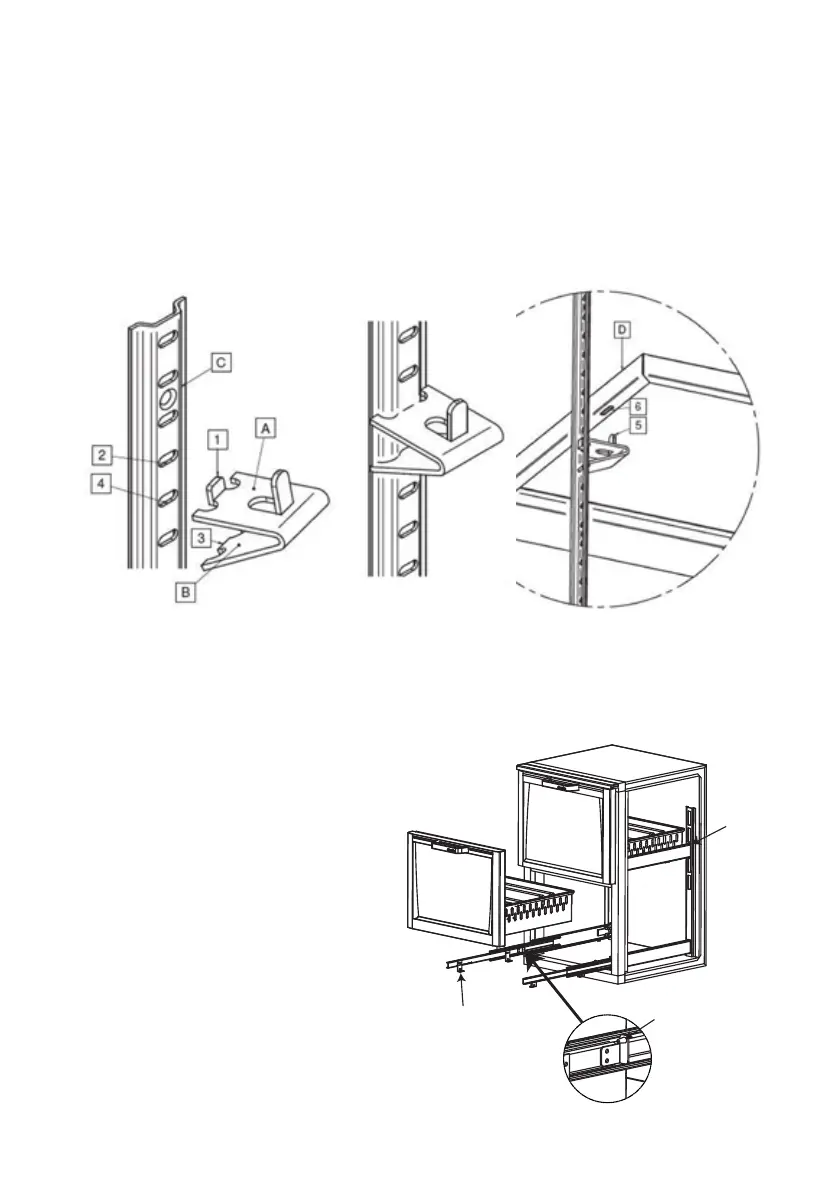

Fitting storage racks
1 Hook pin (1) in openings (2) of rails (C).
2 Push bottom part (B) towards side (A).
3 This causes pin (3) to slot into the next opening (4) in the rails.
4 Fit the other 3 pins at the same height.
5 Place the storage rack (D) sliding the pins (5) in the openings (6).
Removing drawers
