Gamko X/VS20 - Page 13

Flexbar
21-1-2009
edda
Algemene installatie instructie
modifications
destination
Gamko Holding BV
Mon Plaisir 75
4879 AL Etten-Leur
Tel.(0)76-5087500
The Netherlands
name
drawing nr.
draftsman date
196169
1 02/09 DMX + CELS 5611 1 02/09 DMX + CELS 5611
Blad 13 van 13
54 56
57
58
CELS
55
Keyswitch
013050129
Cuff round
013050129
Retaining nut
013050129
Relais block
013050130 (2x)

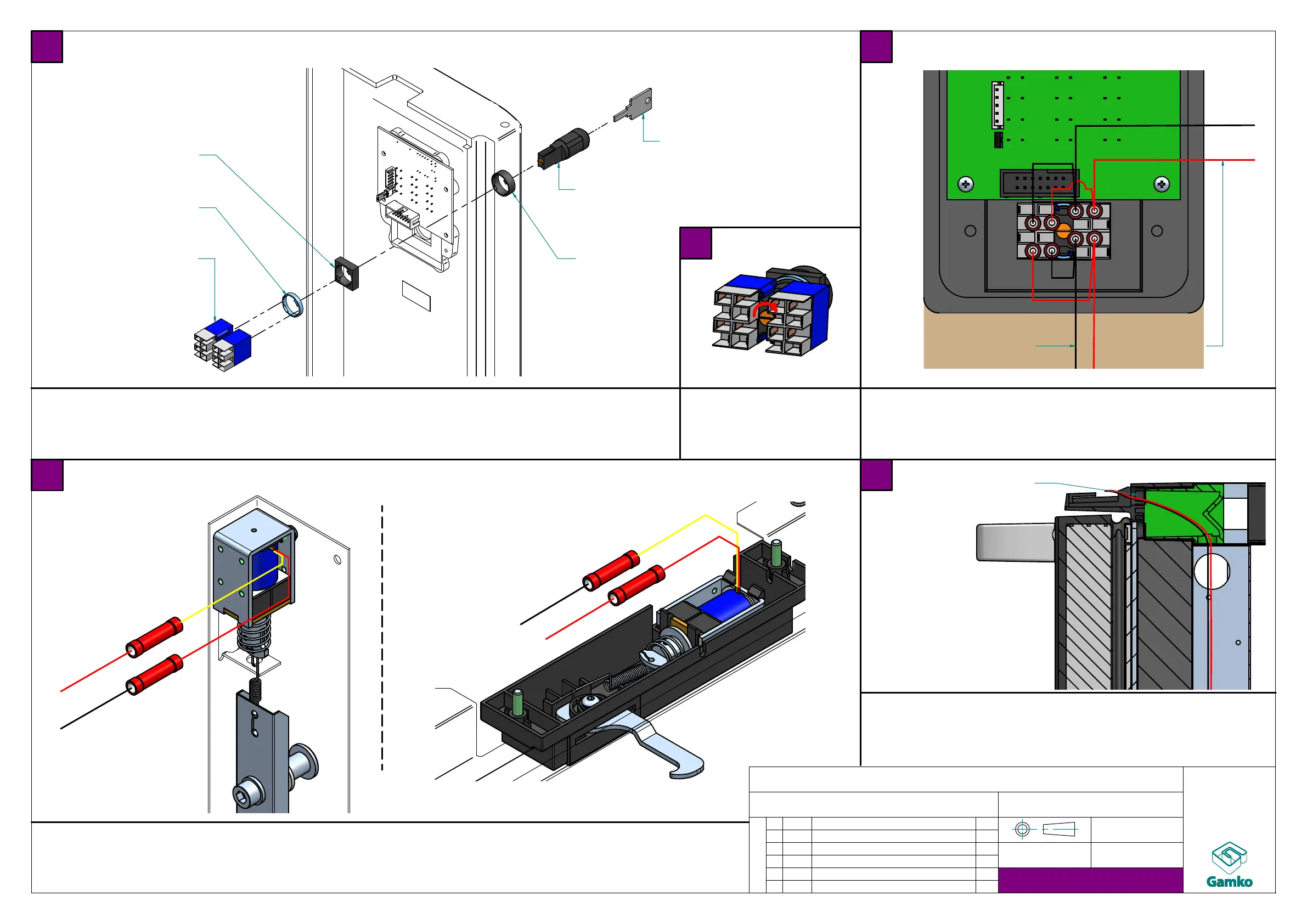

(improved) assembly order keyswitch lock relais blocks wiring diagram relais blocks CELS keyswitch
ATTENTION!
Red-black twincable connected differently on drawer segment
Make sure cable transit hole is sealed
CELS
Assembly keyswitch
CELS
Connecting keyswitch
CELS
connecting storagesegments
to 24V to junctionbox
seal hole
after cable transit
Key
013050138
Cuff square
013050142
GB
