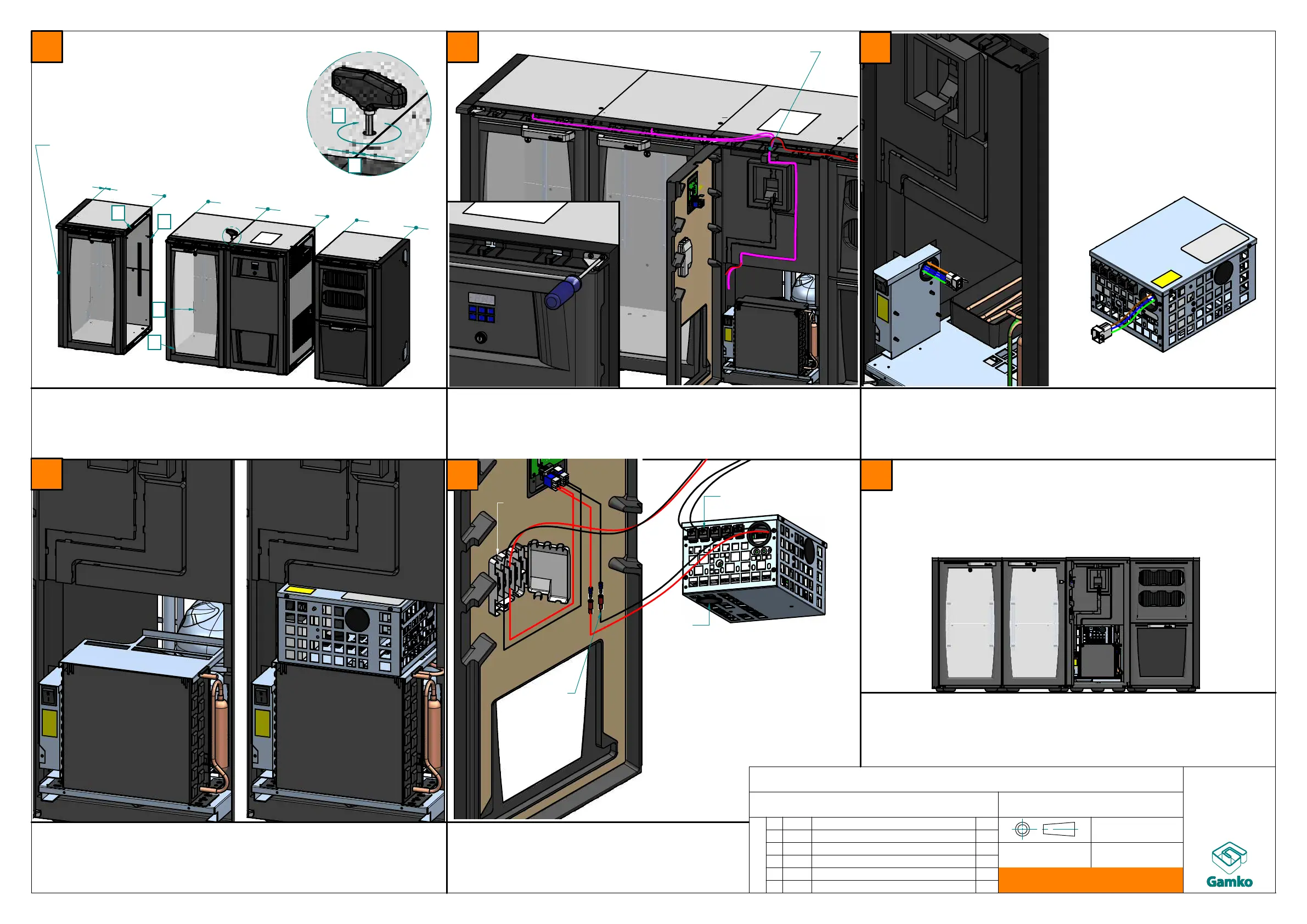

When equipped with electrical accessoires
(such as LED, CELS or heating wire)
Open machinefront and lead wires through cable duct and
down behind machinefront
1 Place trafobox bracket over condensor
2 Place trafobox
Neatly tue up excess cables
Check if all accessoires are working properly
Lead cables through hole
Connect trafobox
Plug in connectors for LED (and DMX) in
the trafobox.
Plug in connectors for CELS and 24V, in
the junctionbox behind the machinefront
Recommended order: First segment
left of X/MU and endpanels
1th
2nd
2nd
1th
Couple segments
Turn hexagon key (6mm) on all 4 hooks, clockwise on
outside, counter-clockwise from inside segment
2-way action: I hook (make sure they "hook" properly)
II pull (max. 4 "clicks")
place sealing tape
between X/EP and segment
1th
