Algemene installatie instructie
modifications
destination
Gamko Holding BV
Mon Plaisir 75
4879 AL Etten-Leur
Tel.(0)76-5087500
The Netherlands
name
drawing nr.
draftsman date
196169
1 02/09 DMX + CELS 5611 1 02/09 DMX + CELS 5611
Blad 3 van 13
10
11
12
X/1HB X/1HB
X/1HB
15
X/1HB
13
14
X/1HB X/1HB
X/1HB
1
2
3
4
A
DETAIL A
1
2
2
4
3
5
6
I
II

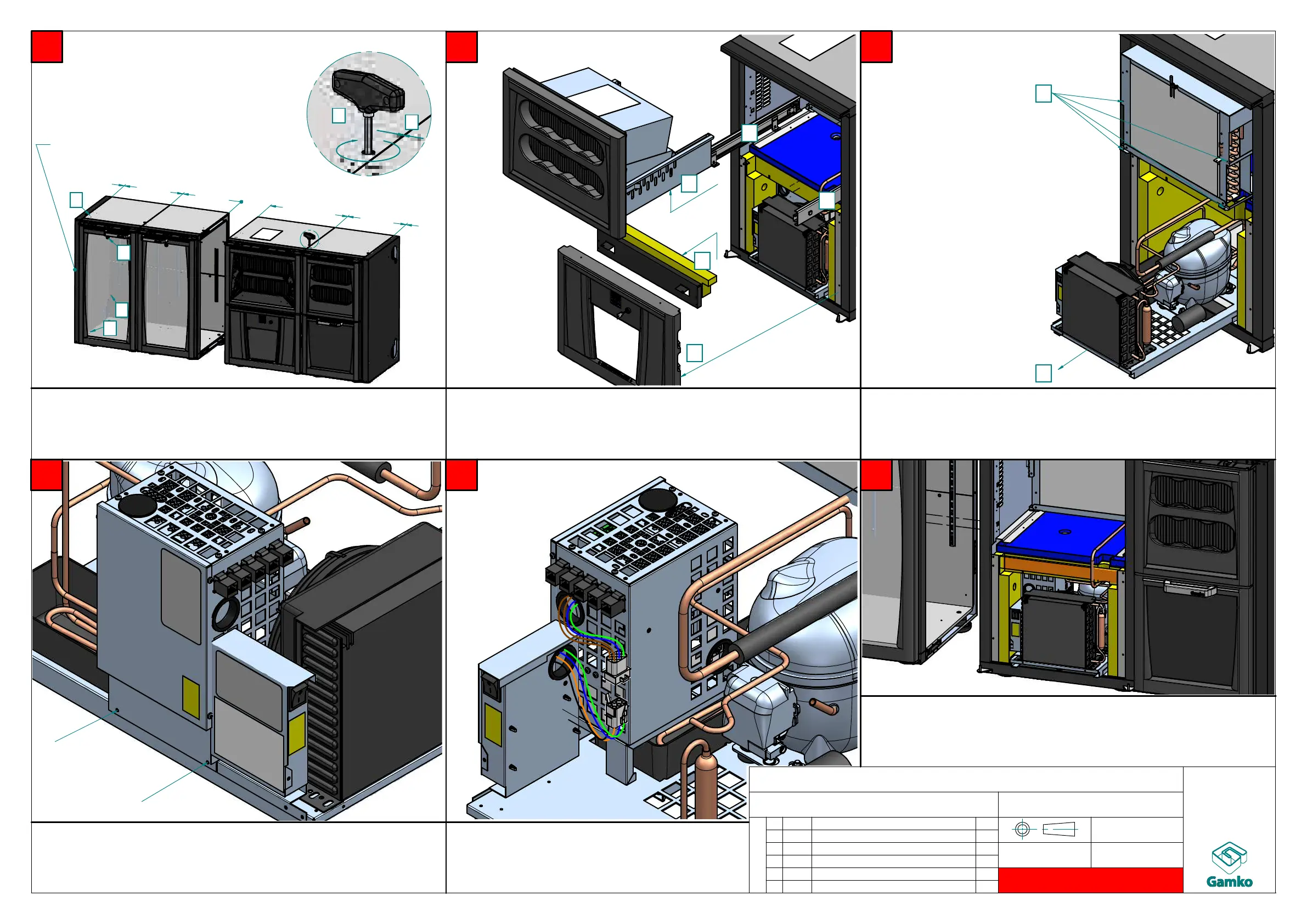

When equipped with electrical accessoires
(such as LED, CELS or heating wire)
remove (1) horizontal bottle drawer, (2) drawer-slides,
(3) machinefront and (4) cross beam
5 Remove screws from evaporator cover
6 Pull out unit approximately halfway
Mount trafobox behind electrobox
Connect trafobox
Slide unit back in place
X
X
Recommended order:
First endpanels.
Do NOT couple segment left of X/1 yet.
2nd
1th
2nd
1th
place sealing tape
between X/EP and segment
Couple segments
Turn hexagon key (6mm) on all 4 hooks, clockwise on
outside, counter-clockwise from inside segment
2-way action: I hook (make sure they "hook" properly)
II pull (max. 4 "clicks")
