Algemene installatie instructie
modifications
destination
Gamko Holding BV
Mon Plaisir 75
4879 AL Etten-Leur
Tel.(0)76-5087500
The Netherlands
name
drawing nr.
draftsman date
196169
1 02/09 DMX + CELS 5611 1 02/09 DMX + CELS 5611
Blad 4 van 13
19
21
X/1HB
X/1HB X/1HB
X/1HB
S
S
20
16
24V
CELS
LED
DMX
X/1HB
18
3
2
1
1
230392A
006040402
X/1HB
X/1HB
17

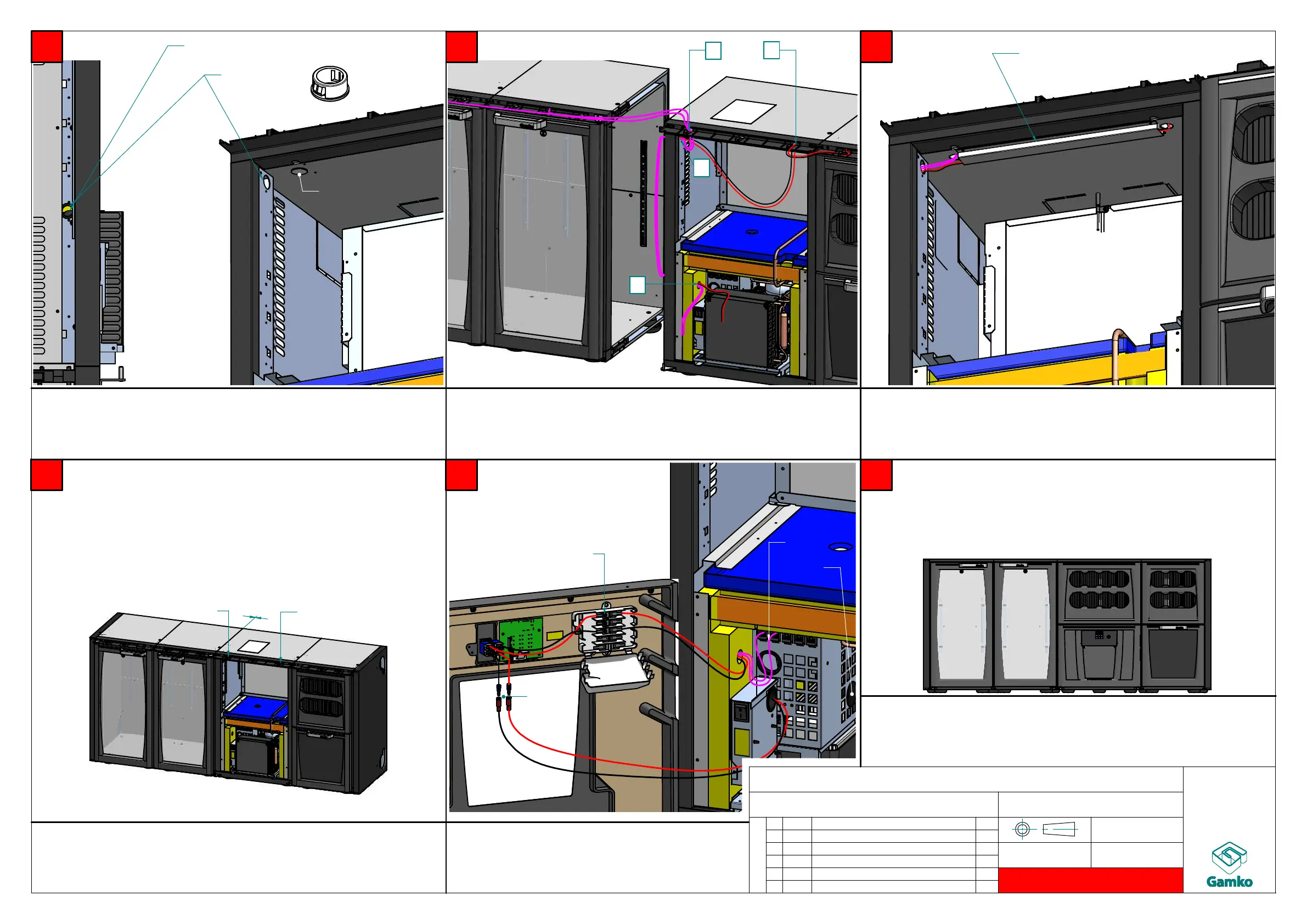

Cut out insulation
Place grommet in slider-profile
Remove cap(s)
1 lead cables through the tubes into the segment
2 then out through slider-profile
3 and back in through the previous made hole
Mount cable duct profile
Couple segments left of X/1HB
Seal all holes connecting cold and warm areas
(holes marked with "S")
Plug in connectors for LED (and DMX) in
the trafobox
Plug in connectors for CELS and 24V in the
junctionbox behind the machinefront
Neatly tie up excess cables and reassemble X/1HB
crossbeam, machinefront, sliders, bottledrawer (see pos 11)
Check if all accessoires are working properly
GB
Cut out insulation
Remove cap(s)
