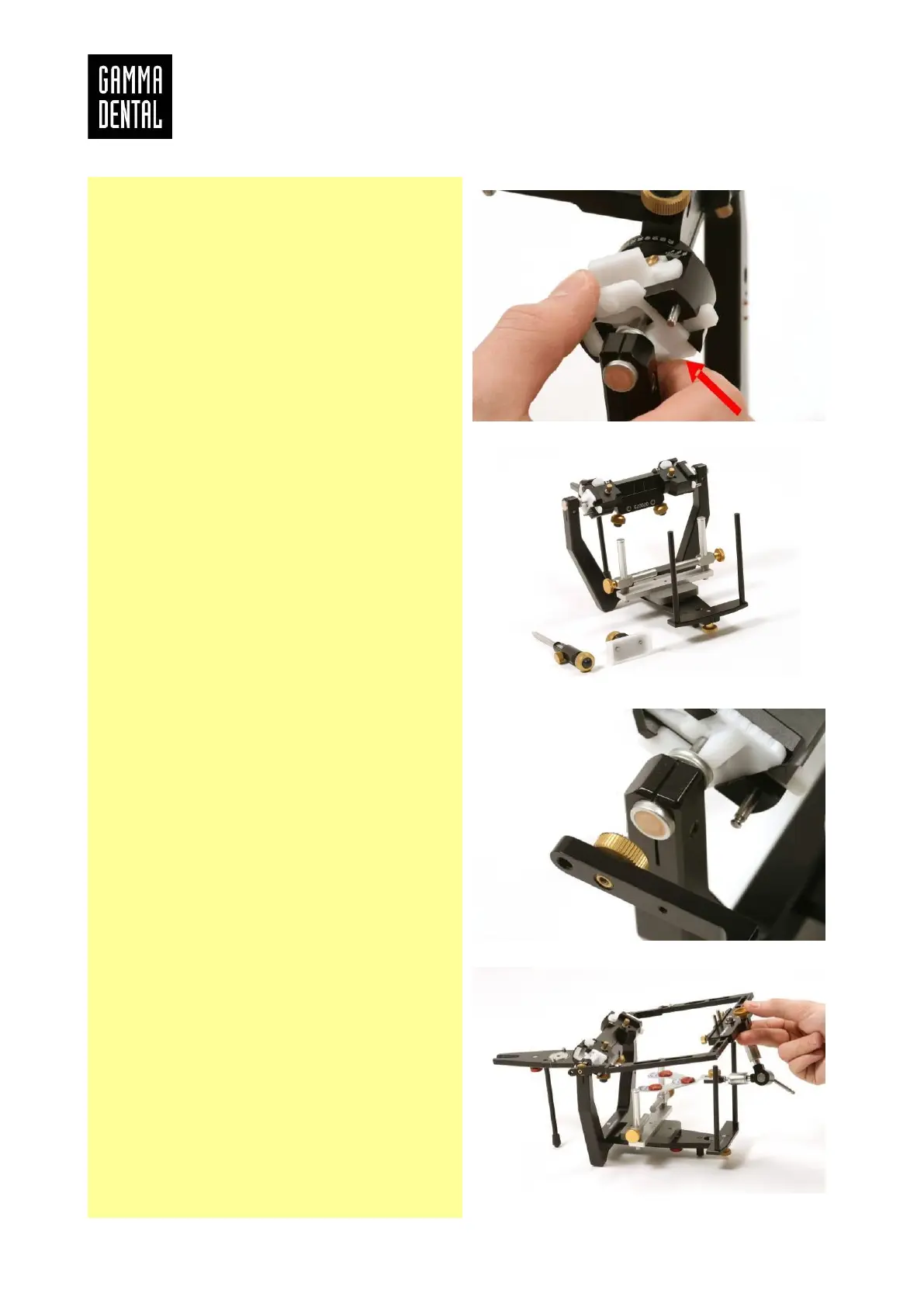

Close the centric locks (left and right) of the ar-
ticulator. For more exact results, we recom-
mend that you insert the black SCI inserts into
the condylar housings in advance. The articula-
tor should be adjusted symmetrically (e.g., 40
SCI).
Preparing the articulator for mounting: first, re-
move the incisal table and the incisal pin unit;
then, the face-bow support (06-230480) and the
bite fork support (06-230585) must be attached.
The correct position of the face-bow support is
achieved, when the writing can be read nor-
mally. The supporting beams of the bite fork
support, equipped with a pressure spring, must
be moved downwards and fixed.
The upper part of the articulator remains open,
resting on the upper index pin.
Move apart the side arms of the Reference AB
face-bow leading parallel and remove the na-
sion support from the bow.
The adapter plates can now be tilted and fixed
to the corresponding casings. To do so, the Ref-
erence AB face–bow is pushed together gently
but firmly, until both guides slide firmly in place
on the articulator, without wobbling. After lock-
ing it in place, the face-bow is placed on the bow
support, and the anterior bow fixing screw is
tightened, thus locking the bow.
