Reference SL Articulator and Face Bow Systems
5.4.2 Using Condylograph Set
Mounting the upper jaw model in the Reference
SL articulator, according to the kinematic (ex-
act) hinge axis and individual reference plane,
can also be carried out using the Condylograph
set (04-GCR309).

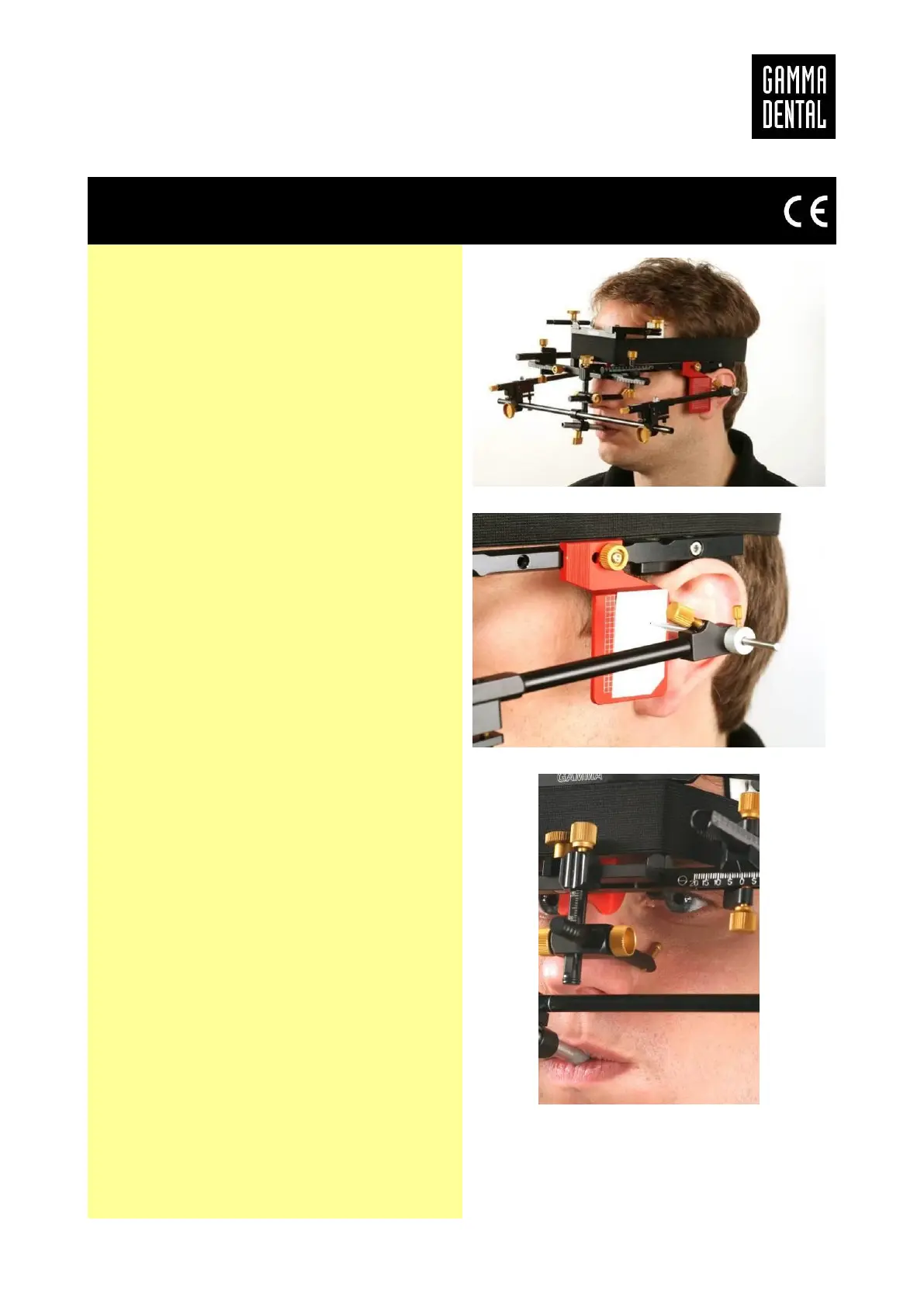

With the Condylograph face bow, you can local-
ize both the right and left hinge axis points di-
rectly on the patient and mark them on writing
labels stuck to the red flags.
In addition, the anterior reference point is
marked with the reference point indicator. With
these three points (anterior reference point,
right and left hinge axis points) you can create
a reference plane with a zero-line (hinge axis in
Reference Position), which will be transferred
into the articulator as follows:
