GAMMA SYSTEM GP02R User Manual

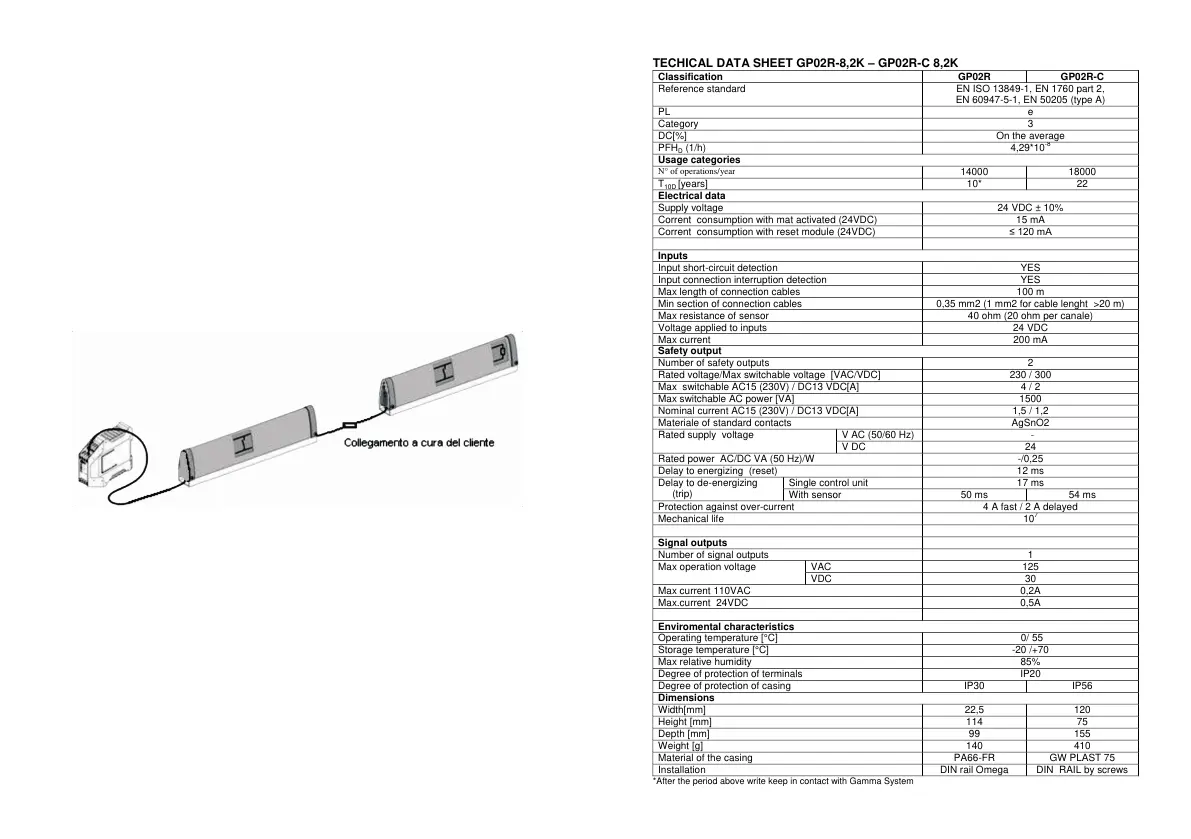

TECHICAL DATA SHEET GP02R-8,2K – GP02R-C 8,2K
Classification
GP02R
GP02R-C
Reference standard
EN ISO 13849-1, EN 1760 part 2,
EN 60947-5-1, EN 50205 (type A)
PL
e
Category
3
DC[%]
On the average
PFH
D
(1/h)
4,29*10
-8
Usage categories
N° of operations/year
14000
18000
T
10D
[years]
10*
22
Electrical data
Supply voltage
24 VDC ± 10%
Corrent consumption with mat activated (24VDC)
15 mA
Corrent consumption with reset module (24VDC)
≤ 120 mA
Inputs
Input short-circuit detection
YES
Input connection interruption detection
YES
Max length of connection cables
100 m
Min section of connection cables
0,35 mm2 (1 mm2 for cable lenght >20 m)
Max resistance of sensor
40 ohm (20 ohm per canale)
Voltage applied to inputs
24 VDC
Max current
200 mA
Safety output
Number of safety outputs
2
Rated voltage/Max switchable voltage [VAC/VDC]
230 / 300
Max switchable AC15 (230V) / DC13 VDC[A]
4 / 2
Max switchable AC power [VA]
1500
Nominal current AC15 (230V) / DC13 VDC[A]
1,5 / 1,2
Materiale of standard contacts
AgSnO2
Rated supply voltage
V AC (50/60 Hz)
-
V DC
24
Rated power AC/DC VA (50 Hz)/W
-/0,25
Delay to energizing (reset)
12 ms
Delay to de-energizing
(trip)
Single control unit
17 ms
With sensor
50 ms
54 ms
Protection against over-current
4 A fast / 2 A delayed
Mechanical life
10
7
Signal outputs
Number of signal outputs
1
Max operation voltage
VAC
125
VDC
30
Max current 110VAC
0,2A
Max.current 24VDC
0,5A
Enviromental characteristics
Operating temperature [°C]
0/ 55
Storage temperature [°C]
-20 /+70
Max relative humidity
85%
Degree of protection of terminals
IP20
Degree of protection of casing
IP30
IP56
Dimensions
Width[mm]
22,5
120
Height [mm]
114
75
Depth [mm]
99
155
Weight [g]
140
410
Material of the casing
PA66-FR
GW PLAST 75
Installation
DIN rail Omega
DIN RAIL by screws
*After the period above write keep in contact with Gamma System

GAMMA SYSTEM GP02R Specifications

General

Brand	GAMMA SYSTEM
Model	GP02R
Category	Control Unit
Language	English
