6

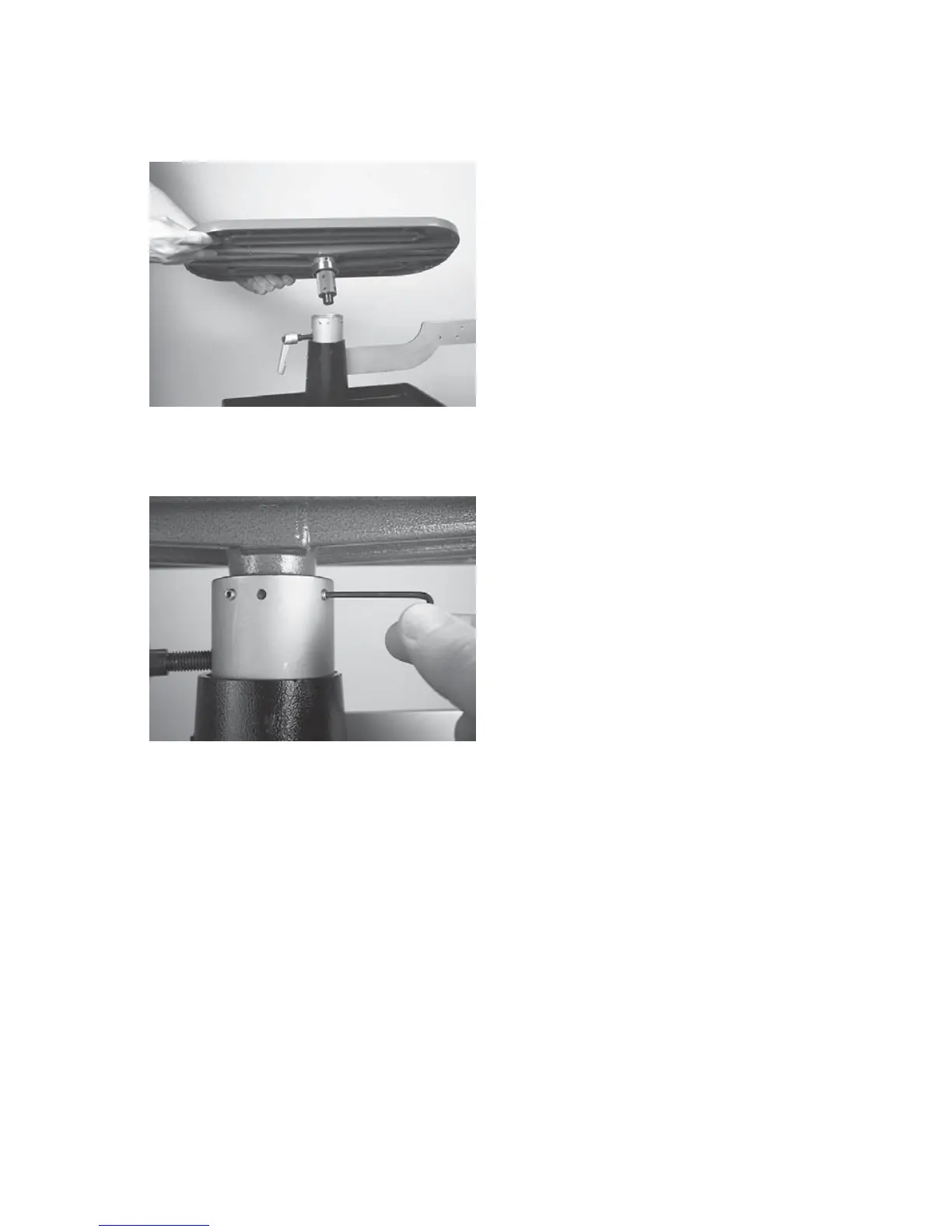

Retract the four set screws around the top
of the turntable tube to provide clearancefor
installing the turntable. Carefully lower the
turntable into the tube until it seats fully into
the tube and rests against the bearing lo-
cated at the botom of the tube.
ASSEMBLY INSTRUCTIONS
Tighten the four set screws located at the
top of the turntable tube until they contact the
bearing located on the turntable pin. Tighten
the screws in a crossing pattern from one
side to the next to keep the bearing on the
turntable pin centered in the tube.
