Installation and Operation Instructions
15

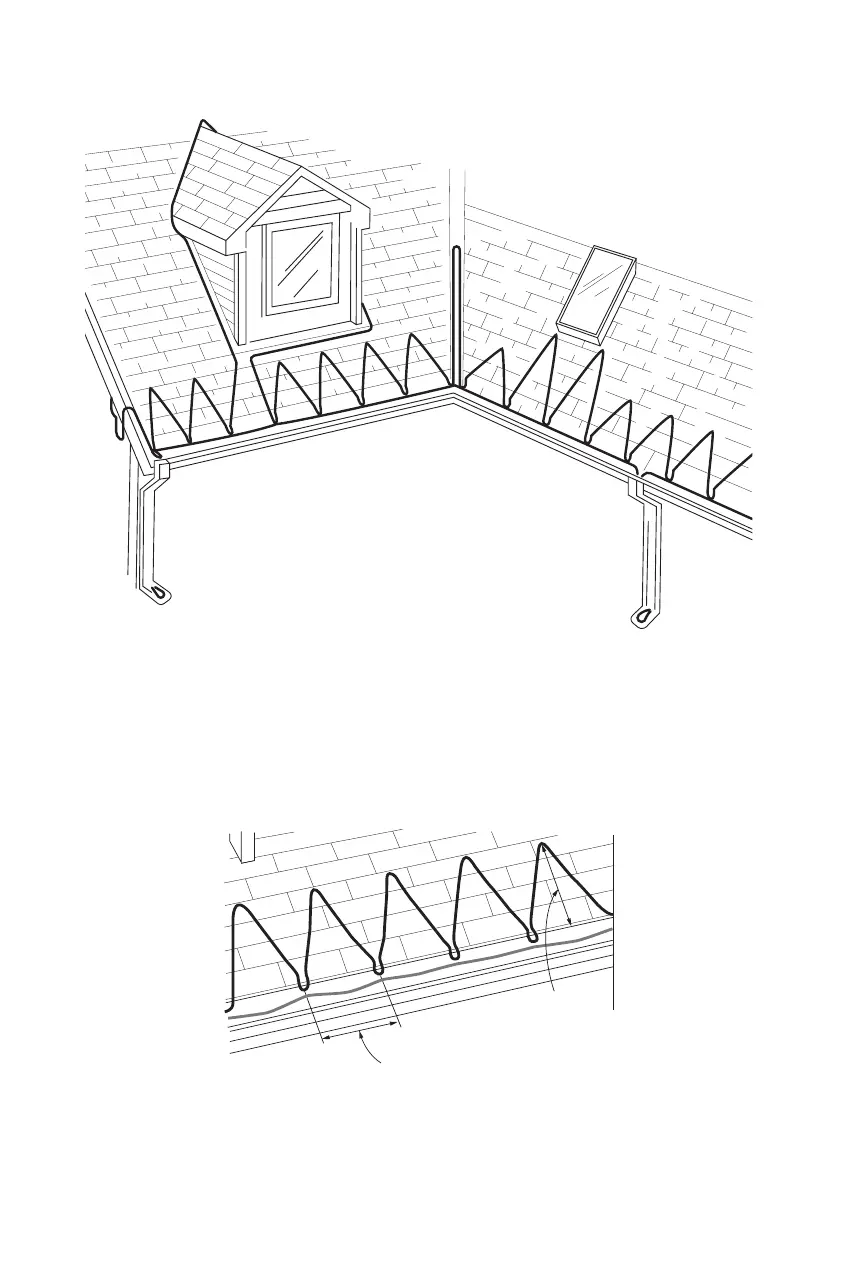

Figure 3. A typical arrangement of a cable
along a roof line and in gutters/drainage pipes
Figure 4. An example of the layout of the cable on the roof:
as a triangles along the roof line.
Example of Heating Cable Layout on the Roof:
The heating cable laid along the edge of the roof is laid out in accordance with
Figure 4. To determine the height of the triangles, measure the width of the
eave depth. The height of the triangle should be several inches higher than the
width of the eave depth. The base of each triangle should have a width of about
24-inches.
Triangle Base
(24 inches)
Triangle Height
(See Table 4)
