Installation and Operation Instructions
17
Example for Valleys:
The cable should be laid up and back down at least 3-feet, as shown in Figure 6.
Example for Attic Windows:
The cable should be laid up and around all attic windows, as shown in Figure 7.

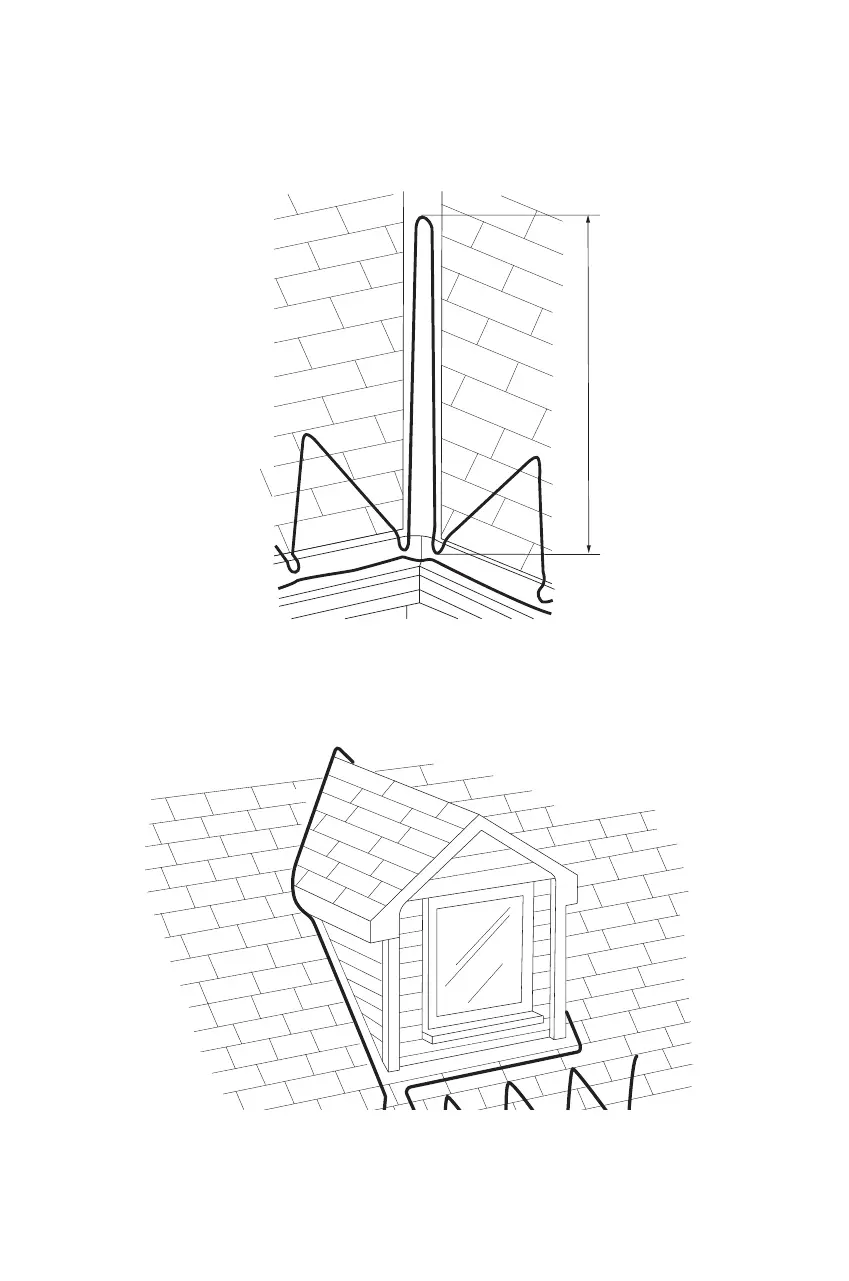

Figure 6. An example of the location of the cable in the valley
Figure 7. An example of the location of the cable around the attic window
Not less
than 3 ft
