GANSHORN Medizin Electronic GmbH Service Manual Ref.No. 03 140 0 046
PowerCube-Ergo-CASE_ENG_rev.02, 23.11.2012 chapter 3, Disassembly, page 6of 10
_____________________________________________________________________
How to Split the Electronic unit into Electronic Unit Holder, Controller Module
and Analog Module
1) Remove the electronic unit correctly from the PowerCube
2) Unscrew the four screws connecting the elements
3) Detach the two circuit boards carefully
4) To detach the electronic unit holder from the Controller Module, unscrew the two screws at the
left and the two bolts at the right
To assemble the modules again perform the same steps backwards
After replacing one or both modules of the device, please perform:
1) Suction flow adjustment (see chapter 6, Troubleshooting, checks and adjustments)
2) Volume calibration of the pneumotach “Blendenspirozeptor”
3) Gas calibration

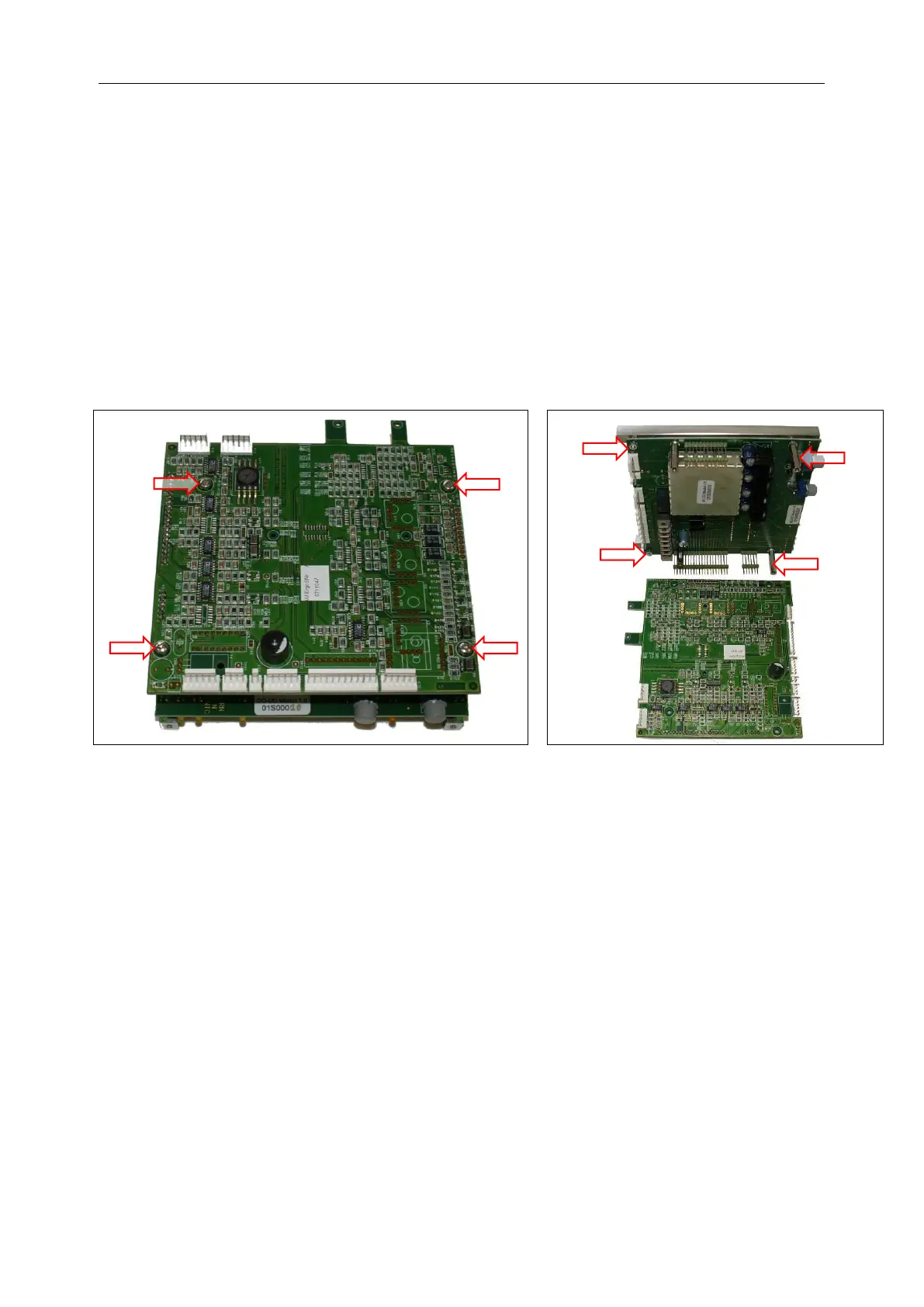

Pict.: Electronic unit with attachment screws Pict.: Controller Module (above)
and Analog Module (below)
