GANSHORN PowerCube-Ergo - Analog Module Board Layout

GANSHORN Medizin Electronic GmbH Service Manual Ref.No. 03 140 0 046
PowerCube-Ergo-CASE_ENG_rev.02, 23.11.2012 Chapter 4, circuit diagrams and board layouts, page 4 of 6
Analog Module 1.3 – Board Layout

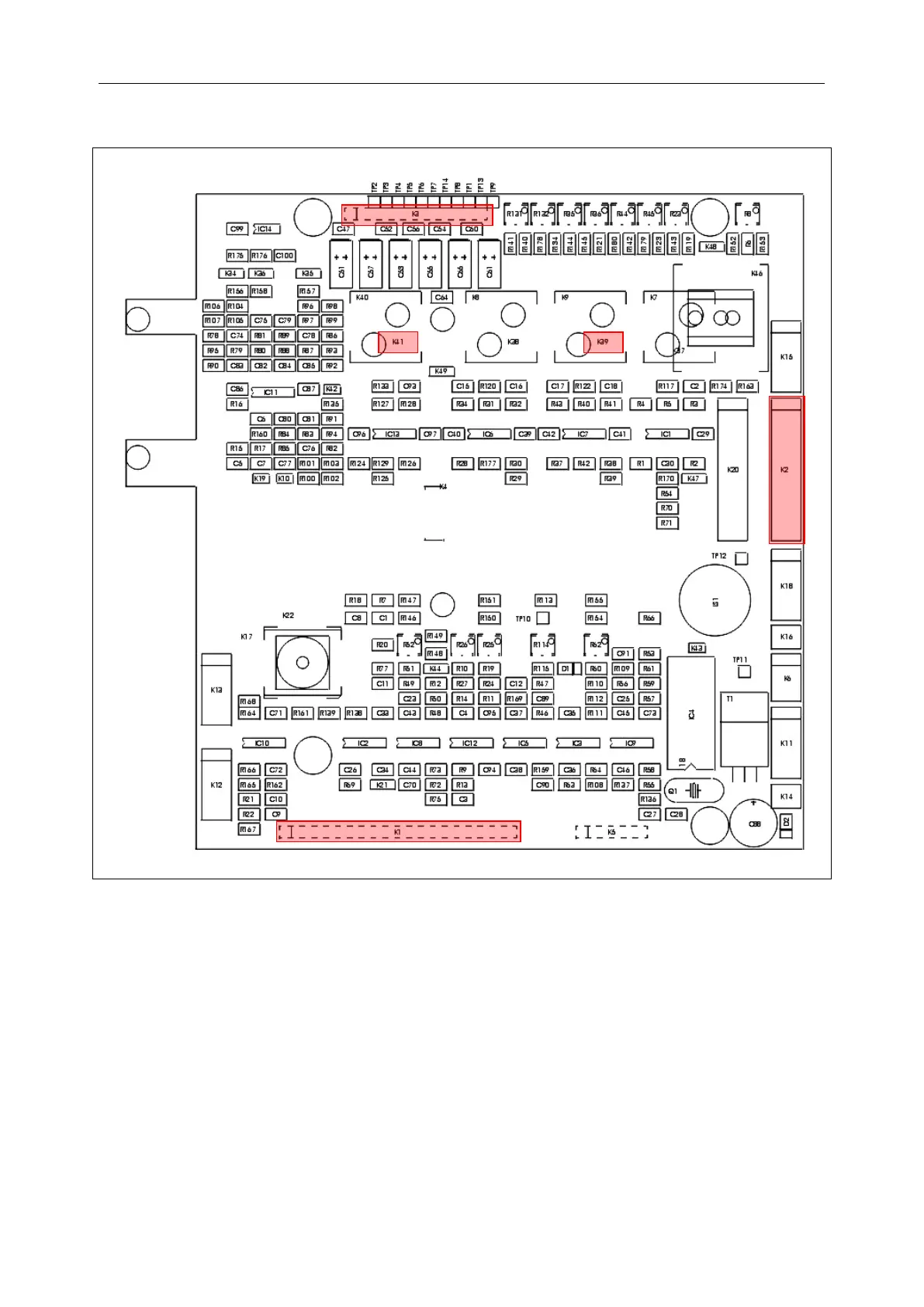

Pict.: Analog Module 1.3 with connectors (red)
