Trouble Shooting

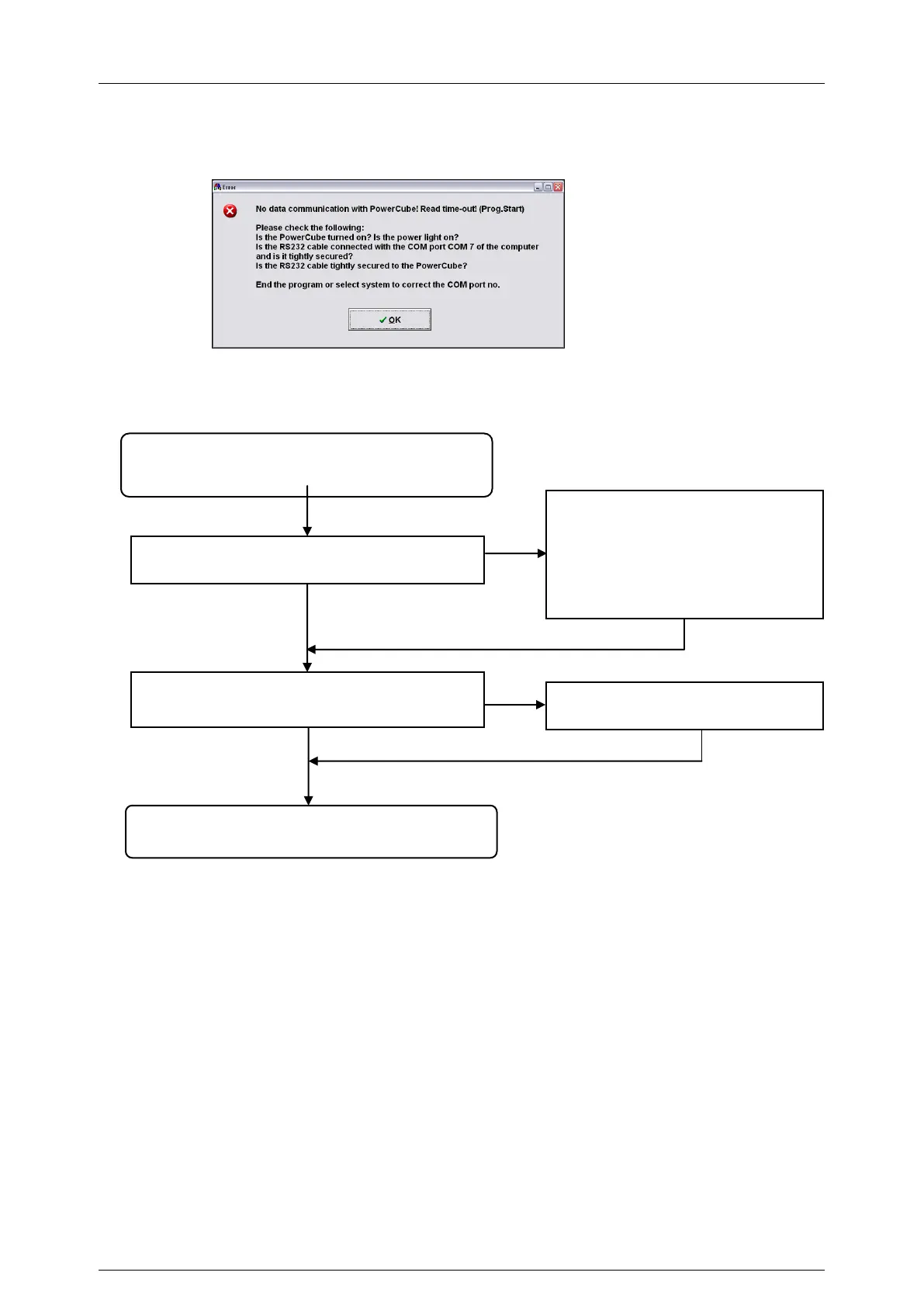

Flow Chart for Error Analysis “No Data Communication with PowerCube”
Pict.: Error message “No data communication with PowerCube”
"No data communication with PowerCube"
Does the power indicator on the front of the PowerCube
light up?
NO
YES
1) Switch on the PwC
2) Check that the device is connected to the
mains
3) Check / replace fuse on the Controller
Module
4) Check / replace the Controller Module
OK
Start LF8: the PwC confirms the connection with two
beeps?
NO
1) Check / replace the Controller Module
YES
