3.5 Detaching the GAT Vending 6100 BA from the Mounting Plate
To detach the GAT Vending 6100 BA from the mounting plate, the supplied GAT Reader WK special tool is
required. The procedure for detachment is as follows.
► Insert the "GAT Reader WK" special tool (2) with its long side from underneath into the opening (1) until the
hook is released. Keep the GAT Reader WK in this position.
► Slide the GAT Vending 6100 BA upwards.
► Lift the GAT Vending 6100 BA away from the plastic mounting plate. Ensure the connection cable is not
damaged.
► Disconnect the connection cable from the RJ 45 plug.
o The GAT Vending 6100 BA can now be removed.
1 ....... Opening for access to the securing hook
2 ....... GAT Reader WK

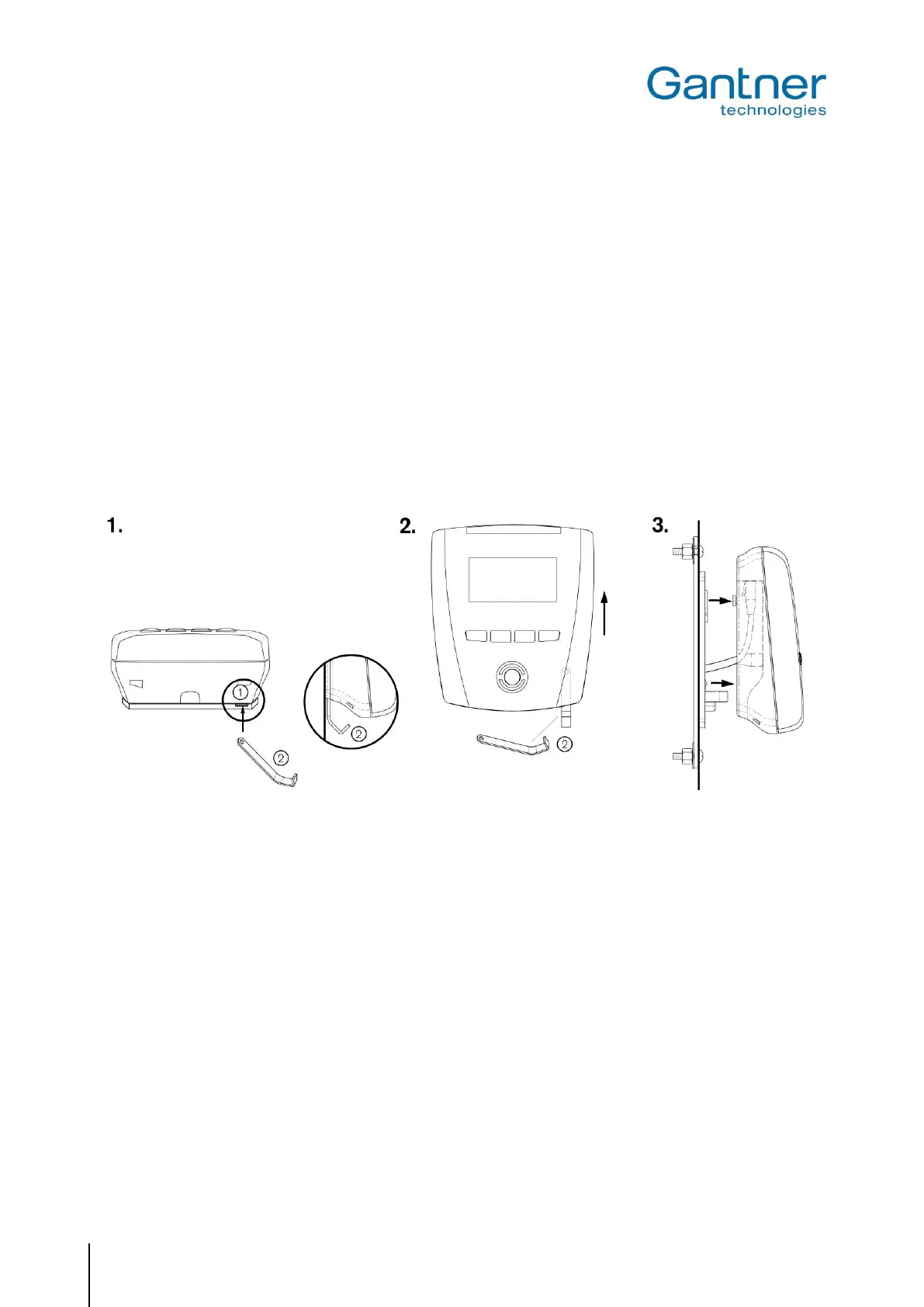

Figure 3.6 – Detaching the GAT Vending 6100 BA from the plastic mounting plate
