Garden GP00 - Electrical Wiring Diagram

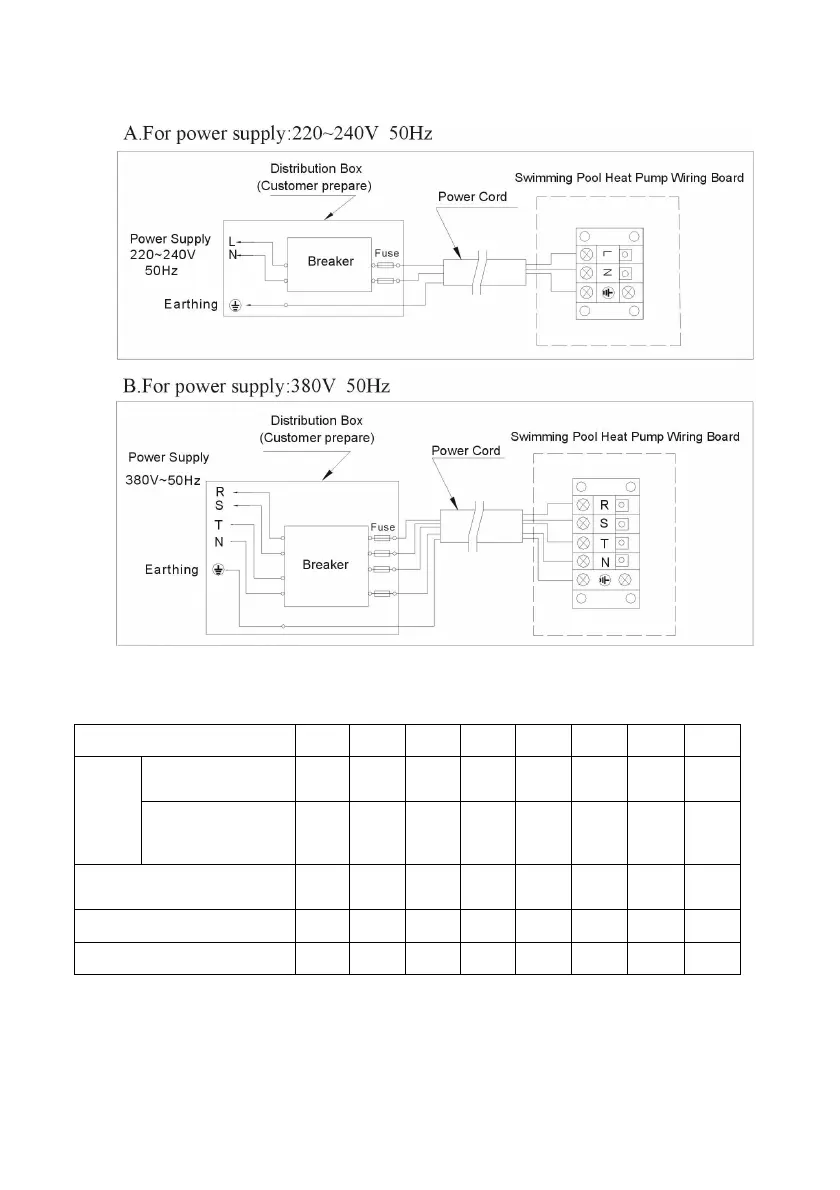

2- Electrical Wiring Diagram
Note：The swimming pool heater must be connected to the
earth rod.
Options for circuit breakers and wire specs
※ Above data is subject to modification without notice.
MODEL GP00 GP01 GP02 GP03 GP04 GP05 GP06 GP07
Rated Current A 6 15 15 20 20
25 40 15
Breaker
Rated Residual Action
Current mA
30 30 30 30 30
30 30 30
Fuse A 7 15 15 20 20
25 40 15
Power Cord （mm
2
） 3×1.5 3×2.5 3×2.5 3×2.5 3×2.5 3×4 3×6 5×2.5
Signal cable （mm
2
） 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5 3×0.5
