Gardena Powermax 42 e - Page 5

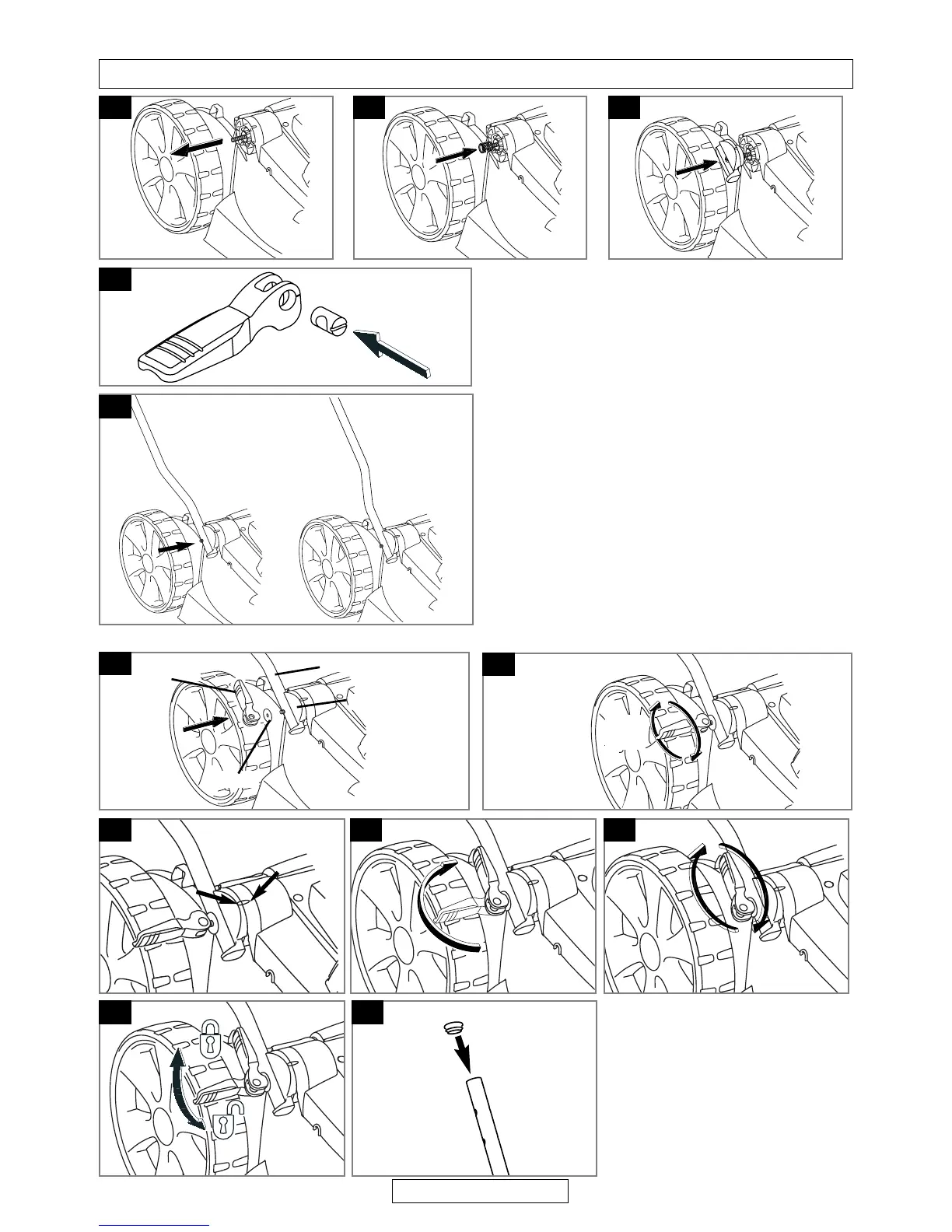

Assembly of Lower Handles to Lawnmower
C1 C2 C3
1. Pull the lower handle bolt until it locks into
position as illustrated in fig C1.
2. Place the Spring over the Bolt (C2)
3. Insert the Pivot Block on to the Bolt (C3)
Repeat for the other side.
4. Insert the Barrel Nut into the Cam Lock as
illustrated in fig D1.
5. Ensuring the lower handle is in the correct position
(D2), insert the Lower Handle on to the bolt until it
is firmly fitted into the pivot block.
6. Place the Washer and Cam Lock on to the Bolt
(D3) and turn the Cam Lock 3 times clockwise, as
illustrated in fig D4.
7. Ensuring the raised markings on the Pivot
Block and the deck are aligned (D5), fold
down the Cam Lock towards the Handle as
illustrated in fig D6, and continue to turn
clockwise (D7) until tightened.
8. The Cam Lock can be unlocked and locked
as illustrated in fig D8.
Repeat for the other side.
9. Insert the two Lower handle plugs into the top
of each of the Lower handles (D9).
D1
D3
D4
x3
pivot block
lower handle
washer
cam lock
PAGE 4
D2


D7
D8
D6
D5
D9
